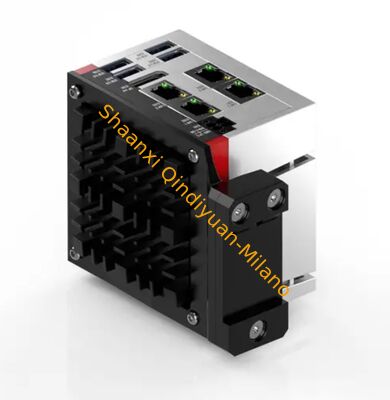

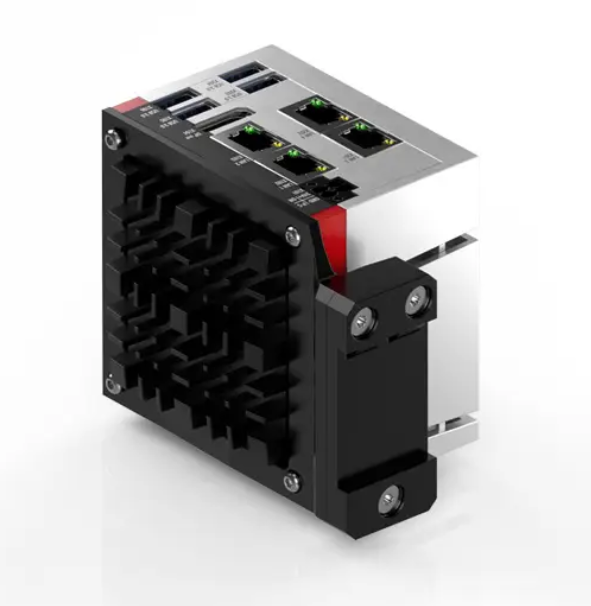

Beckhoff C6025 PLC, EtherCAT, Embedded Controller, Industrial PC
1. Product Overview
The Beckhoff C6025 is an ultra-compact, fanless embedded industrial PC and high-performance PLC controller designed for modern distributed automation and Industry 4.0 applications. Equipped with powerful Intel Celeron / Core i-series processors and running professional TwinCAT 3 automation software, it integrates PLC logic control, multi-axis motion control, real-time data acquisition, edge computing and HMI visualization into a single compact device. As a high-efficiency EtherCAT embedded controller, it supports high-speed EtherCAT fieldbus communication, seamlessly connecting with Beckhoff full-series EtherCAT I/O terminals, servo drives and field sensors. It is widely adopted for compact machinery automation, intelligent manufacturing and industrial data monitoring systems.
2. Product Advantages & Core Features
✅ Fanless Passive Cooling Design No fan and no rotating parts, achieving maintenance-free 24/7 stable operation, effectively avoiding dust accumulation and equipment failure in harsh industrial environments.
✅ High-performance & Low-power Processor Configurable with Intel Celeron and Core i U-series processors, balancing powerful computing performance and low energy consumption, suitable for complex control and edge data processing tasks.
✅ Native High-speed EtherCAT Support Built-in EtherCAT bus protocol, realizing microsecond-level real-time communication, supporting multi-axis synchronous motion control and large-scale distributed I/O expansion.
✅ Triple Gigabit Ethernet Ports 3 independent Gigabit Ethernet interfaces support network isolation, separate industrial control network and office network, compatible with EtherCAT, PROFINET, OPC UA and multiple industrial protocols.
✅ Ultra-compact Industrial Structure Mini body size saves cabinet space, supports standard DIN rail installation, flexible and convenient for equipment integration and on-site debugging.
✅ Expandable Storage & Rich Interfaces Comes with M.2 SSD slot and multiple USB/DisplayPort interfaces, flexible for local data storage, peripheral connection and system function expansion.
✅ Excellent Industrial Adaptability Wide temperature working range, strong vibration resistance and EMC anti-interference ability, stable operation in complex factory working conditions.
3. Technical Specifications
|
Item
|
Parameter
|
|
Product Model
|
Beckhoff C6025 Ultra-compact Embedded Industrial PLC
|
|
Processor Option
|
Intel Celeron 4305UE / Core i3/i5/i7 U-series (up to 4 cores)
|
|
Standard RAM
|
4GB DDR4 (expandable to 8GB)
|
|
Storage
|
M.2 SSD (40GB standard, max 640GB optional)
|
|
Ethernet Port
|
3 × 10/100/1000 Mbps Gigabit Ethernet
|
|
External Interfaces
|
4 × USB3.0, 1 × DisplayPort
|
|
Fieldbus Protocol
|
EtherCAT (native support), PROFINET, OPC UA
|
|
Operating System
|
Windows IoT / Windows Embedded
|
|
Automation Software
|
TwinCAT 3 Runtime
|
|
Power Supply
|
DC 24V Industrial Power
|
|
Mounting Type
|
Standard DIN Rail Mount
|
|
Dimension (W×H×D)
|
82 × 127 × 47 mm (without mounting plate)
|
|
Weight
|
Approx. 620g
|
|
Operating Temperature
|
0℃ ~ +50℃
|
|
Protection Grade
|
IP20 (Cabinet Installation)
|
|
Certification
|
CE, UL Industrial Certification
|
4. Application Industries & Scenarios
Image Tips: Insert on-site equipment application scenario images + warehouse stock display images here
-
Packaging & Printing Machinery: High-speed packaging, labeling and printing equipment automatic control
-
3C Electronic Automation: Precision assembly, testing and sorting equipment control
-
Logistics & Conveying System: Intelligent conveyor line and warehouse handling automation
-
New Energy Equipment: Battery production and energy storage equipment control system
-
Plastic & Rubber Machinery: Injection molding and extrusion equipment intelligent control
-
Industrial IoT & Edge Computing: On-site data collection, analysis and remote monitoring
-
Precision Test Bench: Laboratory automation and industrial detection equipment
-
Textile & Food Machinery: Light industrial intelligent automated production lines
5. Sales Remark (ECER Bottom Description)
- Product Condition: 100% Original Brand New, Factory Sealed, Genuine Warranty - Stock & Delivery: Sufficient stock, fast shipment after order confirmation - Technical Service: Professional TwinCAT configuration, EtherCAT debugging and technical support - Supporting Products: Full range of Beckhoff EtherCAT I/O modules, servo drives and accessories are available
6. ECER Short Description
Beckhoff C6025 Ultra-compact Embedded PLC, fanless industrial PC with native EtherCAT bus and triple Gigabit Ethernet ports. Equipped with high-performance Intel processor and TwinCAT 3 system, ideal for compact machinery automation, motion control and industrial edge computing applications.
