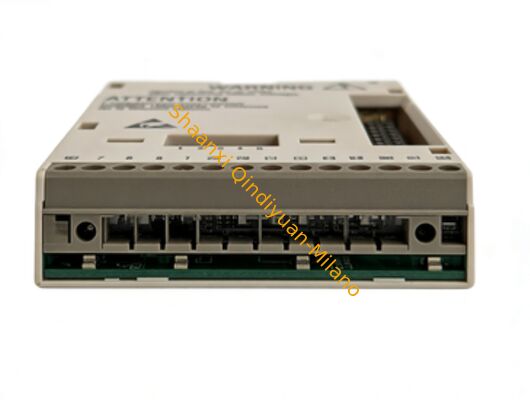

Lenze E82ZBC Standard I/O Function Module for 8200 Vector Frequency Inverters

1
MOQ
Negotiable
Price
Lenze E82ZBC Standard I/O Function Module for 8200 Vector Frequency Inverters
Features Gallery Product Description Chat Now
Features
Specifications
Model: S7-1200
Certifications: CE, UL, RoHS
Integration: SCADA, MES Systems
Communicationprotocols: Modbus, Profibus, Ethernet/IP, OPC UA
Integrationcapability: SCADA, HMI, MES Systems
Highlight:

Lenze E82ZBC I/O module

,

8200 Vector inverter module

,

industrial automation control module
Basic Infomation
Place of Origin: china
Brand Name: LENZE
Model Number: E82ZBC
Document: _info_Lenze_8200_Vector_Man...37.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description

Lenze E82ZBC Standard I/O Function Module

1. Product Overview

The Lenze E82ZBC is a standard operator keypad and I/O function module engineered exclusively for Lenze 8200 Vector frequency inverters. It serves as a dedicated human-machine interface (HMI) and control extension, enabling direct parameterization, real-time operation monitoring, and diagnostic functions for 8200 series drives. The module plugs into the inverter’s AIF interface, supporting hot-swap connection/removal during operation without system shutdown. It acts as a critical bridge between users and Lenze drive systems, simplifying setup, adjustment, and maintenance of industrial frequency inverters.

2. Product Advantages & Core Features

  • Intuitive 8-Button Keypad & Text LCD: Clear text display for parameter values, fault codes, and operational data; 8-button interface enables easy navigation and setpoint input.
  • Parameter Copy & Transfer: Built-in non-volatile memory stores inverter configurations, allowing one-click parameter transfer to multiple 8200 Vector drives for fast commissioning.
  • Secure Access Control: Password protection restricts unauthorized parameter modification, ensuring system safety and configuration integrity.
  • Hot-Swap Capability: Plug-and-play design supports connection/removal while the inverter runs, minimizing downtime for maintenance.
  • Robust Industrial Protection: IP55-rated front panel (IP20 rear) for dust and splash resistance, suitable for control cabinet mounting in harsh industrial environments.
  • Integrated Diagnostics: Real-time fault code display and diagnosis terminal for quick troubleshooting, reducing system downtime.
  • Compact & Cabinet-Friendly: Slim form factor (75×62×23 mm) for easy installation on control cabinet doors or panels.

3. Technical Specifications

表格



Item Specification
Model E82ZBC
Compatible Inverter Series Lenze 8200 Vector Frequency Inverters
Part Number 00417192
Display Text-based LCD
Keypad 8-button navigation & control
Memory Non-volatile (parameter backup/transfer)
Protection Class IP55 (front), IP20 (rear)
Operating Voltage 24 VDC (from inverter AIF interface)
Insulation Voltage 50 VAC
Operating Temperature -10°C to +60°C
Storage Temperature -25°C to +60°C
Humidity ≤85% RH (non-condensing)
Dimensions (L×W×H) 75 × 62 × 23 mm
Weight 0.2 kg
Mounting Control cabinet door/panel mounting

4. Application Industries & Scenarios

Applicable Industries

  • Factory Automation
  • Material Handling (Conveyors, Cranes)
  • Packaging Machinery
  • Textile Machinery
  • Food & Beverage Processing
  • Water Treatment
  • HVAC Systems
  • General Industrial Drive Control

Application Scenarios

  1. Inverter Parameterization & Setup

    Used in control cabinets to configure Lenze 8200 Vector inverters, set motor parameters, and define control logic for production lines.
  2. Real-Time Operation Monitoring

    Monitors drive status (speed, current, voltage) and process data in conveyor systems, cranes, and hoists with frequent start/stop cycles.
  3. Fault Diagnosis & Maintenance

    Displays real-time fault codes and enables quick troubleshooting for packaging, textile, and food processing machinery, minimizing unplanned downtime.
  4. Mass Production Commissioning

    Transfers standardized parameter sets to multiple 8200 Vector drives in batch production, ensuring consistent performance across assembly lines.
