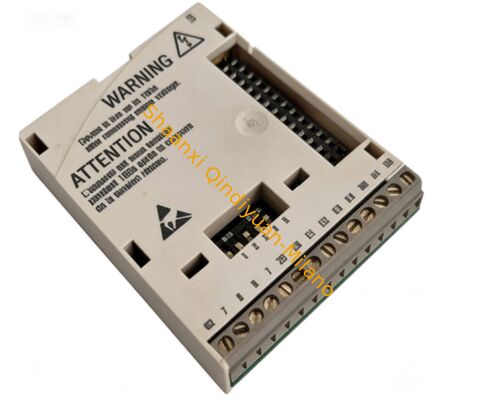

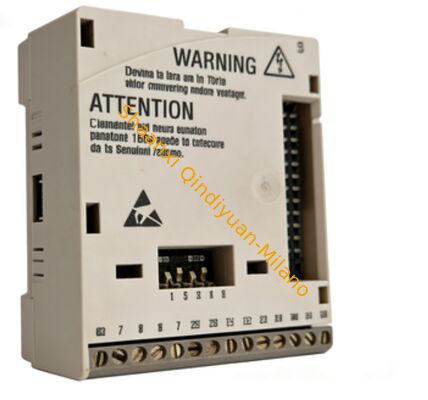

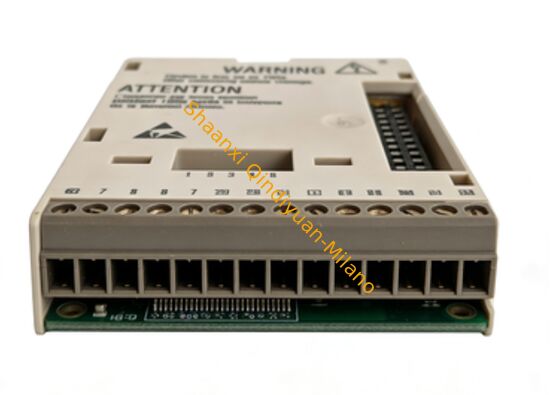

Lenze E82ZAFCC010 Standard I/O Function Module

1. Product Overview

2. Product Advantages & Core Features

• CANopen Protocol Compliance: Supports DS-301/DS-402 profiles, enabling NMT network management, SDO parameter access, and PDO real-time data transmission.
• High-Speed Communication: Ensures fast and reliable data exchange for multi-axis synchronization, speed control, and diagnostic data logging.
• Compact & Lightweight: Ultra-slim design (65 × 51 × 14 mm, 30 g) for easy installation in limited control cabinet space.
• Plug-and-Play Integration: Directly plugs into the 8200 Vector inverter’s expansion slot for quick setup without complex wiring.
• Robust Industrial Design: IP20 protection class, suitable for standard industrial control cabinet environments.
• Distributed Control Support: Enables centralised monitoring and parameter adjustment of multiple drives in complex automation systems.
• Diagnostic & Maintenance: Facilitates real-time fault diagnosis and status monitoring, reducing unplanned downtime.

3. Technical Specifications

4. Application Industries & Scenarios

Applicable Industries

• Factory Automation
• Material Handling (Conveyors, Cranes)
• Packaging Machinery
• Textile Machinery
• Food & Beverage
• Water Treatment
• HVAC Systems
• General Industrial Drive Control

Application Scenarios

1. Multi-Axis Synchronisation




   Used in packaging and textile machinery to synchronise multiple 8200 Vector inverters via CANopen, ensuring precise speed and position control.
2. Centralised Drive Monitoring




   Integrated into factory automation lines to enable PLC/HMI centralised monitoring of inverter status, speed, current, and fault codes.
3. Distributed Control Systems




   Applied in large-scale material handling and water treatment plants for distributed drive control and data exchange between scattered drives and the main controller.
4. Smart Factory Networking




   Supports Industry 4.0 applications by connecting 8200 series inverters to CANopen-based industrial networks for data acquisition and remote maintenance.
