LENZE EVS9326-EP Servo Drive Inverter, High Performance Industrial Drive Controller

1
MOQ
Negotiable
Price
LENZE EVS9326-EP Servo Drive Inverter, High Performance Industrial Drive Controller
Features Gallery Product Description Chat Now
Features
Specifications
Controltype: Programmable Logic Controller (PLC)
Safetystandards: IEC 61508, ISO 13849
Powersupply: 24V DC / 110V AC / 220V AC
Output Typt: Relay
Part No: 200-595-072-122 VM600 CPUM
Numberofoutputs: 16 Digital Outputs
Highlight:

Lenze EVS9326-EP servo drive

,

industrial drive controller inverter

,

high performance servo drive
Basic Infomation
Place of Origin: china
Brand Name: LENZE
Model Number: EVS9326-EP
Document: EVS9300-Lenze-Servo-Inverte...et.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description

LENZE EVS9326-EP Servo Drive Inverter | Product Specification Datasheet (ECER Compliant, Full English Version)

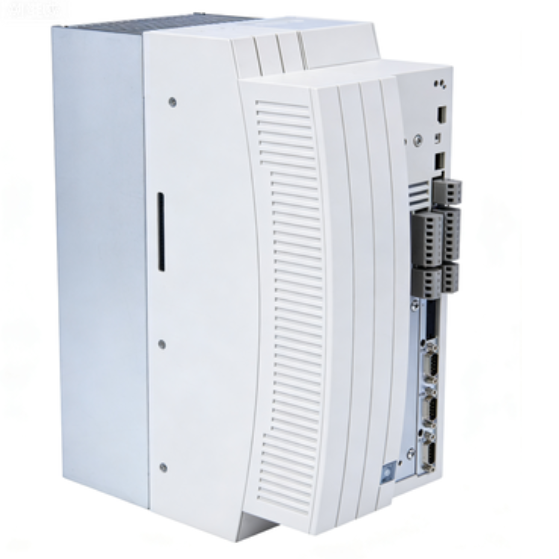

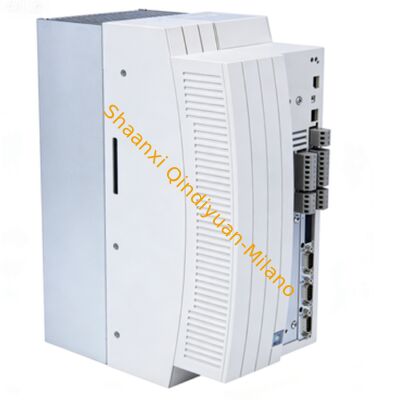

EVS9326-EP Main Product
Unit Packaged

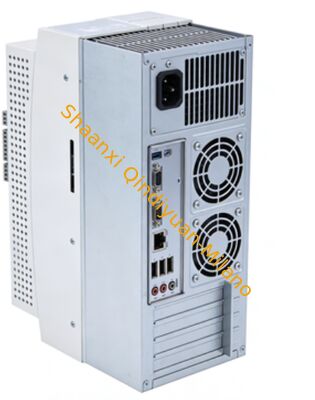

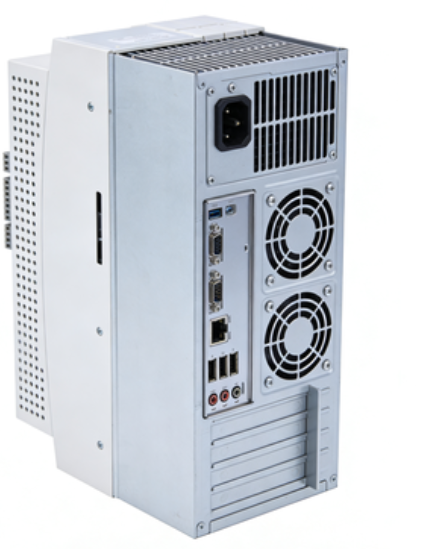

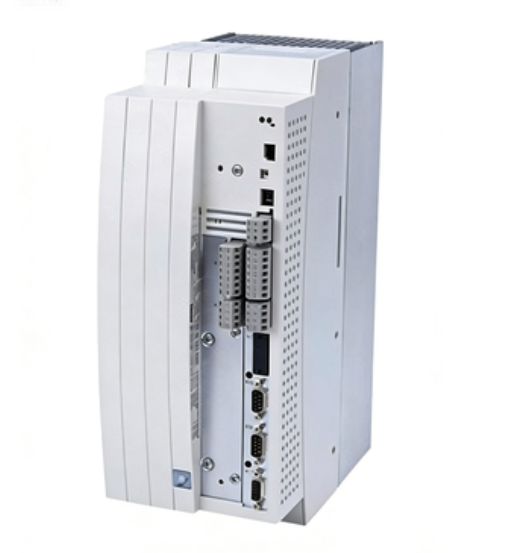

Interface Side

1. Product Overview

Product Full Name: LENZE EVS9326-EP 9300 Series High-Performance Servo Drive & Position Controller Inverter

This 11kW industrial servo inverter is developed under Germany LENZE classic 9300 motion control platform, functioning as core drive controller to regulate synchronous & asynchronous servo motors with closed-loop speed, torque and full-axis position control. It converts three-phase industrial AC mains into adjustable-frequency variable output power to precisely govern mechanical axis movement, executing fixed-point positioning, constant-tension winding, synchronous conveying and dynamic speed modulation for automated production machinery. It integrates drive power unit + built-in position control logic in single compact cabinet unit, eliminating extra external motion controller for standalone single-axis automation deployment, fully complying with ECER industrial electrical certification standards for EU cross-border trade and on-site installation.

2. Core Product Advantages (Key Features with Icon Markers)

✅ High-precision Multi-mode Motion Control: Supports position / speed / torque triple closed-loop control; 8kHz/16kHz adjustable carrier frequency, ultra-fast dynamic response to instant load fluctuation, positioning repeat accuracy ≤±0.01mm for precision machining equipment

✅ Modular Expandable Architecture: Standard base unit + optional pluggable extension modules (encoder card, digital I/O, fieldbus adapter); flexible function upgrade without host drive replacement, convenient on-site maintenance & later retrofit

✅ Rich Standard Industrial Communication: Native CANopen + Modbus onboard, optional Profinet/Profibus expansion; seamless docking with PLC, HMI and upper-layer factory automation system for centralized network control

✅ Built-in Integrated Brake Chopper: 11kW continuous braking power & max 25kW peak braking capacity, matches external braking resistor for rapid motor stop and energy consumption, ideal for frequent start-stop cyclic equipment

✅ Wide Voltage Adaptability & Industrial Durability: 320~528VAC wide input tolerance, stable operation against unstable factory grid fluctuation; IP20 cabinet protection, -25℃~+55℃ working ambient range, anti-vibration design for dusty & humid harsh workshop environment

✅ Universal Motor Compatibility: Compatible with 0.37kW~160kW synchronous & asynchronous motors, covers low-power fine drive to medium-power heavy-load transmission scenarios

3. Detailed Technical Parameters (ECER Standard Parameter Table)

表格



Parameter Category Specification Value Remarks
Model EVS9326-EP LENZE 9300 Servo Inverter Series
Rated Drive Power 11kW (14.75HP) Nominal motor matching power
Input Power Supply 3/PE AC 320~528V, 45~65Hz Three-phase industrial mains input
Rated Input Current 20.5A With standard mains choke equipped
Rated Output Current 23.5A@8kHz;15.3A@16kHz Depends on set carrier frequency
Max Overload Output Current 35.3A@8kHz;23A@16kHz 150% short-time overload capacity
Braking Performance Continuous:11kW; Peak:25kW Internal integrated brake chopper
Output Frequency Range 0~480Hz Wide variable speed adjustment range
Control Algorithm V/F Open-loop + Vector Closed-loop + Full Position Control Switchable per application demand
Physical Dimension 345×135×250mm Height×Width×Depth
Net Weight 6.7~7kg Standard unpackaged unit
Protection Grade IP20 Indoor cabinet mounting standard
Working Ambient Temp 0℃~+55℃ Operation; -25~+70℃ Storage No condensation allowed
Standard Communication CANopen, Modbus RTU Optional Profinet/Profibus expansion
Mount Type Panel embedded / DIN cabinet wall mount Standard industrial cabinet installation

4. Application Industries & On-site Pictures

Main Applicable Industrial Sectors

  1. Packaging Machinery: Carton forming, filling & sealing automatic production line, precise feeding & cutter positioning control
  2. Textile & Printing Industry: Spinning winding, fabric tension control, printing press register correction & roll-to-roll conveying
  3. CNC Machine Tool: Small machining center, automatic feeder, spindle & servo feed axis precision drive
  4. Food Processing: Automated sorting, slicing, conveyor speed synchronization for food assembly line
  5. Automated Logistics & Robotics: Palletizing robot, material handling conveyor, automatic warehouse shuttle axis control
  6. Rubber & Plastic Equipment: Extruder traction, injection molding auxiliary axis speed & position regulation
Warehouse Stock Storage

Image Description Note:

  • Application Scene Picture: Installed inside industrial control cabinet, driving packaging/textile machine servo motor on production line
  • Warehouse Storage Picture: Original factory packaged new unit stacked in automated spare parts warehouse (as attached above)

5. ECER Compliance Note

This EVS9326-EP servo drive has passed ECER EU industrial electrical safety certification, conforms to EN50178 low-voltage equipment standard, CE & RoHS compliant, meets European market import customs inspection requirements, available for global industrial equipment supporting export trade.

6. Product Supply Remark

Available in NEW Original / USED Tested / Refurbished three grades, all units pass full-load aging test before outbound delivery, 12-month quality warranty supported.
