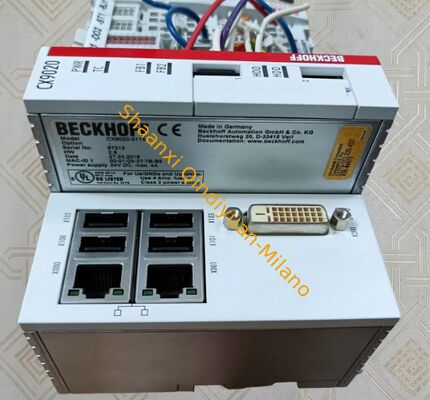

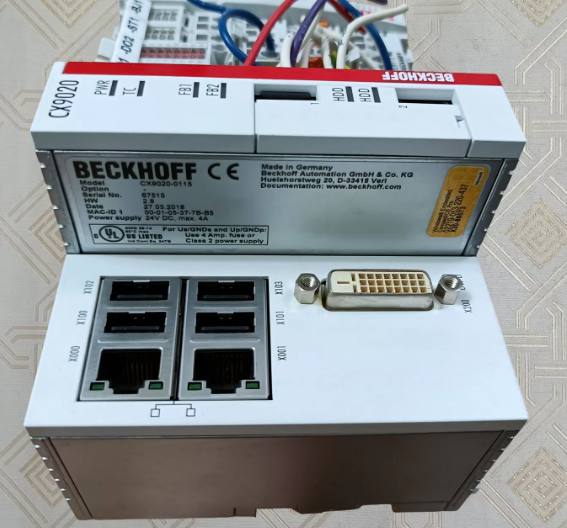

Beckhoff CX9020 PLC DIN Rail Embedded PC Compact Automation PLC

The Beckhoff CX9020 is a cost effective DIN rail mounted embedded PLC PC designed for entry level and small medium automation systems. Equipped with built in EtherCAT master function and industrial grade processor, it runs TwinCAT 3 full automation runtime under Windows Embedded operating system.

This compact controller serves as the core control unit of automated machinery. It completes IEC 61131 3 standard PLC logic programming, real time multi axis motion control, sensor signal acquisition and actuator output control. It connects EtherCAT servo drives, EL series I/O terminals, HMIs and upper MES systems through multiple Ethernet ports. With small body size and fanless cooling structure, it is the ideal all in one control solution for equipment with limited cabinet installation space and medium low computing load.

• Built in independent EtherCAT master interface, supports microsecond level synchronous motion control
• Fanless passive heat dissipation design, no rotating parts, 24 hour long term stable operation without maintenance
• Ultra slim DIN rail mounting housing, greatly saves internal space of electrical control cabinet
• Complete TwinCAT 3 software compatibility, supports all standard IEC 61131 3 programming languages
• Multiple separated Gigabit Ethernet ports, independently used for fieldbus and office data communication
• Wide range 24 V DC industrial power input, adapts to unstable voltage fluctuation in factory workshops
• Expandable digital and analog I/O via Beckhoff EL series EtherCAT terminal modules
• Compact lightweight design, convenient bulk transportation and warehouse storage management
• Wide temperature working range, anti shock and anti vibration for harsh industrial production environments
• Pre installed embedded Windows system, compatible with HMI monitoring, data recording and third party industrial software

1. Automatic packaging and filling machinery
2. 3C electronic small assembly production lines
3. Food processing and sorting equipment
4. Plastic molding auxiliary automation machines
5. Mini intelligent logistics conveying systems
6. Solar photovoltaic small processing equipment
7. Textile printing and embroidery automation devices
8. Small precision testing and inspection stations

• Small standalone machine integrated control cabinet main controller
• Low speed multi axis motion control automation equipment
• Distributed EtherCAT I/O collection and signal control system
• Compact cabinet automation solutions with limited installation space
• Production equipment requiring real time data upload to MES management system

1. Application Scene Images

   Small packaging machine control cabinet, electronic assembly workshop automation station, EtherCAT bus production line connection, compact electrical cabinet PLC installation

2. Warehouse Stock Images

   Beckhoff CX9020 bulk storage warehouse shelf, DIN rail embedded PLC finished goods inventory, industrial controller stock storage area
