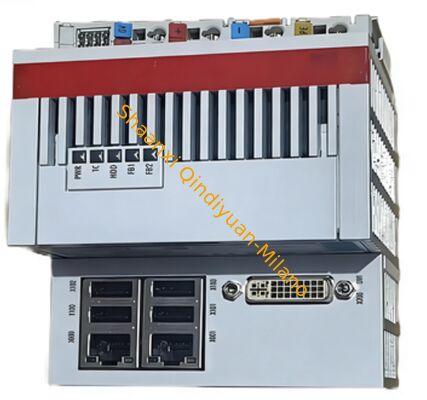

Beckhoff CX8090 PLC with DIN Rail Mounting Ethernet/IP Communication and ARM9 Processor

1 pcs
MOQ
Negotiable
Price
Beckhoff CX8090 PLC with DIN Rail Mounting Ethernet/IP Communication and ARM9 Processor
Features Gallery Product Description Chat Now
Features
Specifications
Mounting_Type: DIN Rail
Part No: MVI56E-MCM
Operating_Temperature_Range: -20°C To 60°C
Operatingtemperaturerange: -20°C To 60°C
Safetyfeatures: Watchdog Timer, Fault Diagnostics
Displaytype: LCD Or LED Indicators
Powersupply: 24V DC Or 110/220V AC
Productname: Programmable Logic Controller
Communicationprotocols: Ethernet/IP, Modbus, Profibus, DeviceNet
Power Supply Voltage: AC240-360V.
Mpu Points: 12 (8DI + 4DO)
Mountingtype: DIN Rail Or Panel Mount
Input Points: 36 Points.
Number_of_Inputs: 14
Safetystandards: IEC 61508, ISO 13849
Highlight:

DIN Rail Mounting PLC

,

Ethernet/IP Communication Programmable Logic Controller

,

ARM9 Processor Beckhoff CX8090
Basic Infomation
Brand Name: Beckhoff
Model Number: CX8090
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 pcs
Product Description
Beckhoff CX8090 Programmable Logic Controller
The Beckhoff CX8090 PLC delivers high-performance industrial automation control with advanced connectivity and robust design for demanding manufacturing environments.
Core Hardware Specifications
Parameter Specification
Processor ARM9, 400 MHz single-core
Memory 64 MB DDR2 RAM (non-expandable)
Storage 512 MB microSD card (expandable to 8 GB)
Real-time Clock Battery-backed RTC with replaceable battery
Power Protection Integrated 1-second UPS with 1 MB persistent data storage
Power Consumption Maximum 3 W
Power Supply 24 V DC (-15%/+20%)
Dimensions 64 mm × 100 mm × 73 mm (W × H × D)
Weight Approximately 180 g
Protection Rating IP20, DIN rail mounting
Interfaces & Communication
  • Ethernet: 2 × RJ45 ports (10/100 Mbit/s, switched)
  • USB: 1 × USB Device (inside front cover), 1 × USB Host
  • I/O Bus: Automatic identification of E-bus/K-bus terminals (KL/KM series)
  • Protocol Support: Real-time Ethernet, ADS, Modbus TCP, TCP/IP, UDP/IP
  • Programming: TwinCAT 2 PLC with IEC 61131-3 language support
  • Web Functionality: Web visualization and remote management capabilities
Environmental Specifications & Certifications
Operating Temperature: 0°C to +55°C
Storage Temperature: -25°C to +85°C
Humidity: 95% (non-condensing)
Certifications: CE, UL, ATEX, IECEx, cFMus
Typical Applications
PLC control for small equipment and production lines
Distributed I/O data acquisition and local logic processing
Modbus TCP industrial network communication
Simple motion control with TwinCAT automation software
