Home /Products/Industrial Control Automation/INOVANCE SV660P SV660PS7R6I,1.0kW,3PH AC220V(±15%),7.6A,Modbus RTU/Pulse,1.2kHz,23bit Absolute,IP20

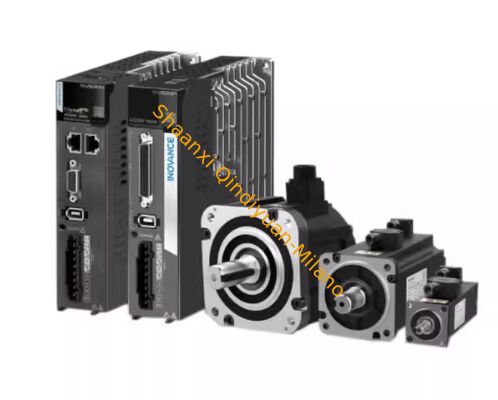

INOVANCE SV660P SV660PS7R6I,1.0kW,3PH AC220V(±15%),7.6A,Modbus RTU/Pulse,1.2kHz,23bit Absolute,IP20

1pcs
MOQ
Negotiable
Price
INOVANCE SV660P SV660PS7R6I,1.0kW,3PH AC220V(±15%),7.6A,Modbus RTU/Pulse,1.2kHz,23bit Absolute,IP20
Features Gallery Product Description Chat Now
Features
Specifications
Numberofinputs: 16 Digital Inputs
Powerconsumption: 10 W
Compatibility: SCADA Systems, HMI Panels
Connectivity: Wi-Fi, Ethernet, Serial
Communicationprotocols: Modbus, Profibus, Ethernet/IP, OPC UA
Mountingtype: DIN Rail
Actual Value: Negotiabled Price
Humidityrange: 5% To 95% Non-condensing
Powersupply: 24V DC / 110-240V AC
Programminglanguage: Ladder Logic, Structured Text
Output Points: 16DO
Outputtype: Digital And Analog Outputs
Controltype: Programmable Logic Controller (PLC)
Numberofoutputs: 16 Digital Outputs
Integrationcapability: SCADA, HMI, MES Systems
Highlight:

INOVANCE SV660P servo drive

,

1.0kW 3PH AC220V servo drive

,

Modbus RTU servo drive IP20
Basic Infomation
Place of Origin: China
Brand Name: INOVANCE
Model Number: SV660PS7R6I
Document: INOVANCE-SV660-SERVO-ETHERC...20.pdf
Payment & Shipping Terms
Delivery Time: 1WEEK
Payment Terms: T/T
Supply Ability: 10PCS 1WEEK
Product Description
Brand Product Series Model Type Rated Power Rated Input Voltage Rated Output Current Communication Protocol Speed Loop Bandwidth Encoder Resolution Protection Class Operating Temperature Storage Temperature Mounting Type Net Weight Dimensions(WxHxD) Core Features
Inovance SV660P SV660PS1R6I 0.2kW 1PH AC220V(±15%) 1.6A Modbus RTU/Pulse 1.2kHz 23bit Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 0.55kg 40x160x150mm Stune Auto-tuning; Vibration Suppression; STO SIL3
Inovance SV660P SV660PS2R8I 0.4kW 1PH AC220V(±15%) 2.8A Modbus RTU/Pulse 1.2kHz 23bit Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 0.6kg 40x160x150mm Built-in Dynamic Brake; 625kHz Current Sampling
Inovance SV660P SV660PS5R5I 0.75kW 1PH AC220V(±15%) 5.5A Modbus RTU/Pulse 1.2kHz 23bit Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 0.8kg 50x160x173mm 5-digit LED Display; EtherNet Local Debug
Inovance SV660P SV660PS7R6I 1.0kW 3PH AC220V(±15%) 7.6A Modbus RTU/Pulse 1.2kHz 23bit Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 1.0kg 60x180x180mm External Brake Resistor Port; High Rigidity
Inovance SV660N SV660NS1R6I 0.2kW 1PH AC220V(±15%) 1.6A EtherCAT 3kHz 23bit Multi-turn Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 0.6kg 40x160x150mm 125μs Sync Cycle; 15ns Sync Error
Inovance SV660N SV660NS2R8I-FH 0.4kW 1PH AC220V(±15%) 2.8A EtherCAT 3kHz 23bit Multi-turn Absolute IP54 0~50℃ -20~70℃ 35mm DIN Rail 0.7kg 45x165x155mm High Protection; Dustproof; Anti-corrosion Coating
Inovance SV660N SV660NS5R5I-FS 0.75kW 1PH AC220V(±15%) 5.5A EtherCAT 3kHz 23bit Multi-turn Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 0.85kg 50x160x173mm Safety Type; STO SIL3; Dual EtherCAT Port
Inovance SV660N SV660NT3R5I 1.0kW 3PH AC380V(±15%) 3.5A EtherCAT 3kHz 23bit Multi-turn Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 1.2kg 60x180x180mm 380V High Voltage; 300 Nodes Sync
Inovance SV660F SV660FS2R8I 0.4kW 1PH AC220V(±15%) 2.8A Profinet 3kHz 23bit Multi-turn Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 0.65kg 40x160x150mm Profinet IO; 8388608P/R Resolution
Inovance SV660F SV660FT5R4I 1.5kW 3PH AC380V(±15%) 5.4A Profinet 3kHz 23bit Multi-turn Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 1.5kg 70x190x190mm High Power Density; Lithium Battery Application
Inovance SV660ND SV660NDS2R8I 2×0.4kW 1PH AC220V(±15%) 2.8A×2 EtherCAT 3kHz 23bit Multi-turn Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 1.0kg 80x180x180mm Dual-axis Drive; 30% Space Saving; Zero-distance Mount
Inovance SV660ND SV660NDS5R5I-FS 2×0.75kW 1PH AC220V(±15%) 5.5A×2 EtherCAT 3kHz 23bit Multi-turn Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 1.2kg 90x190x190mm Dual-axis Safety; STO SIL3; One-click Tuning
