Home /Products/Industrial Control Automation/Allen-Bradley CompactLogix 5370 L2 1769-L24ER-QB1B 750 KB 16 x 24V DC (Sink) 24V DC (Isolated, Class 2/SELV) 4 Modules 1GB SD (Max 2GB)

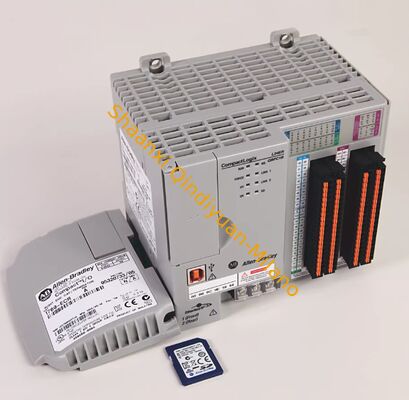

Allen-Bradley CompactLogix 5370 L2 1769-L24ER-QB1B 750 KB 16 x 24V DC (Sink) 24V DC (Isolated, Class 2/SELV) 4 Modules 1GB SD (Max 2GB)

1PCS
MOQ
Negotiable
Price
Allen-Bradley CompactLogix 5370 L2 1769-L24ER-QB1B 750 KB 16 x 24V DC (Sink) 24V DC (Isolated, Class 2/SELV) 4 Modules 1GB SD (Max 2GB)
Features Gallery Product Description Chat Now
Features
Specifications
Operatingtemperaturerange: -20°C To 60°C
Integrationcapability: Compatible With MES, ERP Systems
Communication Protocol: Modbus, Ethernet/IP, Profibus
Inputvoltage: 24V DC / 110V AC / 220V AC
Programminglanguages: Ladder Logic, Function Block Diagram, Structured Text
Connectivityoptions: Ethernet, RS-485, Wireless
Responsetime: Milliseconds To Seconds
Controltype: Programmable Logic Controller (PLC), Distributed Control System (DCS), SCADA
Softwarecompatibility: Supports SCADA And HMI Software
Application: Manufacturing, Process Control, Robotics
Integration: SCADA, MES Systems
Safetystandardscompliance: IEC 61508, ISO 13849
Industry: Manufacturing
Mpu Points: 12 (8DI + 4DO)
Certifications: CE, UL, RoHS
Highlight:

Allen-Bradley CompactLogix 5370 L2 PLC

,

1769-L24ER-QB1B industrial controller

,

CompactLogix 5370 24V DC PLC
Basic Infomation
Place of Origin: USA
Brand Name: Allen-Bradley
Model Number: 1769-L24ER-QB1B
Document: 1769-sg001_-zc-p~o.pdf
Payment & Shipping Terms
Delivery Time: 1WEEK
Payment Terms: T/T
Supply Ability: 1PCS 1WEEK
Product Description
Product Specifications Comparison
Specification Product 1 (1769-L24ER-QB1B) Product 2 (1769-L24ER-QBFC1B)
Brand Allen-Bradley Allen-Bradley
Product Series CompactLogix 5370 L2 CompactLogix 5370 L2
Part Number 1769-L24ER-QB1B 1769-L24ER-QBFC1B
Controller Memory 750 KB 750 KB
Integrated DI 16 x 24V DC (Sink) 16 x 24V DC (Sink)
Integrated DO 16 x 24V DC (Source) 16 x 24V DC (Source)
Integrated AI - 4 x Universal
Integrated AO - 2 x Universal
Power Supply 24V DC (Isolated, Class 2/SELV) 24V DC (Isolated, Class 2/SELV)
Communication Ports 2x RJ45 (EtherNet/IP, DLR) 2x RJ45 (EtherNet/IP, DLR)+1x USB
Max Local I/O Expansion 4 Modules 4 Modules
Max Ethernet/IP Nodes 8 8
Max TCP Connections 120 120
Memory Card 1GB SD (Max 2GB) 1GB SD (Max 2GB)
Operating Temperature 0~60℃ 0~60℃
Storage Temperature -40~85℃ -40~85℃
Relative Humidity 5~95% RH (Non-condensing) 5~95% RH (Non-condensing)
Mounting Type 35mm DIN Rail / Panel Mount 35mm DIN Rail / Panel Mount
Isolation Voltage 30V DC (Continuous) 30V DC (Continuous)
Key Certifications UL,CE,ATEX,IECEX,CCC,RCM UL,CE,ATEX,IECEX,CCC,RCM
Core Features DLR Network Resiliency; Open Socket Capability; USB Programming Port; Conformal Coating Optional Premium Conformal Coating; AI for Thermocouple/RTD; AO for 4-20mA/0-10V; On-Machine Application Support
Net Weight 0.95 lb (0.43kg) 1.1 lb (0.5kg)
Dimensions (HxWxD) 118mm x 140mm x 105mm 118mm x 140mm x 105mm
