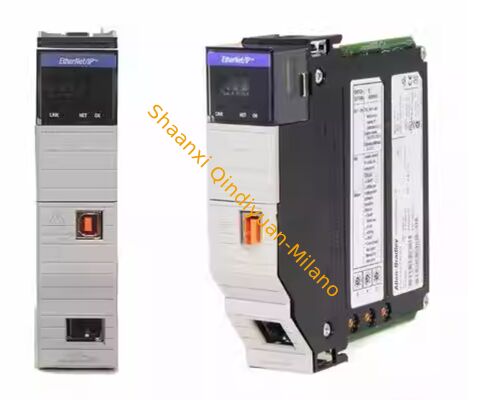

Allen Bradley 1756-EN2T PLC 256 Logix Connections ControlLogix Module

1 pcs
MOQ
Negotiable
Price
Allen Bradley 1756-EN2T PLC 256 Logix Connections ControlLogix Module
Features Gallery Product Description Chat Now
Features
Specifications
Color: Normal
Power_Consumption: 5 W
Condition: New Original With Sealed
Input Points: 36DI
Part Type: Sysmac CPM2A
Output Points: 20
Number_of_Outputs: 10
Supply Voltage Type: AC
Number_of_Inputs: 14
Power Supply Voltage: AC240-360V.
Part No: 750-843
Points: 40 (24DI+16DO)
CPU_Speed: 100 MHz
Application: Oil And Gas Factory
Actual Price: Based On Offer
Highlight:

AB 1756-EN2T

,

Allen Bradley 1756-EN2T

,

allen bradley 1756 controllogix
Basic Infomation
Brand Name: Allen‑Bradley
Model Number: 1756-EN2T
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

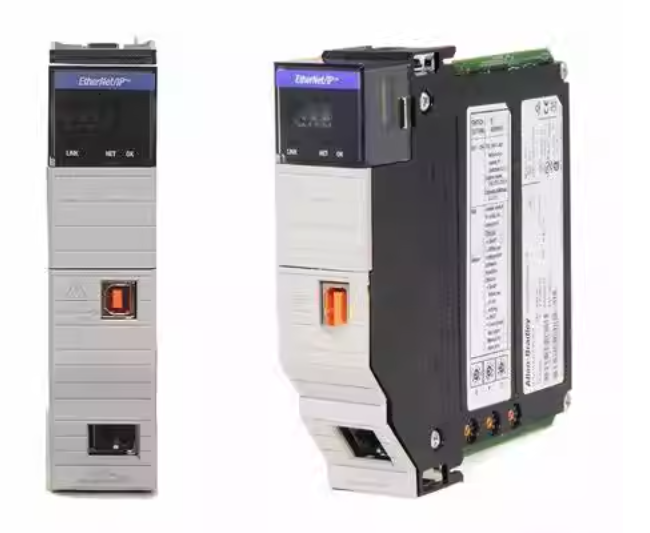

Allen-Bradley 1756-EN2T PLC Communication Module
Core Specifications
Parameter Specification
Brand / Series Allen-Bradley ControlLogix
Product Type EtherNet/IP Communication Bridge Module
Network Interface 1 × RJ45 (10/100 Mbps Auto-sensing)
USB Interface 1 × USB 1.1 (for local configuration/diagnostics)
Maximum Connections Logix Connections: 256; TCP/IP Connections: 128
Power Supply 5.1V DC: 1.0-1.2A; 24V DC: 3mA; Power Consumption approx. 6.2W
Isolation Voltage 30V DC (continuous, Ethernet/USB isolated from backplane)
Operating Environment Temperature: 0-60°C; Humidity: 5-95% (non-condensing); Vibration: 2G; Shock: 30G
Physical Specifications Single-slot module, installable in any ControlLogix Chassis
Supported Protocols EtherNet/IP, CIP, TCP/IP, UDP, SNMP, Web, Telnet
Core Functions and Applications
High-Speed Industrial Ethernet Communication
  • Provides 10/100 Mbps adaptive Ethernet supporting real-time I/O data, message communication, motion control, and time synchronization
  • Supports CIP Safety for simultaneous transmission of safety data, control data, and diagnostic information
High-Capacity Connectivity
  • Supports up to 256 Logix controller connections and 128 TCP/IP connections for complex industrial networks
  • Acts as network bridge between ControlLogix backplane and Ethernet for cross-controller communication
Local Configuration and Diagnostics
  • USB port enables direct local connection configuration without network requirements
  • Built-in LED status lights (OK, NET, LINK) display module and network health in real time
  • Supports SNMP and Web management for remote monitoring and troubleshooting
Typical Application Scenarios
  • Industrial systems requiring high-reliability Ethernet networks
  • Factory automation lines, process control, smart buildings, energy management, and rail transportation
  • Networking with 1756-L7x/L8x controllers, 1756-EN2TR (dual-port/DLR), and 1756-ENBT modules
Model Comparison and Selection Guide
Model Number of Ports Network Characteristics Main Differences
1756-EN2T 1 × RJ45 Single port, basic bridging High cost-performance ratio, suitable for star networks
1756-EN2TR 2 × RJ45 Dual port, supports DLR ring networks Media redundancy, improves network reliability
1756-ENBT 1 × RJ45 Early model, fewer connections Gradually replaced by EN2T
1756-EN2TXT 1 × RJ45 Wide temperature range (-20-50°C) Suitable for extreme environments
Firmware Requirements: Requires configuration with Studio 5000 Logix Designer software.
