Product Title

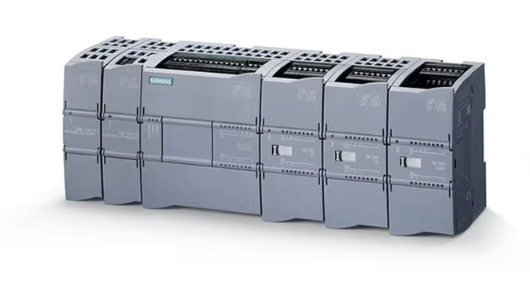

Siemens 6ES7288-1ST40-0AA0 SIMATIC S7-200 SMART CPU ST40, DC24V, 24×24V DC DI,16×24V DC Transistor DO, Compact PLC

Product Description

1. Product Overview

The Siemens 6ES7288-1ST40-0AA0 SIMATIC S7-200 SMART CPU ST40 is a DC/DC/DC compact micro PLC designed for small and medium automation equipment. It is powered by DC 24V (20.4~28.8V), equipped with total 40 onboard I/O points: 24 channels DC24V digital inputs and 16 channels DC24V transistor outputs. Built-in Ethernet port and RS485 Modbus-RTU communication interface, with Micro SD card slot for program backup. Transistor output supports high-speed pulse output to control stepper motors and servo drives.

Note: This model has been phased out by Siemens, successor model: 6ES7288-1ST40-0AA1.

2. Core Advantages & Key Features

✅ Full DC Power Supply & Transistor Output DC24V power input; 16-channel high-speed transistor digital outputs, supporting pulse output for servo and stepper positioning control.

✅ Dual Communication: Ethernet + RS485 Modbus-RTU Ethernet for program download and S7 communication; RS485 Modbus-RTU to connect HMI, VFD and field instruments.

✅ High-speed Pulse Output for Motion Control Supports high-speed pulse output, ideal for simple servo and stepper positioning applications.

✅ Ample Memory with Micro SD Card Slot 40 KB program & data memory. Micro SD card supports program backup, restore and firmware upgrade.

✅ High-speed Counter Function 4 high-speed counters, up to 200 kHz single-phase / 100 kHz A-B phase.

✅ Built-in DC24V Sensor Power Supply Integrated DC24V sensor output, max 300mA for powering field sensors.

✅ Convenient Programming & Diagnosis Programmed by STEP 7-Micro/WIN SMART software, easy online monitoring and fault diagnosis.

✅ CE Certified, IP20 Protection IP20 protection class, CE certification, suitable for global industrial automation projects.

3. Technical Parameters

4. Application Industries & Typical Scenarios

Applicable Industries

• Packaging Machinery
• Conveying & Material-handling Equipment
• Food Machinery
• Water-treatment Equipment
• Textile Auxiliary Machinery
• Small automated production lines

Typical Equipment

Positioning control equipment, small assembly machine, packing equipment, conveyor system, stepper/servo drive control, pump & fan automation.

5. Packing & Logistics

• Original brand-new, individual export carton
• Shock-proof & moisture-proof export packaging
• Ready stock available, support DHL / FedEx / sea freight for worldwide shipment
