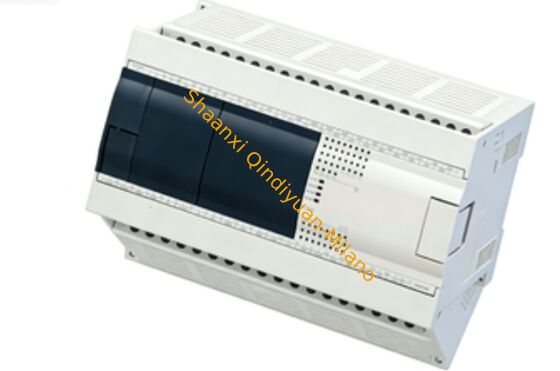

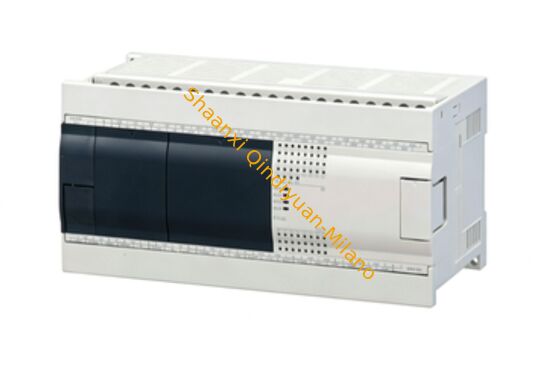

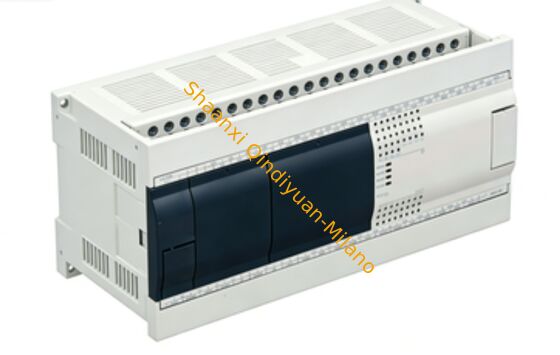

The FX3U-80MR/ES-A is a high-capacity compact main base unit from Mitsubishi MELSEC-FX3U 3rd generation micro PLC series, serving as the core logic controller for medium-sized small automation systems. It integrates built-in CPU, power supply, memory and complete digital I/O terminals in one compact body. Powered by universal AC 100–240V mains, it carries 40 DC 24V sink/source compatible digital inputs and 40 mechanical relay outputs. The unit executes ladder logic, arithmetic, high-speed counting, pulse positioning and serial communication tasks, supporting flexible I/O expansion, analog modules and fieldbus adapters. With reliable relay contact switching for mixed AC/DC field loads, it delivers cost-effective all-in-one control for packaging, conveyor, textile and general machinery without separate power and CPU modules.

⚡ Universal Wide-Voltage AC Power Supply 100–240 VAC single-phase input adapts to global factory power grids, eliminates transformer conversion for cross-border equipment. 📊 Abundant Built-in I/O Resource 40 DC24V digital inputs + 40 relay outputs (total 80 I/O points) meets medium-scale machine logic demands, reduces extra expansion module investment. 🔘 Versatile Relay Output Interface Mechanical relay contacts support both AC and DC loads (max 2A per point, 8A common per 4-point group), suitable for solenoid valves, contactors, indicator lamps. 🚀 Ultra-Fast Basic Instruction Execution 0.065 μs per basic LD instruction; supports high-speed counter, pulse output positioning and floating-point arithmetic for precision motion control. 🧩 Powerful Expandable Architecture Max total 256 local I/O after adding extension modules; supports analog, temperature, positioning and communication special function blocks. 💾 Large Program & Data Storage 64K steps built-in program memory; backup lithium battery retains registers, timers and counter data during power outage. 📡 Multi-Channel Built-in Communication Standard RS-422 programming port; expandable RS-485, RS-232, Ethernet and CC-Link for HMI, inverter and upper computer networking. 🛡️ Complete Industrial Self-Diagnosis Integrated power detection, battery low alarm, program error, I/O short-circuit diagnosis LED indicators for fast on-site troubleshooting. 🌡️ Rugged Compact Cabinet Design IP10 protection class, 0°C ~ 55°C stable operating temperature; lightweight compact structure saves control cabinet installation space. 🏅 Global Authorized Certifications CE, UL, cUL, RoHS, KC certified for worldwide machinery export and industrial application compliance.

Woodworking equipment, small machine tools, plastic injection auxiliary machinery, automated assembly stations.

Carton filling, labeling, sealing machines; multi-section production line conveyors, palletizing auxiliary control.

Spinning looms, yarn winding machines, fabric cutting and tension control equipment.

Small pumping stations, wastewater dosing control, water level monitoring interlock systems.

Bottle sorting conveyors, mixing agitators, small filling and capping production lines.

Warehouse sorting conveyors, small HVAC ventilation interlock control, light material handling equipment.

Original Factory Packaging: Anti-static moisture-proof Mitsubishi branded carton, equipped with operation manual, terminal wiring labels and backup lithium battery, unique serial number for full lifecycle traceability. Storage Environment: Dry, dust-free enclosed warehouse; avoid direct sunlight, corrosive gas and condensation; storage temperature -20°C ~ +60°C, relative humidity ≤85% RH non-condensing. Inventory Management: FEFO (First Expired First Out) stock sorting rule; standard 12-month manufacturer warranty, serial number archived for after-sales maintenance tracking. Handling & Transit Rules: Keep vertical during storage and shipping; avoid heavy impact, severe vibration and long-term damp exposure; secure packaging for sea and land cross-border freight.
