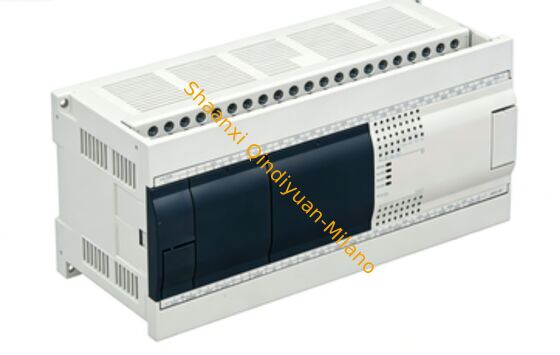

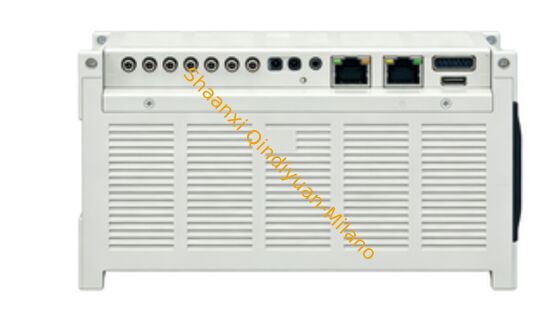

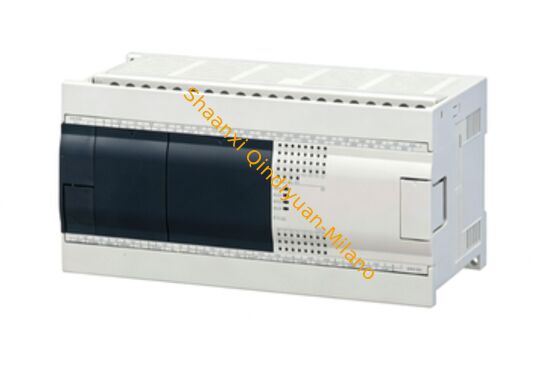

MITSUBISHI FX3U-32MT/ES-A FX3U Logic Module 16 Inputs 16 Outputs Relay Computer

1
MOQ
Negotiable
Price
MITSUBISHI FX3U-32MT/ES-A FX3U Logic Module 16 Inputs 16 Outputs Relay Computer
Features Gallery Product Description Chat Now
Features
Specifications
Application: Manufacturing, Process Control, Robotics
Category: Automation And Control Systems
Inputtypes: Digital Input, Analog Input, Sensor Input
Outputtypes: Digital Output, Analog Output, Relay Output
Integrationcapability: Supports Integration With MES, ERP Systems
Compliancestandards: IEC 61131, ISO 9001, CE Certified
Communicationprotocols: Modbus, Profibus, Ethernet/IP, OPC UA
Responsetime: Milliseconds Range
Userinterface: HMI Touchscreen, Web-based Interface, Mobile App
Programminglanguages: Ladder Logic, Function Block Diagram, Structured Text
Powersupply: 24V DC, 110V AC, 220V AC
Controltype: Programmable Logic Controller (PLC), Distributed Control System (DCS), SCADA
Productname: Industrial Control Automation
Safetyfeatures: Emergency Stop, Overload Protection, Fault Detection
Operatingtemperaturerange: -20°C To 60°C
Highlight:

Mitsubishi FX3U logic module

,

FX3U-32MT relay PLC

,

MITSUBISHI FX3U-32MT/ES-A FX3U
Basic Infomation
Place of Origin: china
Brand Name: MITSUBISHI
Model Number: FX3U-32MT/ES-A
Document: JY997D50301(E)-C.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
MITSUBISHI FX3U-32MT/ES-A FX3U Logic Module
16 Inputs, 16 Outputs, Relay, Computer-Compatible Programmable Logic Controller
Performance Specifications
Operation Control System Stored program repetitive operation system (dedicated LSI) with interruption function
Input/Output Control System Batch processing system (when END instruction is executed), Input/output refresh instruction and pulse catch function provided
Programming Language Relay symbol system + step-ladder system (SFC notation possible)
Program Memory Max. memory capacity: 64000 steps
Built-in memory capacity/type: 64000-step RAM (backed up by built-in lithium battery)
Battery life: Approx. 5 years
Memory Cassette (Option) FX3U-FLROM-1M (2000/4000/8000/16000/32000/64000 steps, loader function)
FX3U-FLROM-64L, FX3U-FLROM-64, FX3U-FLROM-16 available for different versions
Writing Function During Running Provided (Program can be modified while the PLC is running)
Protection Password protection provided (with entry code function)
Real-time Clock Built-in
1980 to 2079 (with correction for leap year)
2- or 4-digit year, accuracy within ±45 seconds/month at 25°C
Instruction Set & Processing Speed
Kinds of Instructions Basic instructions: 29
Step-ladder instructions: 2
Applied instructions: 219 kinds 498 instructions
Processing Speed Basic instructions: 0.065 μs/instruction
Applied instructions: 0.642 μs to several hundred μs/instruction
Input/Output Configuration
No. of Input/Output Points Input points: 248 points or less (Extension combined number)
Output points: 248 points or less (Extension combined number)
Total points: 256 or less
Remote I/O Number of Points CC-Link: 256 points or less
AnyWireASLINK: 128 points or less
AS-i: 248 points or less
Total number of points: 384 or less
Device Memory Configuration
Input/Output Relays
Input relay: X000 to X367: 248 points (octal)
Output relay: Y000 to Y367: 248 points (octal)
Auxiliary Relays
For general: M0 to M499: 500 points
For keeping: M500 to M1023: 524 points
For keeping (battery backup fixed area): M1024 to M7679: 6656 points
For special: M8000 to M8511: 512 points
Timers & Counters
  • Timers: 100 ms, 10 ms, 1 ms accumulating types with various ranges
  • Counters: 16-bit up, 32-bit up/down, high-speed counters
  • High-speed counter: Up to 8 points, 1-phase: 100 kHz, 2-phase: 50 kHz
Power Supply Specifications
Rated Voltage 100 to 240 V AC
Allowable Supply Voltage Range 85 to 264 V AC
Frequency Rating 50/60 Hz
Allowable Instantaneous Power Failure Time 10 ms or less (can be changed to 10-100 ms via user program)
Power Consumption 35 W maximum
24 V DC Service Power Supply 400 mA
5 V DC Built-in Power Supply 500 mA or less (not for external use)
Input Specifications
No. of Input Points 16 points
Input Connection Type Removable terminal block (M3 screw)
Input Type Sink/source
Input Signal Voltage 24 V DC ±10%
Input Response Time Approx. 10 ms (adjustable 0-60 ms via digital filters)
Input Circuit Insulation Photocoupler insulation
Output Specifications
No. of Output Points 16 points
Output Connection Type Removable terminal block (M3 screw)
Output Type Transistor/sink output
External Power Supply 5-30 V DC
Max. Load Resistance load: 0.5 A or less/1 output point
Response Time OFF→ON: 5 μs or less (Y000-Y002), 0.2 ms or less (Y003+)
ON→OFF: 5 μs or less (Y000-Y002), 0.2 ms or less (Y003+)
Insulation of Circuit Photocoupler insulation
