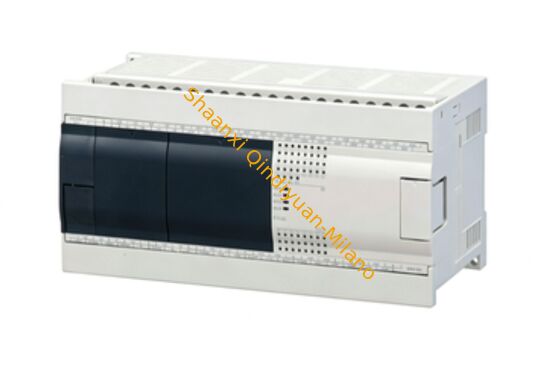

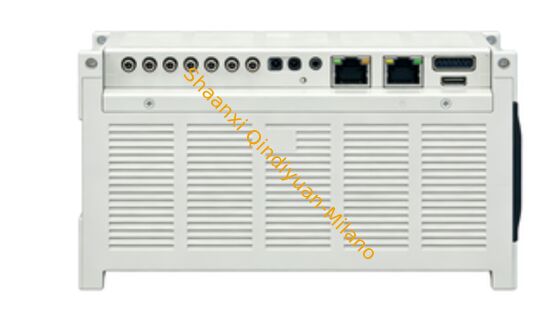

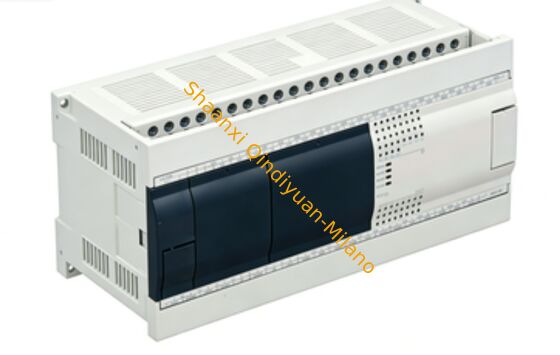

MITSUBISHI FX3U-32MR/ES-A FX3U Logic Module 16 Inputs 16 Outputs Relay Computer

1
MOQ
Negotiable
Price
MITSUBISHI FX3U-32MR/ES-A FX3U Logic Module 16 Inputs 16 Outputs Relay Computer
Features Gallery Product Description Chat Now
Features
Specifications
Numberofinputs: 16 Digital Inputs
Communicationprotocol: Modbus, Ethernet/IP, Profibus
Outputtype: Relay, Transistor, Analog
Operatingtemperaturerange: -20°C To 60°C
Controltype: Programmable Logic Controller (PLC)
Programminglanguage: Ladder Logic, Function Block Diagram
Productname: Industrial Control Automation
Inputvoltage: 24V DC / 110V AC / 220V AC
Responsetime: 1 Ms
Mountingtype: DIN Rail / Panel Mount
Numberofoutputs: 16 Digital Outputs
Safetystandards: CE, UL, RoHS Compliant
Applicationindustry: Manufacturing, Process Control, Robotics
Category: Automation Equipment
Function: Automates Industrial Processes And Machinery
Highlight:

Logic Module 16 Outputs

,

Logic Module 16 Inputs

,

MITSUBISHI FX3U-32MR/ES-A FX3U
Basic Infomation
Place of Origin: china
Brand Name: MITSUBISHI
Model Number: FX3U-32MR/ES-A
Document: JY997D50301(E)-C.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
MITSUBISHI FX3U-32MR/ES-A FX3U Logic Module
16 Inputs, 16 Outputs, Relay, Computer Programmable Logic Controller
Performance Specifications
Operation Control System Stored program repetitive operation system (dedicated LSI) with interruption function
Input/Output Control System Batch processing system (when END instruction is executed), Input/output refresh instruction and pulse catch function are provided
Programming Language Relay symbol system + step-ladder system (SFC notation possible)
Program Memory Max. memory capacity: 64000 steps
Built-in memory capacity/type: 64000-step RAM (backed up by built-in lithium battery)
Battery life: Approx. 5 years
Memory Cassette (Option) FX3U-FLROM-1M (2000/4000/8000/16000/32000/64000 steps, loader function)
FX3U-FLROM-64L (2000/4000/8000/16000/32000/64000 steps, loader function)
FX3U-FLROM-64 (2000/4000/8000/16000/32000/64000 steps, no loader function)
FX3U-FLROM-16 (2000/4000/8000/16000 steps, no loader function)
Writing Function During Running Provided (Program can be modified while the PLC is running)
Protection Password protection provided (with entry code function)
Real-time Clock Built-in
1980 to 2079 (with correction for leap year)
2- or 4-digit year, accuracy within ±45 seconds/month at 25°C
Processing Speed Basic instructions: 0.065 μs/instruction
Applied instructions: 0.642 μs to several hundred μs/instruction
Input/Output Configuration
No. of Input Points 16 points (Main unit built-in)
No. of Output Points 16 points (Main unit built-in)
Total Extension Points Up to 384 points maximum
Remote I/O Points CC-Link: 256 points or less
AnyWireASLINK: 128 points or less
AS-i: 248 points or less
Device Configuration
Input/Output Relays X000 to X367: 248 points (octal)
Y000 to Y367: 248 points (octal)
Auxiliary Relays General: M0 to M499 (500 points)
Keeping: M500 to M1023 (524 points)
Battery backup: M1024 to M7679 (6656 points)
Special: M8000 to M8511 (512 points)
Timers 100 ms: T0 to T191 (192 points)
100 ms (subroutine): T192 to T199 (8 points)
10 ms: T200 to T245 (46 points)
1 ms accumulating: T246 to T249 (4 points)
100 ms accumulating: T250 to T255 (6 points)
1 ms: T256 to T511 (256 points)
Counters 16 bits up: C0 to C99 (100 points)
16 bits up (keeping): C100 to C199 (100 points)
32 bits up/down: C200 to C219 (20 points)
32 bits up/down (keeping): C220 to C234 (15 points)
High-speed counter: Up to 8 points (C235 to C255)
Power Supply Specifications
Rated Voltage 100 to 240 V AC
Allowable Supply Voltage Range 85 to 264 V AC
Frequency Rating 50/60 Hz
Allowable Instantaneous Power Failure Time 10 ms or less (can be changed to 10-100 ms via user program)
Power Consumption 35 W maximum
24 V DC Service Power Supply 400 mA
5 V DC Built-in Power Supply 500 mA or less (for extension blocks and special function units)
Input Specifications
Input Points 16 points
Input Connection Type Removable terminal block (M3 screw)
Input Type Sink/source
Input Signal Voltage 24 V DC ±10%
ON Input Sensitivity Current X000 to X005: 3.5 mA or more
X006, X007: 4.5 mA or more
X010 to X017: 3.5 mA or more
Input Response Time Approx. 10 ms (adjustable 0-60 ms via digital filters)
Input Circuit Insulation Photocoupler insulation
Output Specifications
Output Points 16 points
Output Connection Type Removable terminal block (M3 screw)
Output Type Relay output
External Power Supply 30 V DC or less, 240 V AC or less
Max. Load Resistance load: 2 A or less per point
Inductive load: 80 VA
Response Time OFF→ON: Approx. 10 ms
ON→OFF: Approx. 10 ms
Insulation of Circuit Mechanical insulation
