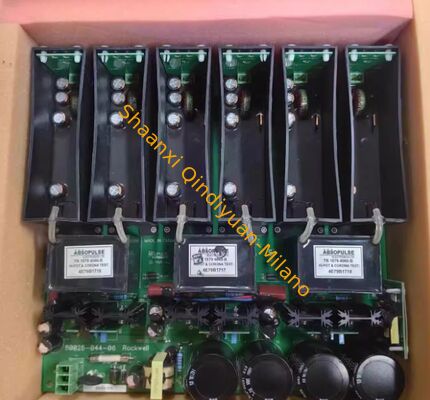

AB 80026-044-06-R Ndustrial Drive Power Module Multi-channel DC Output

1 pcs
MOQ
Negotiable
Price
AB 80026-044-06-R Ndustrial Drive Power Module Multi-channel DC Output
Features Gallery Product Description Chat Now
Features
Specifications
Display: Optional LCD Or LED Indicators
Power Supply Voltage: AC240-360V.
Model: S7-1200
Safetystandards: IEC 61508, ISO 13849
Part No: E-05T
Highlight:

Allen-Bradley PLC power board

,

80026-044-06-R power module

,

PLC replacement power board
Basic Infomation
Brand Name: Allen‑Bradley
Model Number: 80026-044-06-R
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

1. Product Overview

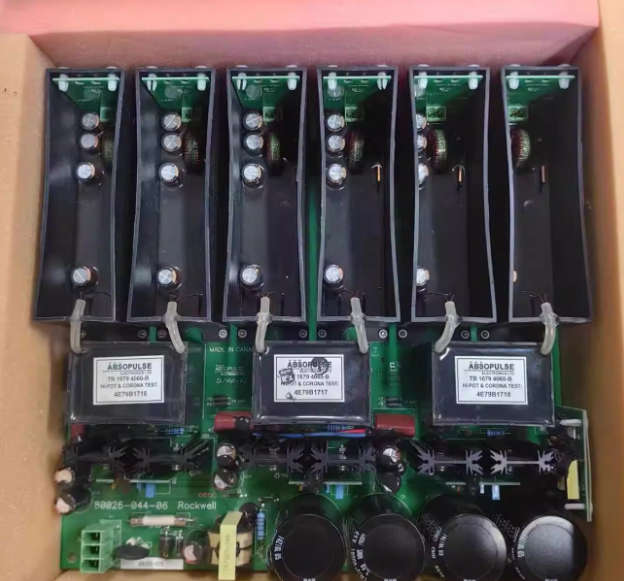

This AB 80026-044-06-R power board is a high-performance switching power supply module independently, specially matched with high-voltage IGCT drive systems up to 6600VRockwell Automation. It converts wide-range AC mains input into multiple groups of stable isolated DC power, continuously supplying reliable operating voltage for drive logic circuits, trigger units and auxiliary control components. It effectively restrains grid voltage fluctuation and electromagnetic interference, guarantees stable and continuous operation of high-power industrial frequency conversion & transmission equipment, and serves as the core power guarantee for large-scale industrial drive control systems.

2. Product Advantages

Wide Universal Input Voltage

Supports 90-264VAC full-range AC input, compatible with global industrial power grids, stable startup under voltage sag and surge conditions.
6-Channel Isolated DC Auxiliary Output

Independent isolation design for each output channel, effectively avoiding cross-circuit interference; each channel provides 20VDC/3A stable power supply, perfectly matching multi-group IGCT trigger drive boards.
Complete Multi-level Safety Protection

Built-in overvoltage, overcurrent, short-circuit and over-temperature protection circuits; automatically cuts off output when abnormal load occurs to prevent damage to high-value drive and power components.
High Efficiency & Low EMI Design

Adopts high-frequency synchronous switching rectification technology with up to 87% conversion efficiency; integrated high-grade EMI filter conforms to EN61800-3 Class A standard, suitable for harsh industrial electromagnetic environments.
Industrial Grade Wide Temperature Adaptability

Works stably in -40℃ ~ +70℃ ambient temperature, with built-in heat sink for natural heat dissipation, no extra fan required, low failure rate and long service life.

3. Technical Parameters

Item Specification Parameter
Brand AB
Model 80026-044-06-R
Input Specification 90~264VAC, 47~63Hz
Main Rated Output 50VDC, 10A
Auxiliary Output 6 Channels × 20VDC, 3A per channel
Conversion Efficiency ≥87% under rated load
Isolation Strength High voltage isolation up to 6600V
Protection Mode Overvoltage / Overcurrent / Short-circuit / Over-temperature
Operating Temperature -40℃ ~ +70℃
Net Weight 5.2kg
Overall Dimension 315 × 150 × 100mm
Installation Built-in cabinet fixed mounting
Compliance Standard IEC61000, EN61800-3
Warranty 12 Months

4. Application Industries & Scenarios

Main Application Industries

  • Metallurgy & Mining
  • New Energy Power Generation
  • Oil & Chemical Industry
  • Port & Heavy Machinery
  • High-speed Rail Transportation

Typical Application Scenarios

  1. High-power medium voltage frequency converter drive system supporting & power supply
  2. Large industrial motor soft starter and IGCT high-voltage transmission equipment
  3. Industrial heavy-duty servo control and high-power PLC integrated control cabinet
  4. Energy storage equipment, wind power converter and grid-connected power control system
