Home /Products/Programmable Logic Controller PLC/CML40.2-SP-330-NA-NNNN-NW Programmable Logic Controller With 32 Bit RISC Processor DIN Rail Mounting

CML40.2-SP-330-NA-NNNN-NW Programmable Logic Controller With 32 Bit RISC Processor DIN Rail Mounting

1 pcs
MOQ
Negotiable
Price
CML40.2-SP-330-NA-NNNN-NW Programmable Logic Controller With 32 Bit RISC Processor DIN Rail Mounting
Features Gallery Product Description Chat Now
Features
Specifications
Responsetime: Less Than 1 Ms
Mountingtype: DIN Rail / Panel Mount
Safetystandards: IEC 61508, ISO 13849
Outputtype: Digital And Analog Outputs
Programminglanguage: Ladder Logic, Function Block, Structured Text
Communicationprotocol: Modbus, Ethernet/IP, Profibus
Application: Manufacturing And Process Control
Dimensions: Varies By Model
Connectivity: Wi-Fi, Ethernet, Serial
Type: Automation System
Inputtype: Digital And Analog Inputs
Operatingtemperature: -20°C To 60°C
Powersupply: 24V DC / 110V AC / 220V AC
Controltype: Programmable Logic Controller (PLC)
Productname: Industrial Control Automation
Highlight:

32 bit RISC Processor PLC

,

Programmable Logic Controller DIN Rail

,

CML40.2-SP-330-NA-NNNN-NW
Basic Infomation
Model Number: CML40.2-SP-330-NA-NNNN-NW
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000pcs
Product Description

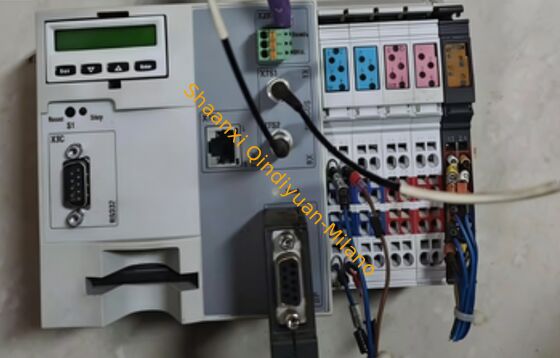

 CML40.2-SP-330-NA-NNNN-NW Programmable Logic Controller
Core Product Specifications
Parameter Specification
Product Type 32-bit High-Performance Motion Controller (PLC + Motion Control Integration)
Order Number R911170254 (Universal for the same series)
Power Supply Voltage 24 VDC (-15% ~ +20%, Ripple-free)
Processor 32-bit RISC Processor
Memory DRAM ≥ 64 MB; NVRAM 128 kB (Power-off Retention)
Digital I/O 8 DI channels + 8 DO channels (24 VDC, Opto-isolated)
Communication Interface Standard: Ethernet, RS-232; Optional: SERCOS II, PROFIBUS DP
Display and Operation 5×10 dot matrix LCD + 4 operation keys + Reset Button + Status LED
Installation Method Standard DIN Rail (TH35) Mounting
Physical Dimensions 175.4 (L) × 120 (H) × 75.9 (D) mm
Net Weight Approx. 1.8 kg
Operating Temperature 0℃ ~ +55℃
Storage Temperature -25℃ ~ +70℃
Protection Rating IP20 (for use in control cabinets)
Certifications CE, UL, CSA, RoHS
Programming Software IndraWorks (based on CODESYS V2)
Programming Language IEC 61131-3 (LD, FBD, SFC, ST, IL)
Model Code Configuration Analysis
  • CML40.2: Product Series (IndraControl L40, 2nd Generation)
  • SP: Hardware Version (Standard Performance)
  • 330: Performance Class (Motion Control Axes / Processing Capacity)
  • NA: No pre-installed fieldbus interface (requires post-configuration)
  • NNNN: No additional function modules (no safety, no special I/O)
  • NW: No wireless communication module
Core Functions and Technical Highlights
Motion Control Capabilities
  • Multi-axis synchronous motion (linear interpolation, circular interpolation, electronic gear/cam)
  • Up to 1ms task cycle for high-speed, high-precision equipment requirements
  • Built-in motion control library supporting servo/stepper motor closed-loop control
  • Compatible with  IndraDrive series servo drives (SERCOS II bus)
Logic Control Capabilities
  • IEC 61131-2/3 compliant programming (ladder diagrams, function blocks)
  • Powerful interrupt handling and real-time task scheduling for multi-task scenarios
  • Industrial protocol support including OPC UA and Modbus TCP for system integration
Hardware Features
  • Fanless design with all-metal casing for vibration and interference resistance
  • Front panel integrated status display and operation buttons for on-site debugging
  • CompactFlash card support for expanded storage and program backup
Logistics and Customs Information
  • Dangerous Goods: None (General cargo, no batteries or capacitors)
  • Customs Code (HS): 8537109090 (Programmable Logic Controller)
  • Packaging: Original cardboard box, 1 unit/box, 4 units/carton
  • Unit Volume: Approximately 0.0016 m³

Tag:

PLC Programmable Logic Controller

Industrial PLC Controller

PLC In Industrial Automation
