Home /Products/Industrial Control Automation/MITSUBISHI FX5UC-32MT/DSS-TS FX5UC CPU DC 16 Inputs 16 Transistor Outputs Eth RS-485

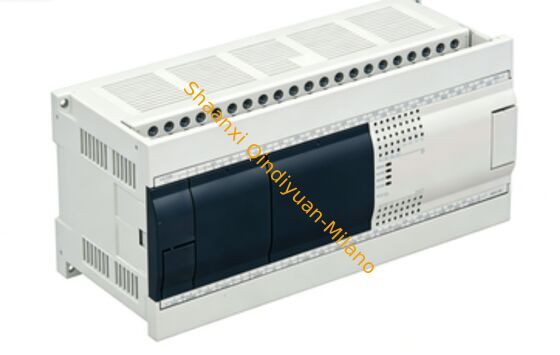

MITSUBISHI FX5UC-32MT/DSS-TS FX5UC CPU DC 16 Inputs 16 Transistor Outputs Eth RS-485

1
MOQ
Negotiable
Price
MITSUBISHI FX5UC-32MT/DSS-TS FX5UC CPU DC 16 Inputs 16 Transistor Outputs Eth RS-485
Features Gallery Product Description Chat Now
Features
Specifications
Communicationprotocol: Modbus, Ethernet/IP, Profibus
Programminglanguage: Ladder Logic, Function Block, Structured Text
Outputtype: Digital And Analog Outputs
Type: Automation System
Application: Manufacturing And Process Control
Compatibility: Supports Integration With SCADA And HMI Systems
Responsetime: Less Than 1 Ms
Safetyfeatures: Emergency Stop, Overload Protection
Inputtype: Digital And Analog Inputs
Powersupply: 24V DC / 110V AC / 220V AC
Mountingtype: DIN Rail / Panel Mount
Productname: Industrial Control Automation
Operatingtemperaturerange: -20°C To 60°C
Controltype: Programmable Logic Controller (PLC)
Highlight:

Mitsubishi FX5UC PLC controller

,

FX5UC-32MT/DSS-TS

,

Mitsubishi PLC FX5UC
Basic Infomation
Place of Origin: china
Brand Name: MITSUBISHI
Model Number: FX5UC-32MT/DSS-TS
Document: FX5-232-BD .pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
MITSUBISHI FX5UC-32MT/DSS-TS Programmable Logic Controller
Product Overview

FX5UC series CPU unit with 16 digital inputs, 16 transistor outputs, Ethernet and RS-485 communication interfaces, spring clamp terminals, and source output logic.

Technical Specifications
Basic Unit Configuration
ParameterSpecification
TypeFX5UC
Power Supply24V DC
Program Memory64K STEPS
Program Memory UnitFLASH
Integrated Digital Inputs16
Integrated Digital Outputs16
Output TypeTRANSISTOR
Output LogicSOURCE
Local I/O Points256
Local + Remote I/O Points512
ExpandableYES
Cycle Time LD34 ns
Cycle Time MOV34 ns
Ethernet Port1
RS-4851
Power Consumption5W
Backup BatteryOPTION
Protection ClassIP10
Min. Operating Temperature-20°C
Max. Operating Temperature55°C
SeriesMELSEC IQ-F SERIES
Compliance & Certifications
StandardStatus
CECOMPLIANT
UL/cULCOMPLIANT
EACNON-COMPLIANT
Maritime ApprovalsABS, BV, DNV GL, KR, LR, NK, RINA
Physical Dimensions & Weight
DimensionValue
Width48.1 mm
Height90 mm
Depth93.7 mm
Weight0.25 kg
Product Lifecycle
ParameterValue
Serial Number on PackagingQR1
Sales StatusStandard
Packaging Materials
MaterialWeight (g)
Cardboard75
Other Paper0
Aluminum0
Steel0
Styrofoam0
Other Plastic0
Wood0
Glass0
Other0
Key Features
  • Compact design with spring clamp terminals for easy installation
  • High-speed processing with 34ns cycle times
  • Integrated Ethernet and RS-485 communication interfaces
  • Expandable I/O system supporting up to 512 points
  • Wide operating temperature range (-20°C to 55°C)
  • Multiple international certifications and maritime approvals
  • Part of the advanced MELSEC IQ-F series
