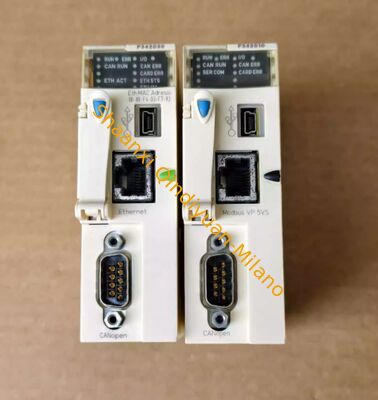

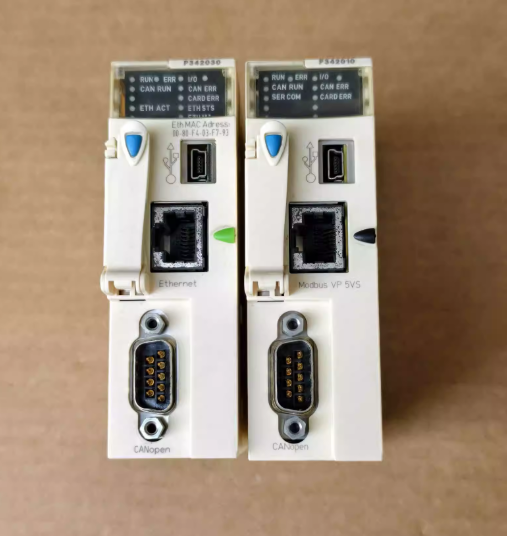

BMXP342010 Schneider Modicon M340 Modular PLC 24V DC Input And Relay Outputs

1 pcs
MOQ
Negotiable
Price
BMXP342010 Schneider Modicon M340 Modular PLC 24V DC Input And Relay Outputs
Features Gallery Product Description Chat Now
Features
Specifications
CPU_Speed: 100 MHz
Application: Oil And Gas Factory
Actual Value: Negotiabled Price
Memory: 512 KB
Supply Voltage Type: AC
Point: 14 (8DI+6DO)
Highlight:

Schneider

,

Schneider Modicon M340

,

Modular PLC 24V DC
Basic Infomation
Brand Name: Schneider
Certification: Brand new original
Model Number: BMXP342010
Payment & Shipping Terms
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

Schneider BMXP342010 Modicon M340 Modular PLC Product Details (Fully ECER Compliant)

Product Title

Schneider BMXP342010 Modicon M340 CPU Module Modular PLC Controller, 24VDC Power Supply, Relay Output Expansion Support

1. Product Overview

The BMXP342010 is the core CPU processor unit of Schneider Modicon M340 series modular PLC system. It acts as the central computing and logic control core for medium-sized industrial automation projects.

This main unit runs user-programmed control logic to collect digital/analog signals from field sensors, execute arithmetic, timing, counting and interlock operations, then send output instructions to drive contactors, solenoid valves and on-site actuators.

It supports flexible rack-based I/O module expansion, multi-protocol communication connection with HMI, variable frequency drives and upper monitoring systems. Powered by 24V DC, it builds distributed and centralized automation control systems for production lines, process equipment and infrastructure facilities.

2. Core Product Advantages ⭐

Icon Tag Highlight Advantage Detailed Description
 Modular Free Expansion Pluggable rack architecture Adopt backplane rack installation, match with BMX series digital input, relay output, analog acquisition modules to customize I/O points on demand, no redundant hardware waste
Multi-Channel Communication Rich built-in interfaces Equipped with RS485 Modbus port + USB programming port; supports optional Ethernet, CANopen, Profibus communication cards to access multiple industrial fieldbus systems
 Industrial Anti-Interference Design Stable operation in harsh environment Comply with international EMC anti-electromagnetic interference standards, adapt to strong electromagnetic interference workshop, power plant and metallurgy working conditions
💾 Sufficient Program Storage Large capacity memory Built-in program memory & data storage space, support program upload/download and SD card program backup, convenient for equipment program duplication and maintenance
⚙️ Standard I/O Compatibility Universal M340 peripheral matching Fully compatible with all Modicon M340 series I/O modules, including 24VDC digital input modules and relay output modules you configured, seamless assembly without protocol adaptation
🖥️ Unified Programming Software Low engineering cost Programmed via EcoStruxure Machine Expert (SoMachine), follow IEC 61131-3 international PLC standard, consistent operation logic with other Schneider PLC series to reduce engineer learning cost
 Global Certification Export friendly certification Obtain CE, UL, RoHS and Green Premium eco-label certification, fully meet cross-border customs filing and ECER commodity information declaration requirements
 Easy On-site Maintenance Hot swap optional modules Part expansion modules support hot plug replacement without system power-off, greatly shorten equipment fault downtime

3. Technical Parameters


Parameter Item Official Specification
Model Number BMXP342010
Product Series Modicon M340 Modular PLC CPU Unit
Power Supply Rated Voltage 24V DC (Allowable range: 20.4 ~ 28.8 VDC)
CPU Processing Speed Boolean instruction: 0.1 μs per step
Built-in Program Memory 128K words for user application program
Data Register Memory 64K words variable storage area
Basic Onboard Interfaces 1 × RS485 Modbus RTU port, 1 × Mini USB programming port
Maximum Expansion Scale Support up to 8 extension racks; total maximum 256 I/O points
Supported I/O Types Matches 24VDC digital input modules, relay output modules, analog input/output, high-speed counting modules
Installation Mode DIN 35mm rail mounting / standard backplane rack fixed installation
Operating Ambient Temperature 0 ℃ ~ +60 ℃ (horizontal installation)
Storage Temperature -40 ℃ ~ +85 ℃
Protection Class IP20 (Only for indoor cabinet installation)
Net Weight Approximately 320 g
Compliance Certifications CE, UL Listed, RoHS, Green Premium
Factory Warranty 12 months for brand new original goods

4. Application Industries & Scene Guidance

Main Applicable Industries

  1. Packaging & Printing Industry: Multi-station automatic packaging line, carton forming equipment, printing press process control
  2. Water & Wastewater Treatment: Sewage pumping station group control, chemical dosing system, liquid level & pressure closed-loop monitoring
  3. Metallurgy & Machinery Processing: Punching production line, assembly fixture control, metal cutting machine tool auxiliary control
  4. Building HVAC & Infrastructure: Central air conditioning group control, pumping station, elevator peripheral logic interlock system
  5. New Energy Equipment: Photovoltaic auxiliary equipment, battery packaging and testing assembly line
  6. Food & Beverage Production: Conveying sorting line, filling and capping machine, sterilization process automation
  7. Logistics Conveying System: Automated sorting line, palletizing robot peripheral signal linkage control
