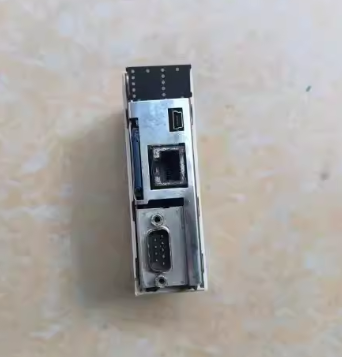

Schneider BMXNOE0100｜Modicon M340 Ethernet Module

1. Product Overview

2. Core Product Advantages

1. Built-in 512KB Memory + Optional Flash Card Slot: Support program, parameter & production recipe offline backup, match 16MB memory card for large-capacity data storage, data protection against power failure.
2. 10/100Mbps Auto-adaptive RJ45 Ethernet Port: Stable Modbus TCP master/slave communication, max 16 concurrent TCP connections, high-speed periodic I/O scanning & global data sharing between PLC racks.
3. Embedded Web Server & Multi-protocol Compatibility: Integrate HTTP/FTP/SNMP/FDR protocols, access PLC status via browser remotely; remote firmware upgrade by FTP to reduce maintenance downtime.
4. Plug-and-play on M340 Backplane: Directly plug into Modicon M340 base rack, no extra wiring, configure via EcoStruxure Control Expert / Unity Pro quickly.
5. Industrial Grade Reliability & Full Certification: IP20 protection, wide working temperature range, passed CE/UL/RoHS/REACH certification, fully comply with EU ECC import customs clearance standard, adapt dusty & humid workshop environment.
6. Full LED Status Indication: RUN/ERR/ETH indicator lights for real-time network fault quick troubleshooting.

3. Technical Specifications

4. Application Industries & Scenarios

Applicable Fields

Typical Usage

1. Water plant pump group centralized monitoring & pool liquid level automatic control
2. Packaging/production line PLC-HMI networking & frequency converter cluster communication
3. Factory building HVAC, lighting centralized intelligent control
4. New energy small power station & distribution cabinet data collection
