Schneider TM221C40R Electric Programmable Logic Controller PLC Modicon M221 PLC

1 pcs
MOQ
Negotiable
Price
Schneider TM221C40R Electric Programmable Logic Controller PLC Modicon M221 PLC
Features Gallery Product Description Chat Now
Features
Specifications
Points: 40 (24DI+16DO)
Power_Consumption: 5 W
Power Supply Voltage: 100 – 240VAC.
Dimensions: 90 Mm X 100 Mm X 75 Mm
Part Type: Sysmac CPM2A
Part No: 3603T
Number_of_Inputs: 14
Number_of_Outputs: 10
CPU_Speed: 100 MHz
Output Typt: Relay
Application: Oil And Gas Factory
Actual Value: Negotiabled Price
Memory: 512 KB
Supply Voltage Type: AC
Point: 14 (8DI+6DO)
Highlight:

Programmable Logic Controller PLC M221

,

Electric Programmable Logic Controller PLC

,

Schneider TM221C40R
Basic Infomation
Brand Name: Schneider
Certification: Brand new original
Model Number: TM221C40R
Payment & Shipping Terms
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

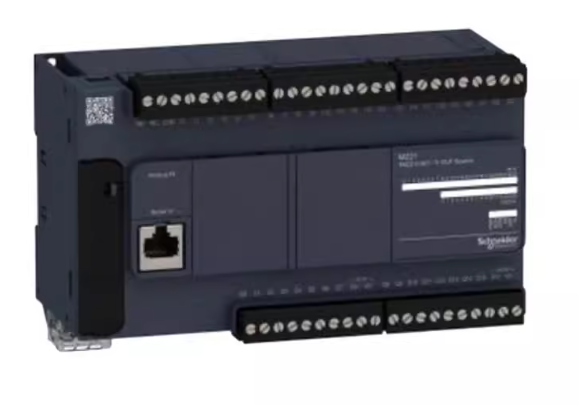

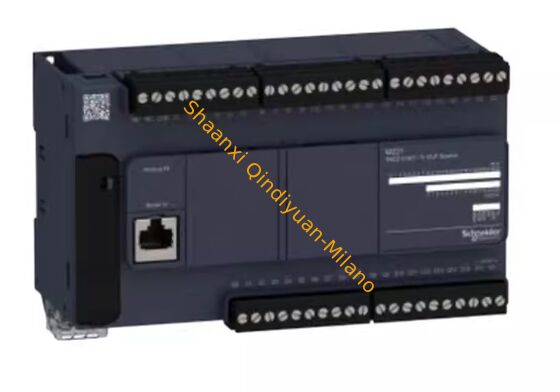

Schneider TM221C40R Programmable Logic Controller

Advanced Modicon M221 PLC with 24V DC inputs, relay outputs, and comprehensive industrial connectivity for automation applications.

Core Specifications
Series Modicon M221 Integrated Programmable Logic Controller
I/O Configuration 24 digital inputs (24V DC) + 16 relay outputs (normally open)
Power Supply 100-240V AC (85-264V wide range), 50/60Hz
Output Specifications Relay contacts, 2A/channel, 5-125V DC / 5-250V AC
Analog Inputs 4 channels 0-10V (10-bit resolution)
Memory 256KB Program/Data RAM, 256KB Flash, supports SD card up to 2GB
Programming CoDeSys/SoMachine Basic environment, approx. 10,000 steps
Communication Ports Mini USB (programming), 2×RJ45 (Serial 1: RS485; Serial 2: RS232/RS485)
Physical Dimensions 160 × 70 × 90 mm (W×D×H), 0.456 kg
Protection & Mounting IP20 rated, DIN rail (TH35-7.5/15) / panel mount
Operating Temperature -10℃ to +55℃
Performance Features
  • Input filtering time adjustable: 0/3/12ms
  • Relay mechanical life: 20 million cycles
  • Built-in real-time clock with monthly error ≤30 seconds
  • Expandable to 7 I/O modules with M221 series compatibility
  • Flash storage maintains data during power loss
  • SD card support for program backup and restoration
  • Built-in 24V DC sensor power supply (250mA max output)
Logistics & Compliance Information
Contains electrolytic capacitor (Class 9 dangerous goods UN3091)
No built-in batteries
Packaging: Original cardboard box, gross weight 0.5-0.6 kg
Volume: 0.001008 m³
International Certifications
CE CSA CULus LR IACS E10 RCM EAC DNV-GL ABS
