Schneider TM221C16R Programmable Logic Controller For Industrial Automation

1 pcs
MOQ
Negotiable
Price
Schneider TM221C16R Programmable Logic Controller For Industrial Automation
Features Gallery Product Description Chat Now
Features
Specifications
Part Type: Sysmac CPM2A
Application: Oil And Gas Factory
Actual Value: Negotiabled Price
Highlight:

Schneider TM221C16R

,

Schneider Programmable Logic Controller
Basic Infomation
Brand Name: Schneider
Certification: Brand new original
Model Number: TM221C16R
Payment & Shipping Terms
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
 Schneider TM221C16R Programmable Logic Controller
1. Product Overview 📋

Schneider TM221C16R belongs to Modicon M221 compact PLC series, an AC-powered industrial programmable logic controller built for small & medium automated machinery control. This device executes customized logic programs to collect digital signals from on-site sensors, limit switches and buttons, then drive relay outputs to control solenoid valves, contactors, heaters, pumps and actuators. Equipped with 9 digital inputs, 7 relay outputs plus 2 built-in analog voltage inputs, it realizes closed-loop PID regulation, motion counting and multi-device communication linkage. It works as the core control brain for standalone equipment and small assembly lines, supporting program storage, remote data interaction and on-site manual Run/Stop operation, widely applied for stable logic automation in complex factory environments.

2. Core Product Advantages ✨
🔌Relay Output Strong Compatibility

7-channel mechanical relay output, maximum load 2A (250V AC /125V DC). Compatible with AC/DC alternating loads including coils, lamps and pumps; mechanical service life reaches 20 million cycles, tolerant of inductive surge current without extra flywheel diode for most ordinary loads.

🌐Multi-Communication Ports for Easy Networking

Integrated Ethernet (Modbus TCP), RS485/RS232 serial port (Modbus RTU/ASCII) and Mini USB programming port. Supports connection with HMI, frequency converters, remote SCADA and upper computers to finish data upload/download and remote debugging.

📈High Operation Performance & Rich Functions

Boolean instruction execution speed: 0.2μs; 1K cycle task runs in only 0.3ms. Embedded high-speed counting, pulse input, real-time clock and up to 14 independent PID closed-loop loops for temperature, pressure and flow precise adjustment.

🧩Expandable I/O & Convenient Maintenance

Supports expansion with TM3 series I/O modules to expand digital/analog channels; detachable screw terminal blocks allow fast wiring replacement. Optional SD card realizes one-click program copy and backup; internal flash memory stores programs permanently without power loss.

🛡️Wide Voltage & Industrial Anti-interference

Wide power input 100~240V AC, stable against factory voltage fluctuation. Conforms to CE, RoHS industrial EMC standards; works normally under -10℃~+55℃ with strong resistance to electromagnetic interference from motors and welding equipment.

💻Easy Programming & Low Learning Cost

Programmed via SoMachine Basic software; supports IEC61131 standard languages (Ladder Diagram, Function Block). Comes with ready-made function blocks for pump control, conveyor logic, greatly shortening development cycle.

3. Complete Technical Parameters
Item Detailed Specification
Model TM221C16R (Modicon M221 Series)
Power Supply 100~240 V AC, 50/60Hz
Digital I/O 9 DI (24V DC sink/source); 7 NO relay DO
Analog Input 2 channels, 0~10V DC, 10-bit resolution
Relay Output Rating Max 2A per point; 5~250V AC /5~125V DC
High-speed Input 4 fast counting terminals, response as low as 5μs
Program Capacity 10,000 steps, 256KB flash memory
Clock Built-in RTC, monthly drift ≤30s, BR2032 battery backup (4-year lifespan)
Communication Ethernet, RS485/232, Mini USB; Modbus TCP/RTU
Mounting Standard 35mm DIN rail mounting
Dimension 90mm (H) × 95mm (W) ×70mm (D)
Net Weight 290g
Operating Temp -10 ℃ ~ +55 ℃
Certifications CE, RoHS, Green Premium
Storage Option External SD card (max 2GB) supported
4. Application Industries & Scenarios 🎯
Main Applicable Industries
  1. Packaging machinery: Filling machines, sealing equipment, labeling machines, carton packaging lines
  2. Water treatment & fluid control: Water pump group control, dosing system, water tank liquid level automatic adjustment
  3. Food & beverage: Conveyor belts, baking ovens, cleaning equipment, CIP pipeline auxiliary control
  4. Logistics & material handling: Automated conveyors, sorting equipment, small lifting machinery
  5. General mechanical processing: Drilling machines, grinding machines, fixture clamping automation
  6. HVAC & environmental equipment: Air conditioner fan control, exhaust system, dust removal equipment
Scene Description

Installed inside electrical control cabinets via DIN rail. Digital terminals connect proximity switches, photoelectric sensors and emergency stop buttons; relay terminals drive contactors and solenoid valves. Ethernet links touch screen and workshop central control system for production data monitoring.

Warehouse Stock Description

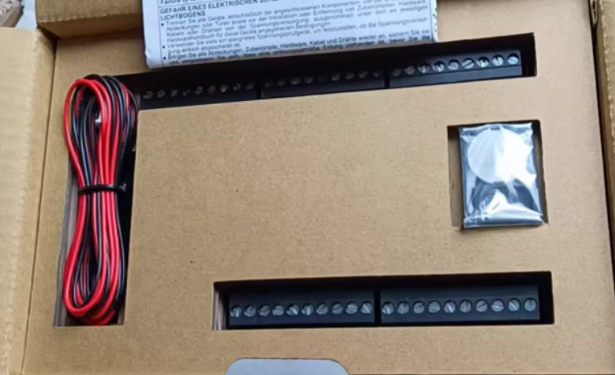

All goods are original Schneider genuine, packed with independent electrostatic anti-static cartons, with unique serial number traceable. Stored in constant-temperature dust-proof electronic warehouse with moisture-proof packaging. Complete accessories include terminal screws, operation manual and certification documents; bulk inventory supports sample order and mass delivery, with official 12-month global warranty.

Schneider TM221C16R Modicon M221 PLC 16 Points Relay Output AC Powered Industrial Automation Programmable Logic Controller
