Product Datasheet: MITSUBISHI Q64DAH

Compliance Declaration

1. Product Overview ⚙️

MITSUBISHI Q64DAH 4-Channel Analog Output Module for MELSEC-Q Series PLC

2. Core Advantages & Key Features ✅

1. High-Speed D/A Conversion Performance


   Ultra-fast conversion speed of 20μs per channel, far faster than standard Q64DA model, supporting high real-time closed-loop process control without signal delay.
2. 16-bit High Precision Output


   16-bit high-resolution conversion circuit, conversion accuracy reaches ±0.1% (25±5°C ambient temperature), supports micro-precision parameter adjustment for precision manufacturing and chemical process.
3. Multi-Range Signal Compatibility


   Each channel independently configurable for voltage or current output; supports -10~+10V, 0~5V, 1~5V voltage signals and 0~20mA, 4~20mA current signals, compatible with all mainstream industrial analog actuators.
4. Channel Isolation Anti-Interference Design


   Built-in electrical isolation between each channel and PLC backplane bus, effectively suppresses electromagnetic noise interference from frequency converters and motors, ensures stable signal output in harsh industrial workshops.
5. Full System Diagnostic Function


   Real-time monitoring of output short circuit, open circuit, overload and abnormal voltage; feeds back fault codes to CPU automatically, reduces equipment troubleshooting downtime.
6. Full Compatibility with Q Series Platform


   Plug-and-play on all Q series base units, matches Q03UDVCPU, Q04UDVCPU and all Q series CPU modules; configurable via GX Works2 / GX Works3 programming software.
7. Compact Panel Space Saving


   Ultra-narrow body dimension, occupies only one module slot in control cabinet, optimizes internal layout of electrical panels.

3. Complete Technical Specifications Table

4. Applicable Industries & Scenarios 📊

Main Covered Industries

1. Chemical & Petrochemical Process Control
2. Food & Beverage Automated Packaging Lines
3. Pharmaceutical Production & Bioprocess Equipment
4. Plastic Injection & Extrusion Machinery
5. Water Treatment & Environmental Protection Plants
6. Automotive Component Assembly Equipment
7. Precision Electronic Testing & Measuring Equipment
8. Energy & Hydraulic Pump Regulating Systems

Typical Application Scenario Descriptions

1. Closed-loop proportional valve control for chemical fluid flow adjustment; 4-20mA analog signal output to regulate pipeline flow rate.
2. Frequency converter speed regulation for conveying equipment; ±10V voltage signal to adjust motor operating speed continuously.
3. Temperature & pressure closed-loop control for sterilization, reaction kettle and thermal forming equipment.
4. Precision tension control for textile and printing production lines, realizes stable material winding tension via analog output.
5. Laboratory testing equipment signal generation, provides adjustable analog reference signals for measuring instruments.

Image Icon Tags for Layout Matching

1. Application Scenario Graphic 1: Chemical Process Automation Control Cabinet


   Icon Mark: 🏭 Process Control Production Line
2. Application Scenario Graphic 2: Packaging Machine Analog Actuator Control System


   Icon Mark: 📦 Automated Packaging Equipment
3. Warehouse Stock Photo: Original Mitsubishi PLC Module Finished Goods Storage Rack


   Icon Mark: 📦 Industrial Components Warehouse Storage

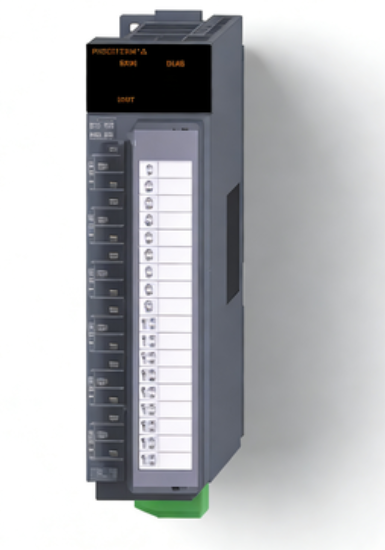

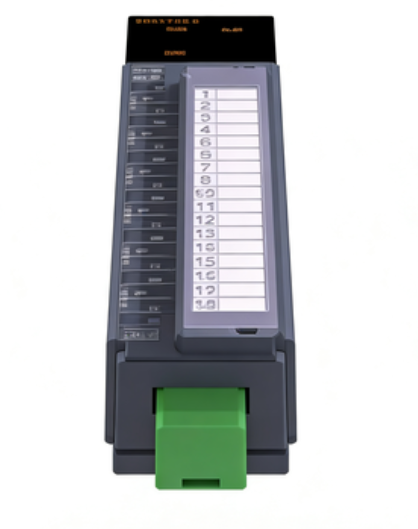

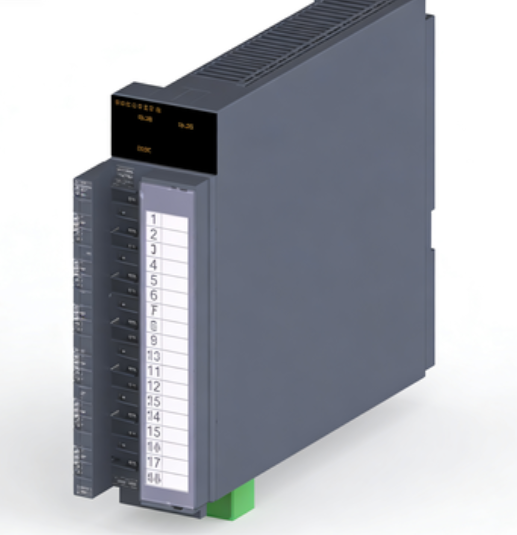

4. Product Physical Graphic: Q64DAH Module Outline Drawing


   Icon Mark: ⚙️ Q64DAH Product Appearance Diagram
