MITSUBISHI QJ61BT11N master/local module for MELSEC-Q Series PLC

1
MOQ
Negotiable
Price
MITSUBISHI QJ61BT11N master/local module for MELSEC-Q Series PLC
Features Gallery Product Description Chat Now
Features
Specifications
Memory_Capacity: 125 KB
Part No: 750-466
Weight: 0.5 Kg
Dimensions: 90 Mm X 100 Mm X 75 Mm
Input Points: 28
Manufacturer: Siemens
Number_of_Outputs: 10
Part Type: Sysmac CPM2A
Operating_Temperature_Range: -20°C To 60°C
Application: Oil And Gas Factory
Output Points: 24 Points.
Total Points: 60 Points.
Actual Price: Negotiabled
Output Method: Relay
Condition: New Original With Sealed
Highlight:

MELSEC-Q Series PLC module

,

Mitsubishi PLC master module

,

QJ61BT11N local control module
Basic Infomation
Place of Origin: china
Brand Name: MITSUBISHI
Model Number: QJ61BT11N
Document: 52857c14-1121-11e1-98c9-002...ty.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description

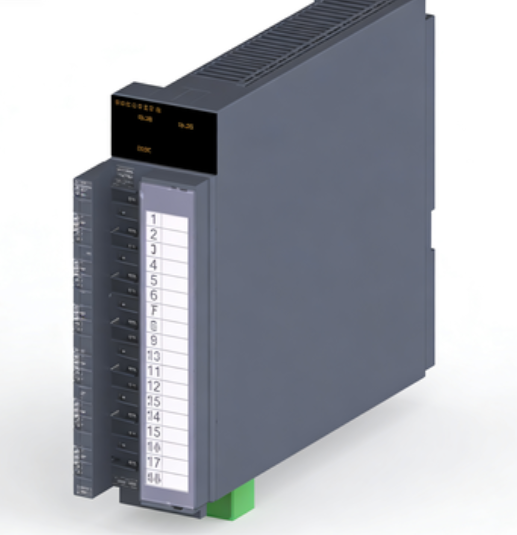

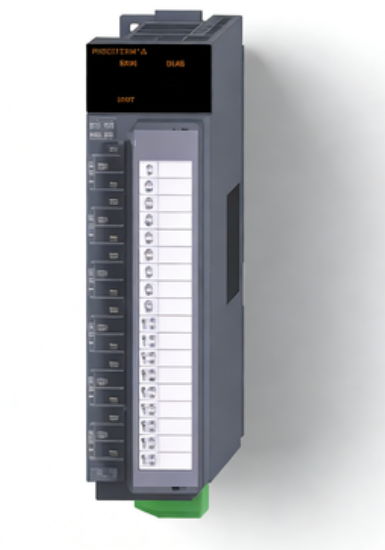

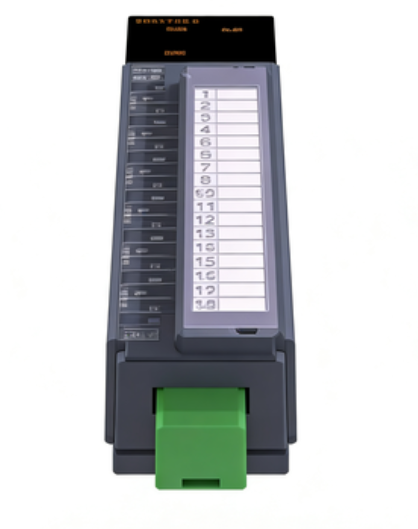

MITSUBISHI QJ61BT11N Master/Local Module
Master/local module for MELSEC-Q Series PLC with comprehensive CC-Link communication capabilities
Key Features
  • Supports both master and local station operation
  • Multiple transmission speeds from 156 kbps to 10 Mbps
  • Compatible with CC-Link Ver.1 and Ver.2 protocols
  • Supports up to 64 connected stations
  • Comprehensive link point capacity for industrial applications
Performance Specifications
Transmission Speed & Distance
Transmission Speed Maximum Cable Distance
156 kbps 1200 m
625 kbps 900 m
2.5 Mbps 400 m
5 Mbps 160 m
10 Mbps 100 m
Station Configuration
Parameter Specification
Station Type Master station (Ver. 1 or Ver. 2)
Local station (Ver. 1 or Ver. 2)
Maximum Connected Stations 64
Number of Occupied Stations 1-4 stations
Link Points Capacity
Protocol Version Link Points
CC-Link Ver.1 Remote I/O (RX, RY): 2048 points
Remote register (RWw): 256 points
Remote register (RWr): 256 points
CC-Link Ver.2 Remote I/O (RX, RY): 8192 points
Remote register (RWw): 2048 points
Remote register (RWr): 2048 points
Expanded Cyclic Settings
Setting Link Points
Single Remote I/O (RX, RY): 32 points (local station: 30 points)
Remote register (RWw): 4 points
Remote register (RWr): 4 points
Double Remote I/O (RX, RY): 32 points (local station: 30 points)
Remote register (RWw): 8 points
Remote register (RWr): 8 points
Quadruple Remote I/O (RX, RY): 64 points (local station: 62 points)
Remote register (RWw): 16 points
Remote register (RWr): 16 points
Octuple Remote I/O (RX, RY): 128 points (local station: 126 points)
Remote register (RWw): 32 points
Remote register (RWr): 32 points
Communication Specifications
Parameter Specification
Communication Method Broadcast polling method
Synchronization Method Frame synchronization method
Encoding Method NRZI method
Network Topology Bus (RS-485)
Transmission Format HDLC compliant
Error Control System CRC (X16 + X12 + X5 + 1)
Physical Specifications
Parameter Specification
Communication Cable Ver.1.10 compatible CC-Link dedicated cable
CC-Link dedicated cable (Ver.1.00 compatible)
CC-Link dedicated high-performance cable (Ver.1.00 compatible)
Number of Occupied I/O Points 32 points (I/O assignment: Intelligent 32 points)
Internal Current Consumption (5 V DC) 0.46 A
External Dimensions Height: 98 mm
Width: 27.4 mm
Depth: 90 mm
Weight 0.12 kg
