Home /Products/Industrial Motors/Honeywell HME3-16OMA6-GS Industrial Motors IE3 Ultra High Efficiency IP55 Protection

Honeywell HME3-16OMA6-GS Industrial Motors IE3 Ultra High Efficiency IP55 Protection

1 pcs
MOQ
Negotiable
Price
Honeywell HME3-16OMA6-GS Industrial Motors IE3 Ultra High Efficiency IP55 Protection
Features Gallery Product Description Chat Now
Features
Specifications
Mountingtype: Foot-mounted / Flange-mounted
Speed: 750 RPM To 3600 RPM
Phase: Three-phase
Dutycycle: S1 (Continuous)
Insulationclass: Class F / Class H
Efficiency: IE2 To IE4
Protectionrating: IP54 / IP55 / IP65
Frequency: 50 Hz / 60 Hz
Productname: Industrial Motors
Material: Cast Iron / Aluminum Housing
Voltage: 220V To 690V
Powerrating: 0.5 KW To 500 KW
Coolingmethod: TEFC (Totally Enclosed Fan Cooled)
Framesize: 56 To 355 Mm
Application: Pumps, Compressors, Conveyors, Fans
Highlight:

Industrial Motors IE3

,

Honeywell Industrial Motors

,

Honeywell Motors IP55
Basic Infomation
Brand Name: Honeywell
Certification: Brand new original
Model Number: HME3-16OMA6-GS
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description

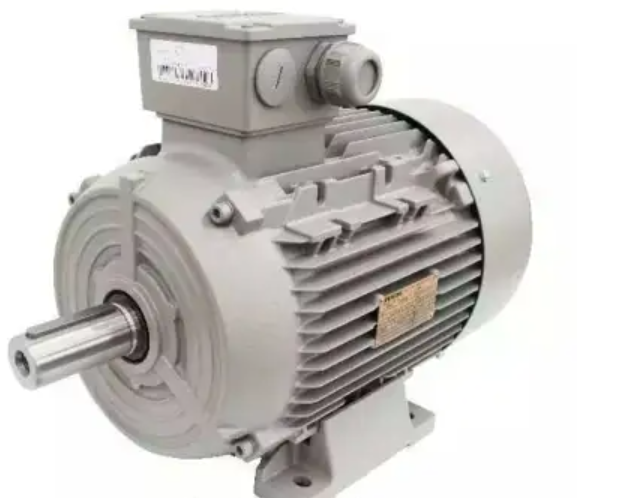

Honeywell HME3-16OMA6-GS Industrial Motor
Model Breakdown
  • HME3: 3rd generation of the HME series, IE3 ultra-high efficiency low-pressure cast iron motor
  • 160: Center height 160 mm
  • M: Medium frame size
  • A: Core length code
  • 6: 6 poles (rated speed ≈ 970-980 rpm, 50 Hz)
  • GS: Standard configuration suffix (general industrial type, B3 horizontal foot mounting)
Core Technical Specifications
Parameter Standard Value
Type Three-phase squirrel-cage asynchronous motor (S1 continuous duty)
Energy Efficiency Rating IE3 (Premium Efficiency), conforming to IEC 60034-30-1
Rated Voltage / Frequency 380 V / 50 Hz (400 V/50 Hz, 460 V/60 Hz customizable)
Power (160M-6 standard) 7.5 kW
Speed ~980 rpm (50 Hz load speed)
Protection Rating IP55 (dustproof and water-resistant)
Insulation / Temperature Rise F-class insulation, assessed according to B-class temperature rise
Cooling Method IC411 (self-ventilated)
Installation Method IM B3 (horizontal foot mounting, standard)
Bearings Original imported brand deep groove ball bearings, lifetime lubrication
Junction Box 4*90° Rotation facilitates on-site wiring
Applicable Environment and Certifications
  • Ambient Temperature: -20°C to +40°C
  • Altitude: ≤1000 m
  • Relative Humidity: ≤95% (non-condensing)
  • Certifications: CE, IEC, GB, etc.
  • Applications: Suitable for general industrial scenarios including fans, pumps, compressors, textile machinery, water treatment, and HVAC systems
  • Material: Cast iron base, high-strength structure, low vibration, low noise
Supplementary Notes

The "O" in "16OMA6" is a common typo; it should be the number 0, i.e., 160MA6.

This model is a popular Honeywell HME3-GS series model and is not discontinued.

Specific configuration (whether encoder/brake is included) is required to obtain accurate gross weight and volume; the standard bare 160M-6 weighs approximately 110 kg.

Procurement and Safety Information
  • A dedicated inverter version (V series) is available for inverter drive conditions
  • It is strictly forbidden to open the cover for operation when power is not off and motor is not discharged
  • When selecting a model, confirm: voltage, frequency, power, speed, installation method, protection level, encoder/brake requirements, and environmental conditions
