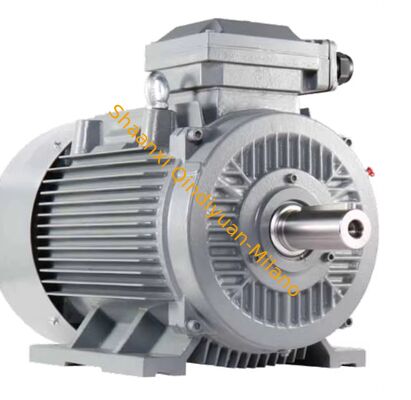

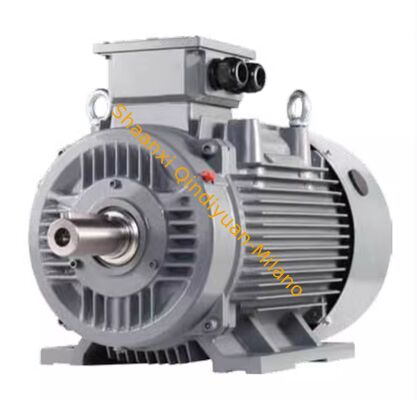

Honeywell HME3‑132SA‑2‑GS Industrial Motors 7.5KW 10HP IE3 With IP55 Protection

1 pcs
MOQ
Negotiable
Price
Honeywell HME3‑132SA‑2‑GS Industrial Motors 7.5KW 10HP IE3 With IP55 Protection
Features Gallery Product Description Chat Now
Features
Specifications
Mountingtype: Foot-mounted / Flange-mounted
Speed: 750 RPM To 3600 RPM
Phase: Three-phase
Dutycycle: S1 (Continuous)
Insulationclass: Class F / Class H
Efficiency: IE2 To IE4
Protectionrating: IP54 / IP55 / IP65
Frequency: 50 Hz / 60 Hz
Productname: Industrial Motors
Material: Cast Iron / Aluminum Housing
Voltage: 220V To 690V
Powerrating: 0.5 KW To 500 KW
Coolingmethod: TEFC (Totally Enclosed Fan Cooled)
Framesize: 56 To 355 Mm
Application: Pumps, Compressors, Conveyors, Fans
Highlight:

HME3‑132SA‑2‑GS

,

Industrial Motors 10HP

,

Honeywell Motors 7.5KW
Basic Infomation
Brand Name: Honeywell
Certification: Brand new original
Model Number: HME3‑132SA‑2‑GS
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000 pcs
Product Description
Honeywell HME3-132SA-2-GS 7.5KW IE3 Ultra-High Efficiency Industrial Motor
High-performance IE3 ultra-high efficiency industrial motor designed for demanding applications with reliable operation and energy savings.
Electrical Specifications (380V/50Hz)
Specification Value
Model HME3-132MA4-GS
Power Rating 7.5kW (10HP)
Number of Poles / Synchronous Speed 4P / 1500rpm
Rated Speed Approximately 1460rpm
Rated Current Approximately 15.5A
Efficiency ≥ 88.7% (IE3 Ultra-High Efficiency)
Power Factor Approximately 0.83
Insulation / Temperature Rise Class F insulation, Class B temperature rise (120K)
Protection Rating IP55 (dustproof and waterproof)
Cooling Method IC411 (self-ventilated)
Overload Capacity 150% of rated current, continuous for 60s
Starting Torque / Rated Torque ≥ 2.0 times
Maximum Torque / Rated Torque ≥ 2.2 times
Moment of Inertia Approximately 0.045 kg·m²
Weight Approximately 90 kg
Mechanical Specifications & Installation
Specification Value
Frame Size 132M (cast iron frame)
Installation Method B3 (horizontal, foot mounting)
Shaft Extension Single key shaft, D=38mm, E=80mm
Junction Box 4*90° rotatable, IP55 rated
Bearings Front and rear standard international brand deep groove ball bearings
Operating Environment -20℃ to +40℃, altitude ≤1000m, humidity ≤95% (non-condensing)
Model Designation Breakdown
Code Description
HME3 HME series IE3 high-efficiency motor
132 Frame center height 132mm
M Frame length (medium frame)
A Core length code
4 4 poles
GS General standard design
Compatibility & Applications
Compatible Inverter: Directly matches Honeywell HD660-T-0007-B (7.5kW) frequency drive
Typical Applications:
  • Fans and blowers
  • Pumps and compressors
  • Conveyor systems
  • Mixers and agitators
  • Packaging machinery
  • Textile machinery
  • Water treatment equipment
