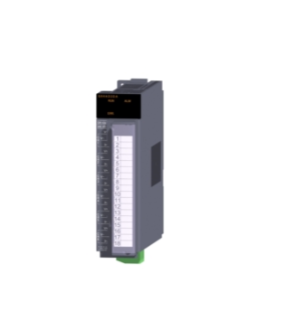

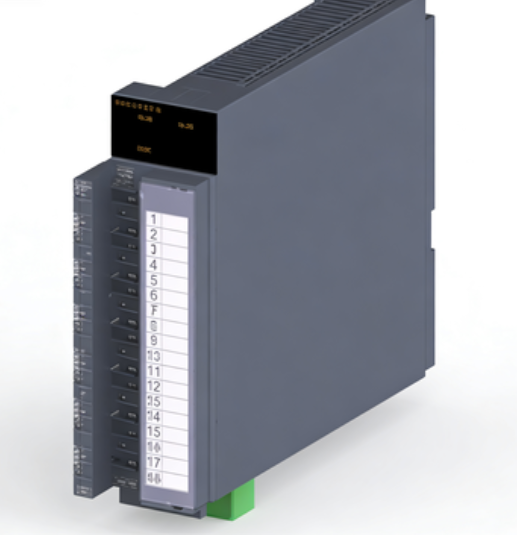

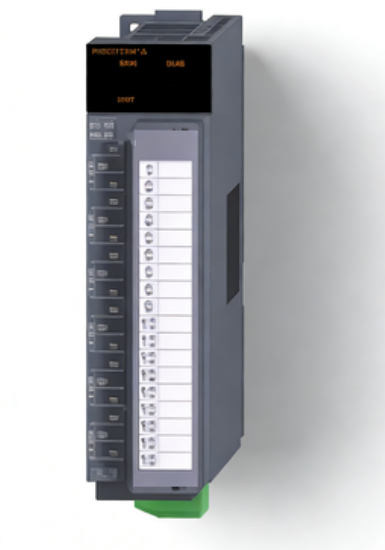

MITSUBISHI Q64TD MELSEC-Q Series Temperature Input Unit

1
MOQ
Negotiable
Price
MITSUBISHI Q64TD MELSEC-Q Series Temperature Input Unit
Features Gallery Product Description Chat Now
Features
Specifications
Points: 40 (24DI+16DO)
Manufacturer: Siemens
Output Method: Relay
Supply Voltage Type: AC
Condition: New Original With Sealed
Number_of_Inputs: 14
Weight: 300 G
Actual Value: Negotiabled Price
Model: S7-1200
Output Points: 16DO
Input_Voltage: 24 V DC
Output Typt: Relay
Application: Oil And Gas Factory
Number_of_Outputs: 10
Memory: 50 KB
Highlight:

MELSEC-Q temperature input unit

,

Mitsubishi PLC temperature module

,

Q64TD temperature input module
Basic Infomation
Place of Origin: china
Brand Name: MITSUBISHI
Model Number: Q64TD
Document: 52857c14-1121-11e1-98c9-002...ty.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
MITSUBISHI Q64TD MELSEC-Q Series Temperature Input Unit
The MELSEC-Q series temperature input unit is an insulation analog unit specifically designed for process control applications, featuring 4-channel thermocouple input capability.
Key Features
  • 4-channel temperature input unit for precise process control
  • Thermocouple input interface with channel-to-channel isolation
  • Heater burnout detection function for enhanced safety
  • CE and UL certified for international compliance
  • 40ms per channel temperature conversion speed
  • 18-point terminal block for secure external wiring
  • RoHS 6 compliant for environmental safety
Product Specifications
Number of Channels
4 channels
Input Type
Thermocouple
Conversion Speed
40ms per channel
Terminal Type
18-point screw terminal block (M3)
Detailed Technical Specifications
Specification Details
Number of Channels 4 channels
Output Format 16-bit signed binary (-2,700 to 18,200)
Thermocouple Standard JIS C1602-1995 compliant
Conversion Speed 40 ms per channel
Insulation Method Transformer insulation between thermocouple input and sequencer power supply, and between thermocouple input channels
Disconnection Detection Yes (independently for each channel)
External Connection 18-point screw terminal block (M3 screw)
Occupied I/O Points 16 points (intelligent 16 points)
5V DC Current Consumption 0.50 A
Dimensions (H × W × D) 98 mm × 27.4 mm × 112 mm
Weight 0.25 kg
Applications
Ideal for reading temperature data in industrial process control systems, manufacturing environments, and temperature monitoring applications where precise thermocouple input measurement is required.
