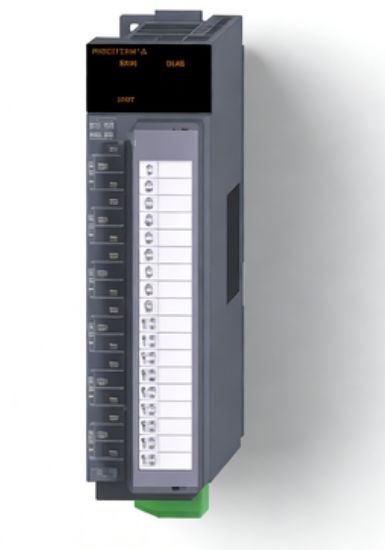

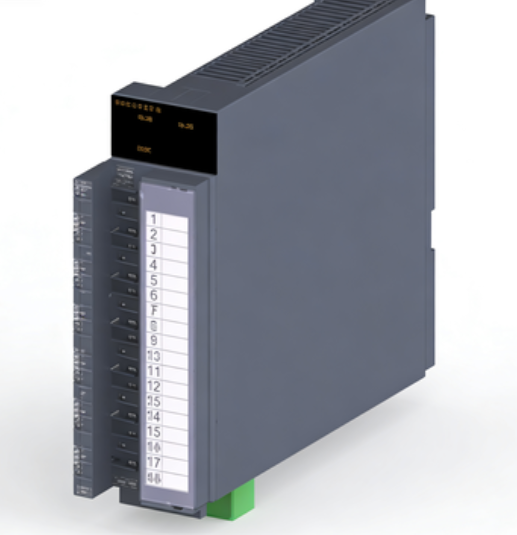

MITSUBISHI Q64ADH Analog Input Module

1. Product Overview

2. Product Advantages & Core Features

• Ultra-fast Conversion Speed


  20 μs per channel, ensuring rapid and accurate signal acquisition for high-dynamic processes.
• Multi-range Input Flexibility


  Supports voltage (-10~10V, 0~10V, 0~5V, 1~5V) and current (0~20mA, 4~20mA) inputs, compatible with standard industrial sensors.
• High-resolution & Precision


  16-bit resolution, with digital output ranges up to -20000~20000, delivering accurate measurement for critical applications三菱電機 Mitsubishi Electric.
• Strong Anti-interference Design


  Built-in noise filtering and channel-to-channel isolation, stable operation in harsh electromagnetic environments.
• Compact & Easy Integration


  Narrow 27.4mm width, plug-in mounting for Q-series PLC backplane, reducing cabinet space and wiring complexity.
• User-friendly Configuration


  Software-configurable input ranges and scaling functions, no hardware jumpers required for setup.

3. Technical Parameters

4. Application Industries & Scenarios

Main Application Industries

Scene Description

• Industrial Control Cabinet




  Mounted on DIN rail or PLC backplane, integrated with Q-series CPU and other modules for centralized control.



  industrial control cabinet with Mitsubishi Q series PLC



• Professional Warehouse Storage




  Sealed in anti-static packaging, stored in dry, temperature-controlled warehouses to ensure product reliability.

  industrial electronic components
