MITSUBISHI Q68ADV PLC Q Series 8 channel analog input module voltage

1
MOQ
Negotiable
Price
MITSUBISHI Q68ADV PLC Q Series 8 channel analog input module voltage
Features Gallery Product Description Chat Now
Features
Specifications
Output Typt: Relay
MountingType: DIN Rail Or Panel Mount
ScanTime: Typically 1 To 10 Ms
Part Type: Sysmac CPM2A
ExpansionCapability: Modular Expansion Available
CommunicationProtocols: Ethernet/IP, Modbus, Profibus, DeviceNet
Model: CP1L-M40DR-A
Highlight:

Mitsubishi Q68ADV PLC module

,

Q Series analog input module

,

8 channel voltage PLC module
Basic Infomation
Place of Origin: china
Brand Name: MITSUBISHI
Model Number: Q68ADV
Document: 52857c14-1121-11e1-98c9-002...ty.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description

MITSUBISHI Q68ADV

8 Channel Voltage Analog Input Module for MELSEC-Q Series PLC

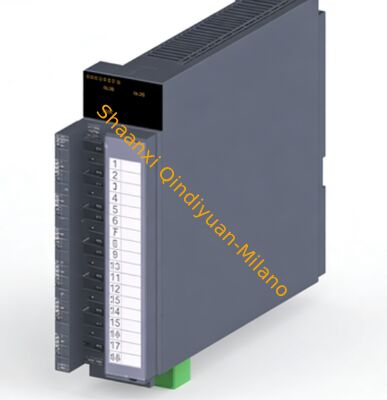

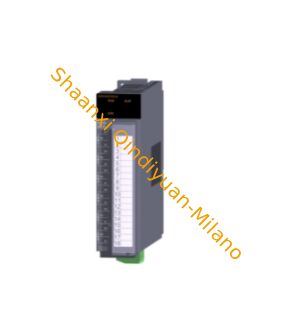

Q68ADV Module

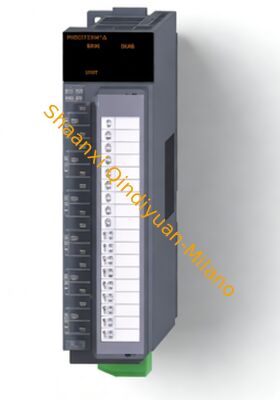

Module Terminal View

Product Overview

The Q68ADV is an exclusive voltage-only analog-to-digital conversion expansion module designed for Mitsubishi MELSEC-Q series PLC racks. It collects analog voltage signals from industrial field transmitters, sensors and measuring instruments, and converts continuous analog voltage signals into digital data readable by the PLC CPU. Equipped with 8 independent voltage input channels, it supports multi-range voltage signal collection and high-speed sampling, serving as the core signal acquisition unit for process monitoring, closed-loop regulation and precise measurement systems.

Key Advantages (Core Features)

  1. 8 Independent Voltage Input Channels

    Software-selectable multi voltage ranges (-10~10V, 0~10V, 0~5V, 1~5V), compatible with most standard industrial voltage transducers.
  2. High-Speed & Dual Resolution Modes

    Ultra-fast conversion speed of 80μs per channel; switchable normal/high resolution modes for balancing response speed and measuring precision.
  3. High Measuring Accuracy

    Basic full-scale accuracy within ±0.1%; built-in temperature drift correction function reduces thermal error to ±0.3% FS for stable long-term operation.
  4. Photocoupler Isolation Design

    Isolation between external signal terminals and PLC internal power (500V AC withstand for 1 minute), effectively blocking electromagnetic interference from field equipment.
  5. Diagnostic LED Indicators

    Module RUN/ERROR LED and channel status indicators for quick wiring troubleshooting and fault localization.
  6. Standard Q-Series Form Factor

    Compact rack-mount design, occupies 16 I/O allocation points, direct plug-in installation on Q series base unit without extra wiring modification.
  7. Wide Environmental Adaptability

    Stable performance under 0~55°C operating temperature, supports continuous 24/7 factory operation.

Technical Specifications

表格



Parameter Detailed Specification
Model Q68ADV
Compatible Series MELSEC-Q Series PLC
Input Type Voltage-only analog input, 8 channels
Software-Selectable Voltage Ranges -10 ~ +10VDC / 0 ~ 10VDC / 0 ~ 5VDC / 1 ~ 5VDC
Absolute Maximum Input Voltage ±15VDC
Input Impedance Approx. 1 MΩ per channel
Conversion Speed 80μs per channel; +160μs extra if temperature drift correction enabled
Resolution Modes Normal: -4000 ~ 4000

High Resolution: -16000 ~ 16000
Basic Accuracy (25°C) Within ±0.1% full scale
Accuracy with Temp Correction Within ±0.3% full scale
Isolation Method Photocoupler isolation (I/O terminals ↔ PLC internal power); No isolation between analog channels
Withstand Voltage 500V AC, 1 minute between external terminals and PLC power circuit
Terminal Block 18-point M3 screw terminal block
Internal Power Draw (5VDC from PLC base) 0.64 A
Occupied PLC I/O Points 16 points
Dimensions (W × H × D) 27.4 mm × 98 mm × 90 mm
Net Weight 0.19 kg
Operating Ambient Temp 0 ~ +55°C
Storage Temp -20 ~ +70°C
Certifications CE, UL/cUL, RoHS

Application Industries & Scenarios

1. Factory Process Automation

Collect voltage signals from pressure, temperature, flow and level transmitters for real-time production parameter monitoring and PID closed-loop control.

2. Packaging & Printing Machinery

Monitor tension sensor, speed encoder and thickness detection voltage signals for synchronized motion control and product quality inspection.

3. Hydraulic & Pneumatic Equipment

Detect proportional valve control voltage, pressure sensor output to realize precise pressure/flow regulation.

4. Water & Wastewater Treatment

Acquire analog signals from liquid level, PH value, turbidity transmitters for automatic dosing and pump interlock control.

5. Energy & HVAC Systems

Collect voltage signals of temperature/humidity sensors, air volume transmitters for building energy management and air-conditioning control.

Compliance Statement

The Q68ADV module complies with ECER (ECE R10 EMC) requirements, meets EU electromagnetic compatibility and safety directives, suitable for global industrial and mobile equipment deployment with strict EMC standards.

Warehouse Reference Description
