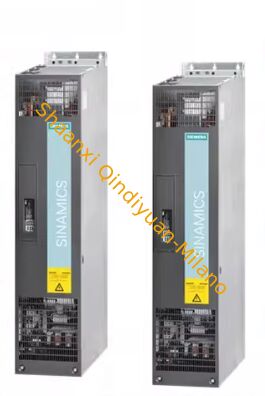

Siemens 6SL3120-1TE21-8AD0 Single Motor Module, Input: 600 V DC, Output: 3-phase 400 V AC, 18 A

1pcs
MOQ
Negotiable
Price
Siemens 6SL3120-1TE21-8AD0 Single Motor Module, Input: 600 V DC, Output: 3-phase 400 V AC, 18 A
Features Gallery Product Description Chat Now
Features
Specifications
Output Method: Transistor
Input Points: 100-2
Power Supply Voltage: 100 – 240VAC.
Power_Consumption: 5 W
Supply Voltage Type: AC
Number_of_Outputs: 10
Dimensions: 90 Mm X 100 Mm X 75 Mm
Weight: 0.5 Kg
Points: 40 (24DI+16DO)
Memory: 50 KB
Application: Oil And Gas Factory
Model: S7-1200
Output Points: 16DO
Number_of_Inputs: 14
Mounting_Type: DIN Rail
Highlight:

Siemens single motor module 18A

,

600V DC input motor module

,

3-phase 400V AC PLC module
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3120-1TE21-8AD0
Document: 6SL3120-1TE21-8AD0_datashee...en.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1week
Product Description
Siemens 6SL3120-1TE21-8AD0 Single Motor Module

Input: 600 V DC, Output: 3-phase 400 V AC, 18 A - Booksize D-format with Internal Air Cooling

Product Overview

The SINAMICS S120 Single Motor Module delivers precise motor control with advanced safety features and comprehensive connectivity options. Designed for industrial applications requiring reliable performance and flexible integration.

Key Specifications
Electrical Input
DC Link Voltage: 600 V DC (510-720 V DC range)
Output Performance
Rated Current: 18 A AC, Peak Current: 54 A AC (3 sec)
Power Rating
Rated Output: 9.7 kW @ 400 V, Base Load: 8.2 kW @ 400 V
Physical Dimensions
50 × 380 × 270 mm (W×H×D), Weight: 4.6 kg
Technical Details
Parameter Category Parameter Name Value
General Information Product Series SINAMICS S120
General Information Product Status Active
General Information Frame Size Booksize D-type
General Information Cooling Type Internal Air Cooling
Electrical Input DC Link Capacitance 110 µF
Electrical Input Overvoltage Threshold 820 V DC ±2%
Electrical Input Undervoltage Threshold 380 V DC ±2%
Electrical Input Electronics Supply 24 V DC (20.4 - 28.8 V DC), 0.85 A
Output Specifications Output Voltage 0 ... 0.717 × DC Link Voltage
Output Specifications Output Frequency 0 - 550 Hz (standard)
Output Specifications Pulse Frequency 4 kHz
Environmental Conditions Operating Temperature 0°C to +40°C (no derating)
Environmental Conditions Protection Class IP20 (UL open type)
Advanced Features
  • DRIVE-CLiQ Interface with 3 ports (includes cable)
  • Safety Integrated Functions: STO, SS1, SBC, SLS, SSM (extended)
  • Compliance: SIL 2 (IEC 61508), PL d (EN ISO 13849-1)
  • Control Modes: V/f control, Vector control, Servo control
  • Optimized Pulse Pattern for enhanced performance
  • Power Loss: 0.14 kW (Typ.) / 0.19 kW (Max.)
  • Sound Pressure Level: 60 dB at 1m distance
Certifications & Compliance

CE Mark, cULus Certification, RoHS Compliance
