Home /Products/Programmable Logic Controller PLC/Siemens 6SL3120-1TE21-8AA3 Single Motor Module, Input: 600 V DC, Output: 3-phase 400 V AC, 18 A

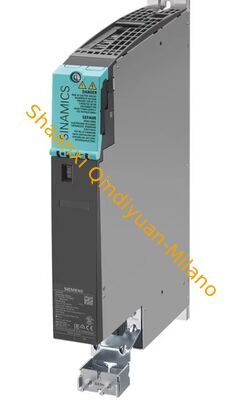

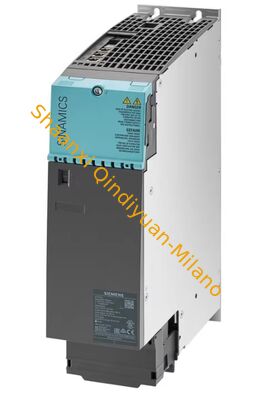

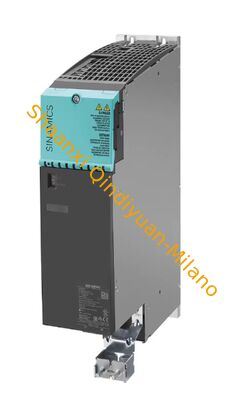

Siemens 6SL3120-1TE21-8AA3 Single Motor Module, Input: 600 V DC, Output: 3-phase 400 V AC, 18 A

1pcs
MOQ
Negotiable
Price
Siemens 6SL3120-1TE21-8AA3 Single Motor Module, Input: 600 V DC, Output: 3-phase 400 V AC, 18 A
Features Gallery Product Description Chat Now
Features
Specifications
Input Points: 100-2
Application: Oil And Gas Factory
Operating_Temperature_Range: -20 To 60 °C
Color: Normal
Manufacturer: Siemens
Mounting_Type: DIN Rail
Mpu Points: 12 (8DI + 4DO)
Model: S7-1200
Power Supply Voltage: 100 – 240VAC.
Actual Value: Negotiabled Price
Condition: New Original With Sealed
Number_of_Inputs: 14
Output Points: 20
Power_Consumption: 5 W
Part Type: Sysmac CPM2A
Highlight:

Siemens PLC motor module

,

600V DC input motor module

,

3-phase 400V AC output module
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3120-1TE21-8AA3
Document: Safety_Manufacturers_Declar...1).pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1week
Product Description
Siemens 6SL3120-1TE21-8AA3 Single Motor Module
Input: 600 V DC | Output: 3-phase 400 V AC, 18 A | Booksize Frame | Internal Air Cooling
Product Overview

SINAMICS S120 Single Motor Module designed for precise motor control applications. This industrial drive module features comprehensive safety functions and supports various control modes for optimal performance.

Technical Specifications
Parameter Category Parameter Name Value
General Information Product Series SINAMICS S120
Order Number 6SL3120-1TE21-8AA3
Product Status Discontinued (Spare Part Only)
Successor: 6SL3120-1TE21-8AA4
Frame Size Booksize
Cooling Type Internal Air Cooling
Country of Origin Germany
Includes DRIVE-CLiQ cable
Electrical Input DC Link Voltage (Nominal) 600 V DC
DC Link Voltage Range 510 - 720 V DC
DC Link Capacitance 220 µF
Overvoltage Threshold 820 V DC ±2%
Undervoltage Threshold 380 V DC ±2%
Electronics Supply 24 V DC (20.4 - 28.8 V DC), 0.85 A
Output Specifications Output Voltage 0 ... 0.717 × DC Link Voltage
Output Current (Rated, I_N) 18 A AC
Output Current (Base Load, I_H) 15.3 A AC
Output Current (Intermittent) 24 A AC (40% Duty Cycle)
Output Current (Peak, I_max) 36 A AC
Output Power (Rated) 9.7 kW @ 400 V
Output Frequency 0 - 550 Hz (standard)
Mechanical Data Dimensions (W×H×D) 50 × 270 × 200 mm
Weight Approx. 5 kg
Mounting DIN Rail or Screw Mounting
Protection Class IP20 (enclosed in cabinet)
Operating Temperature 0°C to +40°C (no derating)
Key Features
  • DRIVE-CLiQ Interface: 1 port with included cable for seamless integration
  • Safety Integrated Functions: STO (Safe Torque Off), SS1, SBC, SLS, SSM (extended)
  • Advanced Control Modes: V/f control, Vector control, Servo control
  • Motor Compatibility: Asynchronous and Synchronous Servo Motors
  • Optimized Pulse Pattern: Enhanced performance and efficiency
Standards & Approvals

CE Mark, UL Certification, CSA Certification, RoHS Compliance
