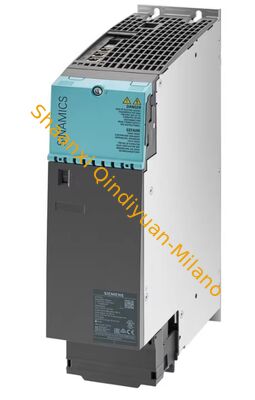

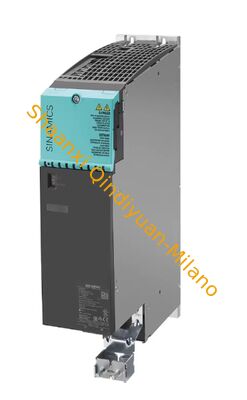

Siemens 6SL3120-1TE21-0AD0 Single Motor Module, Input: 600 V DC, Output: 3-phase 400 V AC, 9 A

1pcs
MOQ
Negotiable
Price
Siemens 6SL3120-1TE21-0AD0 Single Motor Module, Input: 600 V DC, Output: 3-phase 400 V AC, 9 A
Features Gallery Product Description Chat Now
Features
Specifications
Color: Normal
Output_Type: Relay
Number_of_Outputs: 10
Total Points: 60 Points.
Input Points: 36 Points.
Power_Consumption: 5 W
Dimensions: 90mm X 100mm X 75mm
Weight: 0.59 KG
Actual Price: Based On Offer
Part Type: Sysmac CPM2A
Memory: 50 KB
Input_Voltage: 24 V DC
Output Method: Relay
Condition: New Original With Sealed
CPU_Type: CPU 1214C
Highlight:

Siemens single motor module 600V DC

,

PLC motor module 3-phase 400V AC

,

Siemens motor module 9A output
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3120-1TE21-0AD0
Document: 6SL3120-1TE21-0AD0_datashee...en.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1week
Product Description
Siemens 6SL3120-1TE21-0AD0 Single Motor Module
Product Overview
Product SeriesSINAMICS S120
Order Number6SL3120-1TE21-0AD0
Product StatusActive Product (PM300)
DescriptionSingle Motor Module, Input: 600 V DC, Output: 3-phase 400 V AC, 9 A, Booksize D-format, Internal Air Cooling, includes DRIVE-CLiQ cable
Electrical Specifications
Input Specifications:
DC Link Voltage (Nominal)600 V DC
DC Link Voltage Range510 - 720 V DC
DC Link Capacitance110 µF
Overvoltage Threshold820 V DC ±2%
Undervoltage Threshold380 V DC ±2%
Electronics Supply Voltage24 V DC (20.4 - 28.8 V DC)
Electronics Supply Current0.75 A
Output Specifications:
Output Voltage0 ... 0.717 × DC Link Voltage
Output Current (Rated, I_N)9 A AC
Output Current (Base Load, I_H)7.7 A AC
Output Current (S6 Duty, 40%)12 A AC
Output Current (Peak, I_max)27 A AC
DC Link Current (Rated, I_d)11 A DC
Output Power (Rated)4.8 kW @ 400 V
Output Power (Base Load)4.1 kW @ 400 V
Output Frequency (V/f)0 - 600 Hz
Output Frequency (Vector)0 - 300 Hz
Output Frequency (Servo)0 - 650 Hz
Rated Pulse Frequency4 kHz
Mechanical & Physical Data
Frame SizeBooksize D-type
Width50 mm
Height270 mm
Depth200 mm
WeightApprox. 4.5 kg
MountingDIN Rail or Screw Mounting
Motor Cable LengthUp to 50 m
Conductor Cross-section (Motor)2 - 6 mm² (16 - 10 AWG)
Cooling TypeInternal Air Cooling
Cooling Air Requirement0.009 m³/s
Environmental Conditions
Operating Temperature0°C to +40°C (no derating)
Storage Temperature-25°C to +70°C
Relative Humidity5% to 95% (non-condensing)
AltitudeUp to 2000 m above sea level (no derating)
Protection ClassIP20 (enclosed in cabinet)
Sound Pressure Level (1m)60 dB
Interfaces & Features
  • DRIVE-CLiQ Interface: 1 port (included cable)
  • Safety Integrated Functions: STO, SS1, SBC, SLS, SSM (SIL2, PL d, Cat.3)
  • Pulse Pattern: Optimized Pulse Pattern
  • Control Modes: V/f control, Vector control, Servo control
Standards & Approvals
  • CE Mark: Yes
  • UL Certification: Yes
  • CSA Certification: Yes
  • RoHS Compliance: Yes
  • Safety Standard: IEC 61508 SIL2, EN ISO 13849-1 PL d/Cat.3
