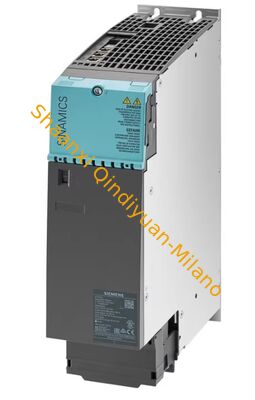

Siemens 6SL3120-1TE15-0AD0 Single Motor Module 600V DC 3 Phase 400V AC 5A

1pcs
MOQ
Negotiable
Price
Siemens 6SL3120-1TE15-0AD0 Single Motor Module 600V DC 3 Phase 400V AC 5A
Features Gallery Product Description Chat Now
Features
Specifications
Model: S7-1200
Part No: D4-16ND2
Input_Voltage: 24 V DC
Color: Normal
Dimensions: 90 X 70 X 75 Mm
Points: 40 (24DI+16DO)
Manufacturer: Siemens
Application: Spinning Machine, Conveyer Belt
CPU_Speed: 100 MHz
Supply Voltage Type: AC
Mounting_Type: DIN Rail
Power Supply Voltage: AC240-360V.
Actual Price: Negotiabled
Output Method: Transistor
Power_Consumption: 5 W
Highlight:

Single Motor Module 600V DC

,

Single Motor Module 400V AC

,

Siemens 6SL3120-1TE15-0AD0
Basic Infomation
Place of Origin: Germany
Brand Name: siemens
Model Number: 6SL3120-1TE15-0AD0
Document: 6SL3120-1TE15-0AD0_datashee...en.pdf
Payment & Shipping Terms
Delivery Time: 1WEEK
Payment Terms: T/T
Supply Ability: 20PCS 1WEEK
Product Description
Siemens 6SL3120-1TE15-0AD0 Single Motor Module - A high-performance motor control solution featuring 600V DC input, 3-phase 400V AC output, and 5A capacity in Booksize D-format with internal air cooling. Includes DRIVE-CLiQ cable for seamless integration.
Product Overview
Parameter Value
Product Series SINAMICS S120
Order Number 6SL3120-1TE15-0AD0
Product Status Active Product (PM300)
Frame Size Booksize D-type
Cooling Type Internal Air Cooling
Electrical Input Specifications
Parameter Value
DC Link Voltage (Nominal) 600 V DC
DC Link Voltage Range 510 - 720 V DC
DC Link Capacitance 110 µF
Overvoltage Threshold 820 V DC ±2%
Undervoltage Threshold 380 V DC ±2%
Electronics Supply Voltage 24 V DC (20.4 - 28.8 V DC)
Electronics Supply Current 0.75 A
Output Specifications
Parameter Value
Output Voltage 0 ... 0.717 * DC Link Voltage
Output Current (Rated, I_N) 5 A AC
Output Current (Base Load, I_H) 4.3 A AC
Output Current (S6 40% Duty, I_S6) 6.7 A AC
Output Current (Peak, I_max) 15 A AC (for 3 sec)
DC Link Current (Rated, I_d) 6.0 A DC
Output Power (Rated) 2.7 kW @ 400 V
Output Power (Base Load) 2.3 kW @ 400 V
Output Frequency (Servo) 0 - 650 Hz
Output Frequency (V/f) 0 - 600 Hz
Output Frequency (Vector) 0 - 300 Hz
Rated Pulse Frequency 4.00 kHz
Mechanical Data
Parameter Value
Width 50 mm
Height 380 mm
Depth 270 mm
Weight Approx. 4.6 kg
Mounting DIN Rail or Screw Mounting
Cooling Air Flow 0.009 m³/s
Noise Level (1m) 60.0 dB
Power Loss (Typ./Max.) 0.04 / 0.07 kW
Interfaces & Features
  • DRIVE-CLiQ Interface: 1 port (included cable)
  • Safety Integrated Functions: STO, SS1, SBC, SLS, SSM (extended)
  • Pulse Pattern: Optimized Pulse Pattern
  • Control Modes: V/f control, Vector control, Servo control
  • Max. Motor Cable Length (Shielded): 50 m
  • Max. Motor Cable Length (Unshielded): 75 m
Environmental Conditions
Parameter Value
Operating Temperature 0°C to +40°C (no derating)
Storage Temperature -25°C to +70°C
Relative Humidity 5% to 95% (non-condensing)
Altitude Up to 1000 m above sea level (no derating)
Protection Class IP20 (enclosed in cabinet)
Standards & Approvals
Parameter Value
CE Mark Yes
cULus Certification Yes
Safety Integrity Level (SIL) SIL 2 (IEC 61508)
Performance Level (PL) PL d (EN ISO 13849-1)
Category Category 3 (EN ISO 13849-1)
RoHS Compliance Yes
