Home /Products/Programmable Logic Controller PLC/Siemens 6SL3120-1TE15-0AA4 Single Motor Module Input: 600 V DC, Output: 3-phase 400 V AC, 5 A

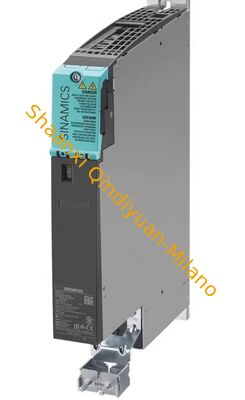

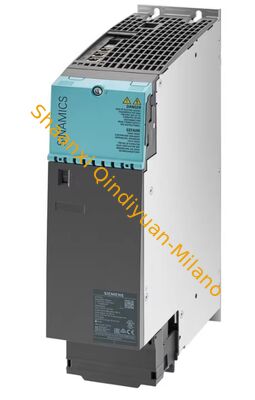

Siemens 6SL3120-1TE15-0AA4 Single Motor Module Input: 600 V DC, Output: 3-phase 400 V AC, 5 A

1pcs
MOQ
Negotiable
Price
Siemens 6SL3120-1TE15-0AA4 Single Motor Module Input: 600 V DC, Output: 3-phase 400 V AC, 5 A
Features Gallery Product Description Chat Now
Features
Specifications
Model: S7-1200
Power_Consumption: 5 W
Condition: New Original With Sealed
Part No: D2-09BDC1-1
Input_Voltage: 24 V DC
Manufacturer: Siemens
Supply Voltage Type: AC
Operating_Temperature_Range: -20°C To 60°C
Total Points: 60 Points.
Application: Oil And Gas Factory
Number_of_Outputs: 10
Points: 40 (24DI+16DO)
Mounting_Type: DIN Rail
Actual Price: Based On Offer
Output Typt: Relay
Highlight:

Siemens PLC motor module 600V DC

,

3-phase 400V AC motor module

,

5A PLC motor module with warranty
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3120-1TE15-0AA4 p
Document: SINAMICS_G120-FW4_7-SP10_EN...EN.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1WEEK
Product Description
Siemens 6SL3120-1TE15-0AA4 Single Motor Module

Input: 600 V DC, Output: 3-phase 400 V AC, 5 A - Internal Air Cooling with optimized pulse patterns and extended Safety Integrated functions.

Product Overview
Order Number6SL3120-1TE15-0AA4
Product SeriesSINAMICS S120
Product TypeSingle Motor Module (Booksize)
Product StatusDiscontinued (Spare Part Only, effective 18.01.2021)
Successor Part Number6SL3120-1TE15-0AD0 (C/D types)
Country of OriginGermany
Commodity Code85044085
Note: This product has been discontinued and is available only as a spare part. Consider the successor model 6SL3120-1TE15-0AD0 for new installations.
Electrical Specifications
DC Link Input
Nominal DC Link Voltage600 V DC
Voltage Range510 - 720 V DC
DC Link Capacitance110 µF
Overvoltage Threshold820 V DC ±2%
Undervoltage Threshold380 V DC ±2%
Electronics Supply
Supply Voltage24 V DC
Voltage Tolerance20.4 - 28.8 V DC (-15% / +20%)
Maximum Current Consumption0.85 A
Output Specifications
Nominal Output Current (I_N)5 A AC (RMS)
Base Load Current (I_H)4.3 A AC (RMS)
Peak Current (I_max)15 A AC (for 3 s)
Nominal DC Link Current (I_d)6 A DC
Output Voltage0 ... 0.717 × DC Link Voltage
Rated Output Power (@ 400 V)2.6 kW
Base Load Power (@ 400 V)2.2 kW
Output Frequency Range (Standard)0 - 550 Hz
Output Frequency Range (Servo)0 - 650 Hz
Physical & Environmental Data
Cooling & Thermal
Cooling TypeInternal Air Cooling (integrated fan)
Cooling Air Flow0.009 m³/s
Operating Temperature (No Derating)0°C to +40°C
Operating Temperature (Derated)Up to +50°C (with derating)
Storage/Transport Temperature-25°C to +70°C
Mechanical Data
Frame SizeBooksize
Width50 mm
Height270 mm
Depth200 mm
Net Weight5.44 kg
Mounting TypeDIN Rail or Screw Mounting
Protection ClassIP20 (for cabinet installation)
Interfaces & Safety Features
Communication Interfaces
  • DRIVE-CLiQ Interface: 1 port (cable included)
  • Control Interface: via CU310-2 DP/PN (separate)
  • Supported Feedback: Resolver, EnDat 2.2, BiSS, SSI, TTL Incremental
Safety Integrated Functions
  • STO (Safe Torque Off)
  • SS1 (Safe Stop 1)
  • SBC (Safe Brake Control)
  • SLS (Safely Limited Speed)
  • SSM (Safe Speed Monitor) - extended functions
Safety Certification
SIL RatingSIL 2 (IEC 61508)
Performance LevelPL d (EN ISO 13849-1)
CategoryCategory 3
Standards & Approvals
CE MarkYes
cULus CertificationYes
CSA CertificationYes
RoHS ComplianceYes (from 15.02.2013)
WEEE ComplianceYes
