Home /Products/Programmable Logic Controller PLC/Siemens 6SL3120-1TE15-0AA3 Single Motor Module, Input: 600 V DC, Output: 3-phase 400 V AC, 5 A

Siemens 6SL3120-1TE15-0AA3 Single Motor Module, Input: 600 V DC, Output: 3-phase 400 V AC, 5 A

1pcs
MOQ
Negotiable
Price
Siemens 6SL3120-1TE15-0AA3 Single Motor Module, Input: 600 V DC, Output: 3-phase 400 V AC, 5 A
Features Gallery Product Description Chat Now
Features
Specifications
Part No: F2-08AD-1
Number_of_Outputs: 10
Input_Voltage: 24 V DC
Output Points: 20
Number_of_Inputs: 14
Mpu Points: 12 (8DI + 4DO)
Mounting_Type: DIN Rail
Weight: 0.5 Kg
Actual Price: Negotiabled
Actual Value: Negotiabled Price
Manufacturer: Siemens
Operating_Temperature_Range: -20 To 60 °C
Power Supply Voltage: 100 – 240VAC.
Condition: New Original With Sealed
Dimensions: 90 X 100 X 75 Mm
Highlight:

Siemens single motor module 5A

,

PLC motor module 600V DC

,

3-phase motor module 400V AC
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3120-1TE15-0AA3
Document: SINAMICS_G120-FW4_7-SP10_EN...EN.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1week
Product Description

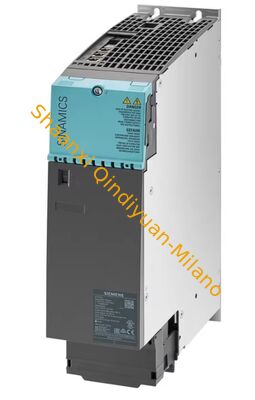

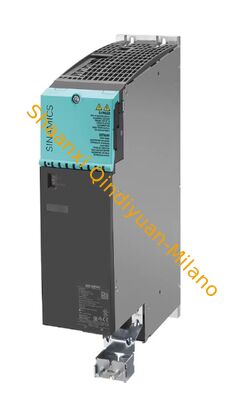

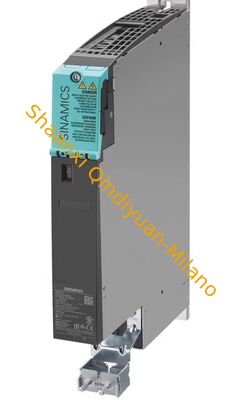

Siemens 6SL3120-1TE15-0AA3 Single Motor Module
Product Overview

SINAMICS S120 Single Motor Module with 600 V DC input and 3-phase 400 V AC output at 5 A. Booksize format with internal air cooling and integrated DRIVE-CLiQ cable.

Product Status: This item has been discontinued and is available as a spare part only. Successor model: 6SL3120-1TE15-0AA4
Technical Specifications
Electrical Input
DC Link Voltage: 600 V DC (510-720 V DC range)
Electronics Supply: 24 V DC, 0.85 A
Output Specifications
Output Current: 5 A AC rated, 10 A AC peak
Output Power: 2.7 kW @ 400 V
Output Frequency: 0-550 Hz
Mechanical Data
Dimensions: 50 × 270 × 380 mm (W×H×D)
Weight: Approximately 5.1 kg
Mounting: DIN Rail or Screw
Environmental
Operating Temperature: 0°C to +40°C
Protection Class: IP20 (cabinet enclosed)
Altitude: Up to 2000 m
Key Features
  • Integrated DRIVE-CLiQ interface with included cable
  • Safety Integrated functions: STO, SS1, SBC, SLS, SSM
  • Multiple control modes: V/f, Vector, and Servo control
  • Optimized Pulse Pattern technology
  • Temperature sensor input for KTY84-130 / PTC
  • Internal air cooling system
Compliance & Certifications
  • CE Mark compliant
  • UL certified
  • CSA certified
  • RoHS compliant
Detailed Specifications
Parameter Category Parameter Name Value
General Information Product Series SINAMICS S120
General Information Order Number 6SL3120-1TE15-0AA3
Electrical Input DC Link Capacitance 110 µF
Electrical Input Overvoltage Threshold 820 V DC ±2%
Electrical Input Undervoltage Threshold 380 V DC ±2%
Output Specifications Output Voltage 0 ... 0.717 × DC Link Voltage
Output Specifications Output Current (Base Load) 4.3 A AC
Output Specifications DC Link Current (Rated) 6 A DC
Output Specifications Rated Pulse Frequency 4 kHz
