Siemens 6SL3120-1TE13-0AD0 Single Motor Module 600 V DC 3 Phase 400V AC 3 A

1pcs
MOQ
Negotiable
Price
Siemens 6SL3120-1TE13-0AD0 Single Motor Module 600 V DC 3 Phase 400V AC 3 A
Features Gallery Product Description Chat Now
Features
Specifications
Mounting_Type: DIN Rail
Output Points: 24 Points.
Supply Voltage Type: AC
Application: Oil And Gas Factory
Manufacturer: Siemens
Part Type: Sysmac CPM2A
Points: 40 (24DI+16DO)
Weight: 0.5 Kg
Condition: New Original With Sealed
Input_Voltage: 24 V DC
CPU_Speed: 100 MHz
Input Points: 28
Number_of_Outputs: 10
Operating_Temperature_Range: -20 To 60 °C
Power_Consumption: 5 W
Highlight:

Siemens single motor module 600V DC

,

Siemens 6SL3120-1TE13-0AD0

,

Siemens 3A motor module
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3120-1TE13-0AD0
Document: 6SL3120-1TE13-0AD0_datashee...en.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 50PCS 1week
Product Description

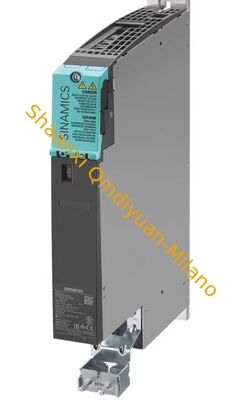

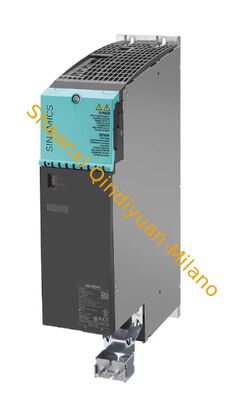

Siemens 6SL3120-1TE13-0AD0 Single Motor Module, Input: 600 V DC, Output: 3-phase 400 V AC, 3 A
Key Features: SINAMICS S120 Series, Booksize D-format, Internal Air Cooling, Optimized Pulse Pattern, Extended Safety Integrated Functions, includes DRIVE-CLiQ cable
Product Specifications
General Information
Product Series SINAMICS S120
Order Number 6SL3120-1TE13-0AD0
Product Status Active Product (PM300)
Frame Size Booksize D-type
Cooling Type Internal Air Cooling
Electrical Input Specifications
DC Link Voltage (Nominal) 600 V DC
DC Link Voltage Range 510 - 720 V DC
DC Link Capacitance 110 µF
Overvoltage Threshold 820 V DC ±2%
Undervoltage Threshold 380 V DC ±2%
Electronics Supply Voltage 24 V DC (20.4 - 28.8 V DC)
Electronics Supply Current (Max) 0.9 A
Output Specifications
Output Voltage 0 ... 0.717 * DC Link Voltage
Output Current (Rated, I_N) 3 A AC
Output Current (Base Load, I_H) 2.6 A AC
Output Current (S6 Duty, 40%) 4.0 A AC
Output Current (Peak, I_max) 9.0 A AC
DC Link Current (Rated, I_d) 3.6 A DC
Output Power (Rated) 1.6 kW @ 400 V
Output Power (Base Load) 1.4 kW @ 400 V
Output Frequency 0 - 550 Hz (standard)
Rated Pulse Frequency 4.0 kHz
Mechanical Data
Width 50 mm
Height 270 mm
Depth 200 mm
Weight Approx. 5 kg
Mounting DIN Rail or Screw Mounting
Protection Class IP20 (UL Open Type)
Environmental Conditions
Operating Temperature 0°C to +40°C (no derating)
Storage Temperature -25°C to +70°C
Relative Humidity 5% to 95% (non-condensing)
Altitude Up to 2000 m above sea level (no derating)
Sound Pressure Level (1m) 60 dB
Interfaces & Features
DRIVE-CLiQ Interface 1 port (included cable)
Safety Integrated Functions STO (Safe Torque Off), SS1, SBC, SLS, SSM (extended)
Pulse Pattern Optimized Pulse Pattern
Control Modes V/f control, Vector control, Servo control
Standards & Approvals
CE Mark Yes
UL Certification Yes
CSA Certification Yes
RoHS Compliance Yes
