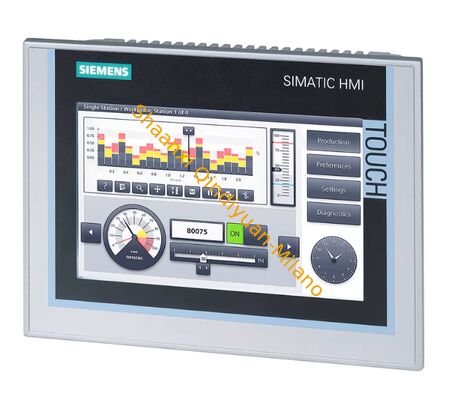

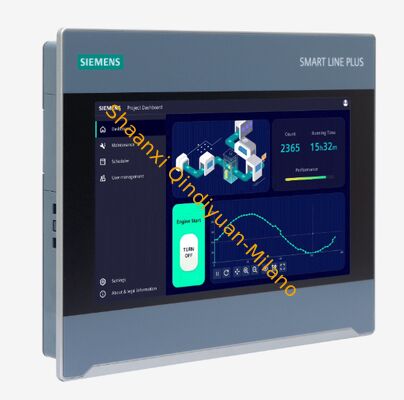

Home /Products/Programmable Logic Controller PLC/Siemens 6AV6648-0BE11-3AX0 SIMATIC HMI SMART LINE SIMATIC HMI SMART 1000 IE, SMART Panel, touch operation

Siemens 6AV6648-0BE11-3AX0 SIMATIC HMI SMART LINE SIMATIC HMI SMART 1000 IE, SMART Panel, touch operation

1pcs
MOQ
Negotiable
Price
Siemens 6AV6648-0BE11-3AX0 SIMATIC HMI SMART LINE SIMATIC HMI SMART 1000 IE, SMART Panel, touch operation
Features Gallery Product Description Chat Now
Features
Specifications
Number_of_Inputs: 14
Weight: 0.5 Kg
Mounting_Type: DIN Rail
Part Type: Sysmac CPM2A
Number_of_Outputs: 10
Output Typt: Relay
Points: 40 (24DI+16DO)
Dimensions: 90 Mm X 100 Mm X 75 Mm
Output Points: 20
Part No: SN32DR-A2+K2-16CDR+Z-DMY
Model: S7-1200
Power Supply Voltage: 100 – 240VAC.
Input_Voltage: 24 V DC
Actual Price: Based On Offer
Supply Voltage Type: AC
Highlight:

Siemens SMART Panel touch screen

,

SIMATIC HMI SMART 1000 IE PLC

,

SMART Panel with touch operation
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6AV6648-0BE11-3AX0
Document: 6AV6648-0BE11-3AX0.pdf
Payment & Shipping Terms
Delivery Time: 1WEEK
Payment Terms: T/T
Supply Ability: 10PCS 1WEEK
Product Description
Siemens 6AV6648-0BE11-3AX0 SIMATIC HMI SMART LINE Panel
Product Overview
Product Series SIMATIC HMI SMART LINE
Order Number 6AV6648-0BE11-3AX0
Product Description SIMATIC HMI SMART 1000 IE, SMART Panel, touch operation, 10" widescreen TFT display, 65536 colors, RS422/485 interface, Ethernet (RJ45) interface
Product Status Discontinued (Replaced by 6AV6648-0CE11-3AX0 V3 version)
Panel Type Smart Panel with touch operation
User Interface Resistive touch screen, 10" widescreen
Note: This product has been discontinued and is replaced by the newer 6AV6648-0CE11-3AX0 V3 version.
Display Specifications
Display Technology TFT LCD with LED backlight
Screen Diagonal 10 inches (254 mm)
Resolution 1024 × 600 pixels (WXGA)
Number of Colors 65,536 (64K colors)
Display Dimensions 222 mm × 132.5 mm
Backlight Life Approx. 50,000 hours (MTBF at 25°C)
Brightness 300 cd/m² (typical)
Viewing Angle Horizontal: ±70°, Vertical: ±50° (typical)
Performance Specifications
Processor Dual-core ARM Cortex-A7 @ 1 GHz
Operating System SMART Panel V2.0 (based on Linux)
Data Memory 128 MB
Program Memory 256 MB
Recipe Memory 40 KB (internal)
Number of Configurable Images 100
Recipe Functionality Yes (5 recipes, 20 data records per recipe, 20 entries per data record)
Communication Interfaces
Serial Interfaces 1 x RS-422/485 (supports PPI, MPI, Modbus RTU)
Ethernet Interface 1 x RJ45 (10/100 Mbps, supports S7 protocol, Modbus TCP)
USB Interfaces 1 x Host USB Type A (for data transfer, configuration, and peripherals)
Supported Protocols S7-200 SMART protocol, PPI, MPI, Modbus RTU, Modbus TCP
Max Connected PLCs Up to 4 S7-200 SMART or LOGO! controllers via Ethernet
Power Supply
Power Supply Voltage 24 V DC
Voltage Tolerance -15% / +20% (20.4 V DC to 28.8 V DC)
Power Consumption Approx. 20 W (833 mA at 24 V DC)
Power Input Connector 2-pin terminal block
Additional Features
  • Data Logging: Yes (basic functionality)
  • Alarm Functionality: Yes (supports PLC-triggered alarms)
  • Language Support: Multi-language (including Chinese, English, German, etc.)
  • Diagnostic Functions: Built-in self-diagnostics for display, touch, and communication
  • Update Capability: Yes (via USB or Ethernet)
Standards and Certifications
  • CE Mark: Yes
  • UL Certification: Yes
  • CSA Certification: Yes
  • RoHS Compliance: Yes
  • CCC Certification: Yes (China Compulsory Certificate)
Tag:

PLC Programmable Logic Controller

Industrial PLC Controller

PLC In Industrial Automation
