Home /Products/Programmable Logic Controller PLC/Siemens 6ES7235-0KD22-0XA8 Analog I/O EM 235, 4 AI, +/-10 V DC; 1 AO, +/-10 V DC, 12 bit converter, only for S7-22X CPU

Siemens 6ES7235-0KD22-0XA8 Analog I/O EM 235, 4 AI, +/-10 V DC; 1 AO, +/-10 V DC, 12 bit converter, only for S7-22X CPU

1pcs
MOQ
Negotiable
Price
Siemens 6ES7235-0KD22-0XA8 Analog I/O EM 235, 4 AI, +/-10 V DC; 1 AO, +/-10 V DC, 12 bit converter, only for S7-22X CPU
Features Gallery Product Description Chat Now
Features
Specifications
Total Points: 60 Points.
Memory_Size: 50 KB
Output Points: 20
Actual Value: Negotiabled Price
Points: 40 (24DI+16DO)
Operating_Temperature_Range: -20°C To 60°C
Part Type: Sysmac CPM2A
Power_Consumption: 5 W
Manufacturer: Siemens
Number_of_Outputs: 10
Output Method: Transistor
Model: S7-1200
Input Points: 36 Points.
Mounting_Type: DIN Rail
Part No: CKE SH-32RI/SH-32R1
Highlight:

Siemens EM 235 analog I/O module

,

PLC EM 235 12 bit converter

,

S7-22X CPU compatible I/O module
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6ES7235-0KD22-0XA8
Document: 6ES7235-0KD22-0XA8.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20pcs 1week
Product Description

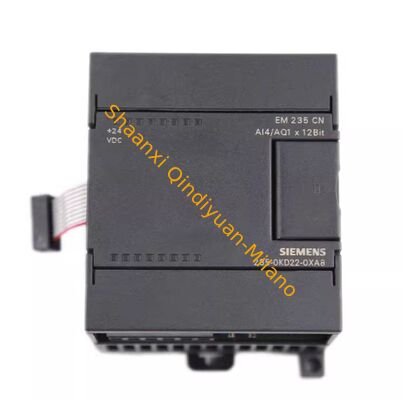

Siemens 6ES7235-0KD22-0XA8 Analog I/O Module
Product Overview
Analog I/O EM 235 module with 4 analog inputs and 1 analog output
12-bit converter resolution for precise signal processing
Compatible exclusively with S7-22X series CPUs
Product Status: Discontinued (PM410)
Technical Specifications
Analog Input Channels
ParameterSpecification
Number of Channels4 differential analog inputs
Input Signal TypesVoltage (0-50mV to ±10V), Current (0-20mA, 4-20mA)
Resolution12-bit (including sign)
Input ImpedanceVoltage: >100 kΩ, Current: 250 Ω
Conversion TimeApprox. 250 μs per channel
Accuracy (25°C)±0.3% of full scale
Accuracy (0-55°C)±0.6% of full scale
CMRR>80 dB at 50/60 Hz
Analog Output Channel
ParameterSpecification
Number of Channels1 analog output
Output Signal TypesVoltage (0-10V, ±10V), Current (0-20mA, 4-20mA)
Resolution12-bit (including sign)
Output Voltage Range0-10V DC (unipolar), ±10V DC (bipolar)
Output Current Range0-20mA DC, 4-20mA DC
Output ImpedanceVoltage: <0.5 Ω, Current: 250 Ω (max. load)
Output Accuracy (25°C)±0.5% of full scale
Response TimeApprox. 100 μs
Electrical & Mechanical Specifications
ParameterSpecification
Power Supply24 V DC (-15% / +20%) from S7-200 CPU
Power ConsumptionApprox. 2 W
IsolationChannel-to-channel: None, Module-to-bus: Optically isolated
Dimensions (W×H×D)71.2 mm × 80 mm × 62 mm
Net WeightApprox. 186 g
Mounting TypeRail-mounted (DIN rail), pluggable
Conductor Cross-section0.5-2.5 mm² (AWG 20 to AWG 14)
Environmental Conditions
ParameterSpecification
Operating Temperature-25°C to +70°C (-13°F to 158°F)
Storage Temperature-40°C to +85°C (-40°F to 185°F)
Relative Humidity10% to 95% (25°C, non-condensing)
AltitudeMax. 2000 m above sea level
Protection ClassIP20
Certifications & Standards
CE Mark: Yes (S7-200 CN version only)
UL Certification: No (CN version)
CSA Certification: No (CN version)
RoHS Compliance: Yes
Additional Features
Configurable digital filtering
Factory calibrated with user calibration capability
Overrange/underrange detection diagnostics
S7-200 expansion bus interface
