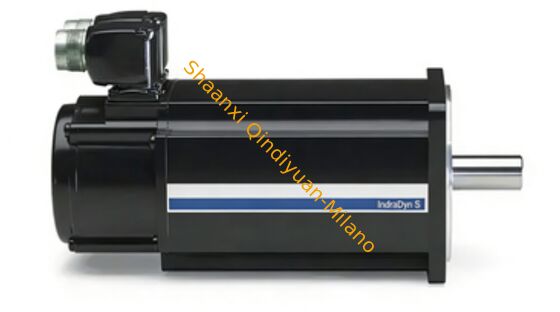

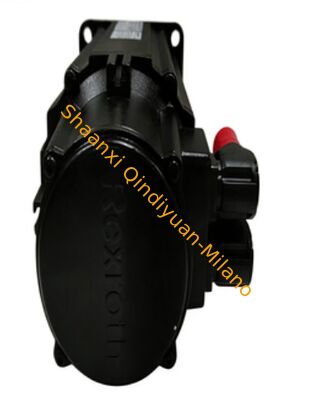

MSK050C-0600-NN-M1-UP1-NNNN Servo Motor 9000 Rpm Max Speed Multi Turn Absolute Encoder

This MSK050C high speed AC synchronous servo motor is core driving component for industrial automation machines and matched with Rexroth IndraDrive servo controllers. The motor equips multi turn absolute Hiperface encoder to achieve full digital closed loop control of position speed and torque. Users do not need to reset origin point after power cut off.

The maximum running speed reaches 9000 RPM with ultra low rotor inertia and fast dynamic response. It can drive linear sliding structures rotary tables cutting spindles conveying and positioning mechanisms. The motor supports high precision multi axis linkage electronic cam and electronic gear control logic. It widely applies to high speed automatic production lines precision processing machines and semiconductor automation equipment to realize stable high accuracy production.

1. 9000 RPM ultra high speed performance Adopts special high speed winding design to support maximum 9000 rotations per minute. It fits high frequency cutting flying shear high speed labeling and printing production processes.

2. Built in multi turn absolute encoder M1 configuration Supports multi turn absolute position feedback without battery backup for origin reset. The encoder owns 19 bit high resolution to reach arc second level positioning accuracy. It reduces repeated origin calibration work and improves overall machine operation efficiency.

3. Compact high torque density structure MSK050C C frame short body design provides stable continuous torque output within limited installation space and meets layout demand of compact automation equipment.

4. IP65 whole machine protection level The motor housing and connector own dustproof and splash proof performance with sealed keyway shaft. It can work normally in workshop environments with dust cooling liquid and humidity.

5. 240 degree rotatable power and encoder connectors Rotatable plug structure simplifies wiring arrangement in narrow control cabinet. It avoids cable damage caused by long term bending stress.

6. Natural convection cooling free of maintenance No external cooling fan required during operation with low running noise. It keeps long time continuous operation without extra maintenance cost.

7. Full compatibility with Rexroth servo drive system Perfect matching with IndraDrive Cs C M series servo drives and supports EtherCAT PROFIBUS SERCOS multiple real time industrial bus motion control.

8. Built in winding temperature monitoring protection Internal temperature sensor monitors coil temperature in real time and triggers automatic overheat protection to prevent coil burnout under overload running status.

• CNC precision processing machine tools
• High speed packaging and printing equipment
• Semiconductor and electronic component assembly machines
• Automatic manipulator and rotary indexing table equipment
• Food processing and beverage filling production lines
• Medical automation and laboratory precision testing machines
• Laser cutting and laser engraving equipment
• Textile high speed spinning and weaving machinery

• High speed spindle feeding axis for small precision CNC machines
• Flying shear and continuous printing synchronous control system
• Wafer transmission and tiny component positioning equipment for semiconductor industry
• Multi axis linkage carton forming and high speed labeling machines
• Rotary positioning axis for medical testing automation devices
