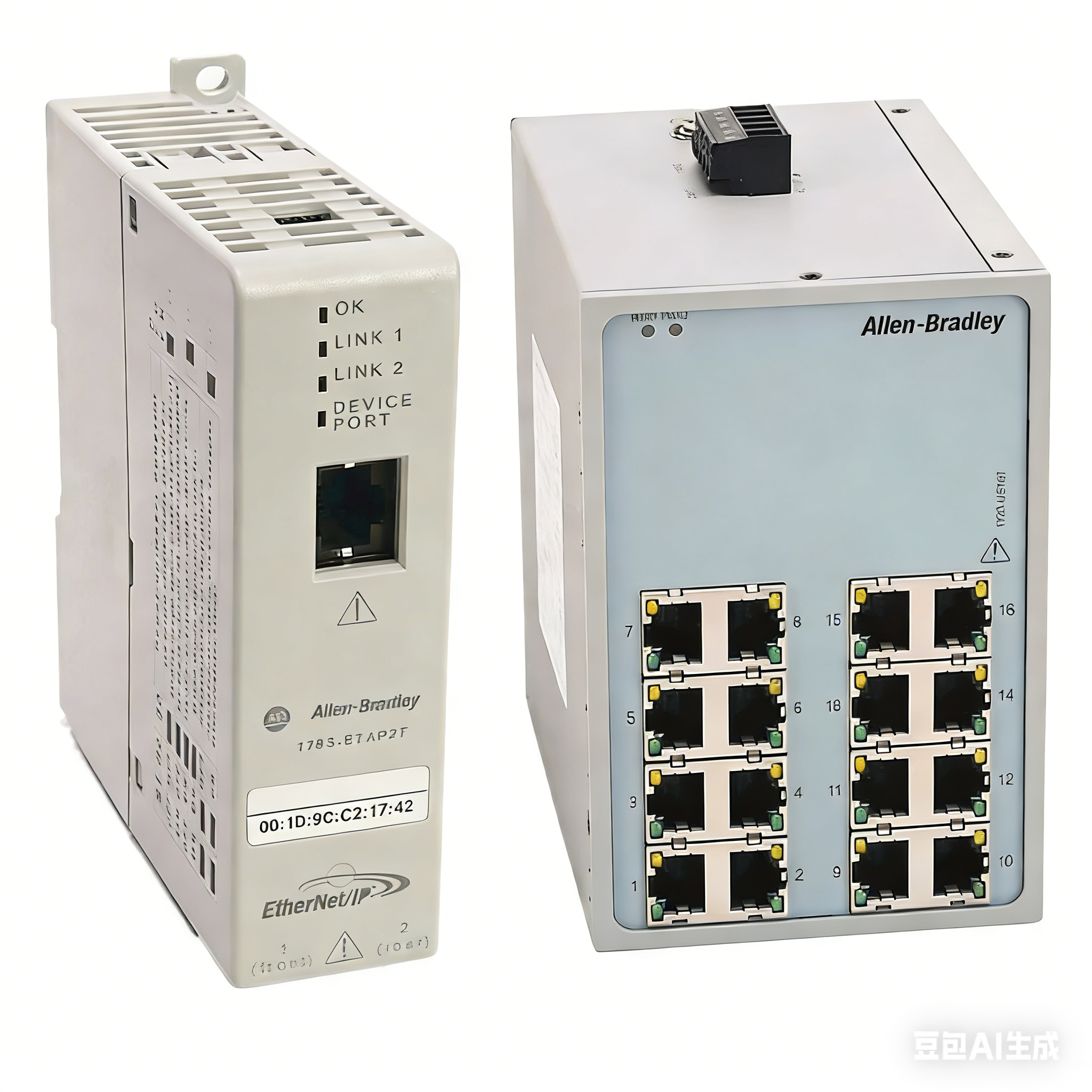

Allen-Bradley / Rockwell Automation 1783-US16T Stratix 2000 16T Port Unmanaged Switch

1PCS
MOQ
Negotiable
Price
Allen-Bradley / Rockwell Automation 1783-US16T Stratix 2000 16T Port Unmanaged Switch
Features Gallery Product Description Chat Now
Features
Specifications
CPU_Speed: 100 MHz
Memory: 50 KB
Weight: 300 G
Supply Voltage Type: AC
Input_Type: Digital And Analog
Condition: New Original With Sealed
Number_of_I_O_Points: 128
Output_Type: Relay, Transistor, Analog
Output Method: Relay
Model: S7-1200
Mounting_Type: DIN Rail
Output Typt: Relay
Actual Price: Based On Offer
Part No: E-05N
Communication_Protocols: Ethernet, Profibus, Modbus
Highlight:

Allen-Bradley unmanaged Ethernet switch

,

Rockwell Automation 16-port switch

,

Stratix 2000 PLC network switch
Basic Infomation
Place of Origin: USA
Brand Name: Allen-Bradley
Model Number: 1783-US16T
Document: 1783-US16T.pdf
Payment & Shipping Terms
Delivery Time: 5-7workday
Payment Terms: T/T
Supply Ability: 10PCS 1WEEK
Product Description
Allen-Bradley 1783-US16T Stratix 2000 16T Port Unmanaged Switch
Product Overview

The Allen-Bradley 1783-US16T Stratix 2000 is a robust 16-port unmanaged industrial Ethernet switch designed for reliable factory floor networking. This plug-and-play switch provides simple, dependable connectivity for industrial automation applications.

Note: This product has been discontinued as of March 01, 2025. Replacement product: 1783-USP16T
Technical Specifications
General Specifications
ParameterValue
Model Number1783-US16T
Product SeriesStratix 2000 Series
Product TypeUnmanaged Industrial Ethernet Switch
ManufacturerAllen-Bradley / Rockwell Automation
Network TypeEthernet
Number of Ports16
Ethernet Interface
ParameterValue
Port Type16 × RJ45 Fast Ethernet (10/100 Mbps)
Auto-negotiationYes (10/100 Mbps)
Duplex SupportFull/Half duplex
MAC Address Table8K entries
Broadcast Storm Protection10 Mbps per port threshold
Protocol SupportEtherNet/IP, TCP/IP, UDP, DHCP, HTTP, LLDP
Power Parameters
ParameterValue
Input Voltage Range12-48 VDC or 18-30 VAC (50-60 Hz)
Nominal Voltage24 VDC/AC
Max Input Current900 mA DC / 1800 mA AC
Power ConsumptionMax 8 W (6 VA)
Inrush Current4.72 A (at startup)
Power ConnectionsTwo terminal blocks (dual redundant inputs)
Physical Characteristics
ParameterValue
HousingMetal enclosure
Protection RatingIP20
Dimensions (W×H×D)88 × 135 × 146.3 mm (3.46 × 5.31 × 5.76 in)
Weight1.18 kg (2.6 lb)
Mounting OptionsDIN rail, wall mounting
Environmental Limits
ParameterValue
Operating Temperature-40°C to +70°C (-40°F to +158°F)
Storage Temperature-40°C to +85°C (-40°F to +185°F)
Relative Humidity5% to 95% (non-condensing)
Certifications
CertificationDetails
UL ListedClass I, Division 2 hazardous locations
CE MarkEMC Directive 2014/30/EU
c-UL-usCE, KC, RCM, Ex (other regional certifications)
Switch Configuration
DIP Switches
SwitchFunction
SW1Enable/Disable broadcast storm protection
SW2Reserved
LED Indicators
IndicatorFunction
PWR1Power supply 1 status
PWR2Power supply 2 status
Port Connection (Green)Port has network connection
Port Speed (Yellow)Port operating at 100 Mbps
Blink Rate42 ms (for port activity indication)
Typical Applications
  • Industrial automation systems
  • Machine-to-machine communication networks
  • Factory floor networking infrastructure
  • Simple industrial Ethernet applications requiring plug-and-play functionality
  • Environments where managed switch features are not needed
