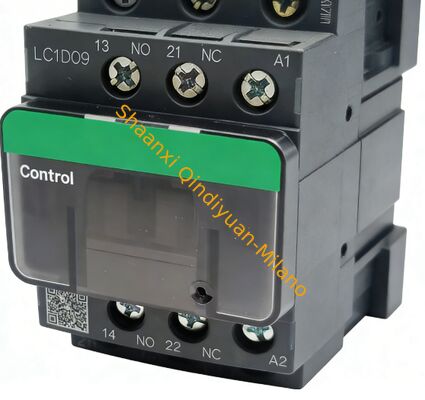

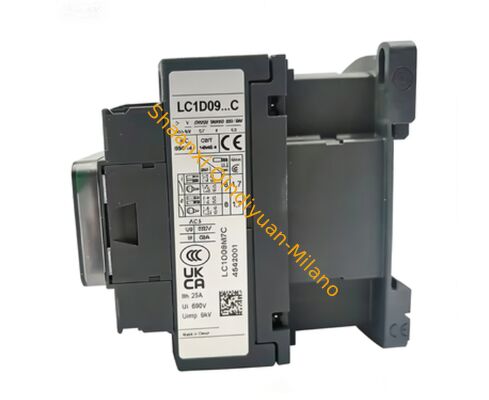

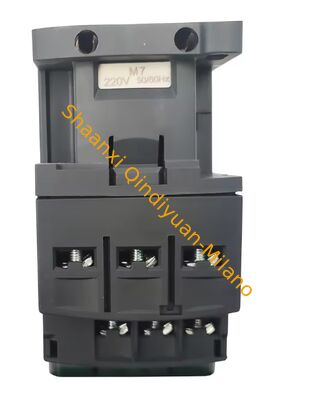

Schneider LC1D12M7C Contactors with 25 A Rated Current DIN Rail Mounting and 7.5 kW Motor Power

1
MOQ
Negotiable
Price
Schneider LC1D12M7C Contactors with 25 A Rated Current DIN Rail Mounting and 7.5 kW Motor Power
Features Gallery Product Description Chat Now
Features
Specifications
Dimensions: 90 X 100 X 75 Mm
Model: S7-1200
Input Points: 28
Number_of_Inputs: 14
Mounting_Type: DIN Rail
Color: Normal
Application: Spinning Machine, Conveyer Belt
Power_Consumption: 5 W
Power Supply Voltage: 100 – 240VAC.
Memory: 125 KB
Output Points: 24 Points.
Output Method: Transistor
Operating_Temperature_Range: -20°C To 60°C
CPU_Speed: 100 MHz
Input_Voltage: 24 V DC
Highlight:

25 A Rated Current Frequency Converter

,

DIN Rail Mounting Contactor

,

7.5 kW Motor Power PLC Module
Basic Infomation
Brand Name: Schneider
Certification: Brand new original
Model Number: LC1D12M7C
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 10000
Product Description
Schneider LC1D12M7C Frequency Converters
Product Overview
Series: TeSys Deca
Type: Contactor
Model: LC1D
Circuit Contact Type: 3 NO
Protective Cover: With
Application Areas
  • AC loads with power factor ≥ 0.95
  • Non-inductive or slightly inductive loads
  • Resistance furnaces
Usage Categories
AC-4, AC-1, AC-3, AC-3e
Electrical Specifications
Power Circuit
Parameter Specification
Number of Poles 3P
Rated Operating Voltage [Ue] ≤ 690 V AC 25...400 Hz
≤ 300 V DC
Rated Operating Current [Ie] 25 A (≤ 60°C) at ≤ 440 V AC (AC-1)
12 A (≤ 60°C) at ≤ 440 V AC (AC-3)
12 A (≤ 60°C) at ≤ 440 V AC (AC-3e)
Control Circuit Voltage [Uc] 220 V AC 50/60 Hz
Motor Power Ratings
Usage Category Voltage Power (kW)
AC-3 ≤ 500 V AC 7.5 kW
≤ 220/240 V AC 3 kW
≤ 380/400 V AC 5.5 kW
≤ 415/440 V AC 5.5 kW
≤ 660/690 V AC 7.5 kW
AC-4 ≤ 400 V AC 3.7 kW
AC-3e ≤ 500 V AC 7.5 kW
≤ 220/240 V AC 3 kW
≤ 380/400 V AC 5.5 kW
≤ 415/440 V AC 5.5 kW
≤ 660/690 V AC 7.5 kW
Current Ratings
Rated Thermal Current [Ith]
25 A (≤ 60°C) for power circuits
10 A (≤ 60°C) for signal circuits
Rated Short-Time Withstand Current [Icw]
Circuit Type Current & Duration
Power Circuit 105 A for 10 s (≤ 40°C)
210 A for 1 s (≤ 40°C)
61 A for 1 minute (≤ 40°C)
Signal Circuit 100 A for 1 s (≤ 40°C)
120 A for 500 ms (≤ 40°C)
140 A for 100 ms (≤ 40°C)
Fuse Requirements
Signal Circuit: 10 A gG (IEC 60947-5-1)
Power Circuit: 40 A gG (Type 1, ≤ 690 V) or 25 A gG (Type 2, ≤ 690 V)
Technical Specifications
Average Impedance: 2.5 mΩ at Ith 25 A 50 Hz (power circuit)
Rated Insulation Voltage [Ui]: 690 V (IEC 60947-4-1)
Overvoltage Category: III
Pollution Degree: 3
Rated Impulse Withstand Voltage [Uimp]: 6 kV (IEC 60947)
Safety & Reliability
Safety Class (B10d): 1,369,863 cycles (nominal loads) / 20,000,000 cycles (mechanical loads) per EN/ISO 13849-1
Mechanical Life: 15 million cycles
