Home /Products/Programmable Logic Controller PLC/Siemens 6ES7134-6JF00-0CA1SIMATIC ET 200SP Analog Input Module AI 8xRTD/TC 2-wire High Feature

Siemens 6ES7134-6JF00-0CA1SIMATIC ET 200SP Analog Input Module AI 8xRTD/TC 2-wire High Feature

1
MOQ
Negotiable
Price
Siemens 6ES7134-6JF00-0CA1SIMATIC ET 200SP Analog Input Module AI 8xRTD/TC 2-wire High Feature
Features Gallery Product Description Chat Now
Features
Specifications
InputVoltage: 24V DC / 120V AC / 230V AC (varies By Model)
OutputType: Relay, Transistor, Triac
Actual Value: Negotiabled Price
Output Method: Transistor
ScanTime: Typically 1 Ms To 10 Ms
MountingType: DIN Rail, Panel Mount
NumberOfInputs: Varies (typically From 8 To 256)
CommunicationProtocols: Ethernet/IP, Modbus, Profibus, DeviceNet, CANopen
Input Points: 36 Points.
Application: Oil And Gas Factory
Power Supply Voltage: AC240-360V.
Actual Price: Based On Offer
Certifications: CE, UL, RoHS
Points: 40 (24DI+16DO)
Highlight:

Siemens ET 200SP analog input module

,

PLC RTD temperature sensor module

,

SIMATIC AI 8xTC high feature
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6ES7134-6JF00-0CA1
Document: A700000006986520.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 20pcs 1week
Product Description

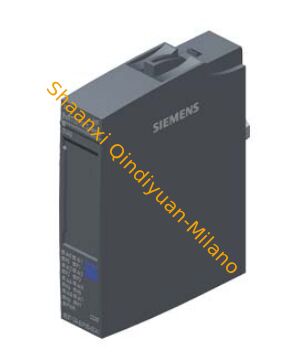

SIMATIC ET 200SP Analog Input Module AI 8xRTD/TC 2-wire High Feature
Core Specifications
Order Number6ES7134-6JF00-0CA1
Module Type8-channel Analog Input (AI) for RTD/TC 2-wire High Feature
Module Width15 mm (ET 200SP standard base unit width)
Compatible Base UnitET 200SP BU type A0, A1
Color CodeCC00
Engineering SoftwareTIA Portal V14 and above (STEP 7 Professional)
Electrical Specifications
Supply Voltage24 V DC (19.2 V DC - 28.8 V DC)
Reverse Polarity ProtectionYes
Max Supply Current35 mA @ 24 V DC
Typical Power Loss0.75 W
Analog Input Capabilities
Number of Channels8
Input TypesRTD/TC/Resistance/Voltage (2-wire connection)
Input Resistance1 MΩ
Supported ThermocouplesType B, C, E, J, K, L, N, R, S, T, U, TXK/TXK(L)
Supported RTDsNi 100, Ni 1000, Pt 100, Pt 1000, and others
Cable LengthMax. 200 m (shielded); 50 m with thermocouples
Measurement Performance
Resolution16 bit (with overrange)
Linearity Error±0.01% (voltage); ±0.1% (RTD and resistance)
Repeat Accuracy±0.05% (at 25°C)
Basic Error Limit±0.05% (at 25°C)
Common Mode Interference SuppressionMin. 90 dB
Diagnostics & Monitoring
  • Comprehensive module and channel diagnostics
  • Limit value alarm (two upper and two lower limits per channel)
  • Supply voltage monitoring
  • Wire-break detection (channel by channel)
  • Overflow/underflow detection
  • LED indicators for power, channel status, and diagnostics
Environmental Specifications
Operating Temperature-30°C to 60°C (horizontal); -30°C to 50°C (vertical)
Protection RatingIP20
Vibration Resistance5 g (10-500 Hz)
Shock Resistance15 g (11 ms half-sine)
Certifications & Compliance
  • CE, UL, cUL, ATEX, IECEx, RoHS
  • EMC Compliance: EN 61131-2, EN 61000-6-2, EN 61000-6-4
  • Industry Compliance: IEC 61131-2
Key Features
  • Hot swap capable (with proper operation)
  • Automatic encoding
  • Mechanical coding type A
  • I&M data support (I&M0 to I&M3)
  • CiR capability (reparameterization in RUN mode)
  • Tool-free spring-type terminal connections
Mounting: 35 mm standard DIN rail mounting (TS 35/7.5, TS 35/15)
Tag:

PLC Programmable Logic Controller

Industrial PLC Controller

PLC In Industrial Automation
