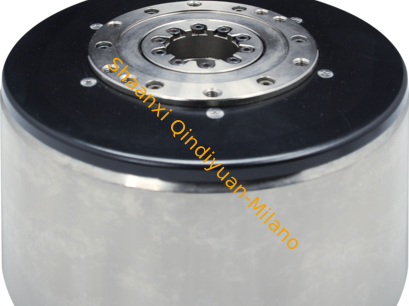

YASKAWA SGM7F-02A7A41 2N·m Σ-7 Series Inner Rotor Direct Drive Servo Motor with Hollow Shaft

1pcs
MOQ
800-950$
Price
YASKAWA SGM7F-02A7A41 2N·m Σ-7 Series Inner Rotor Direct Drive Servo Motor with Hollow Shaft
Features Gallery Product Description Chat Now
Features
Specifications
Inputvoltagerange: 100-240V AC
Warrantyperiod: 1 To 3 Years
Outputtypes: Digital Output, Analog Output
Powerconsumption: 10 W
Communication Protocol: Modbus, Ethernet/IP, Profibus
Communicationprotocols: Modbus, Profibus, Ethernet/IP, OPC UA
Output Typt: Relay
Programminglanguage: Ladder Logic, Function Block Diagram, Structured Text
Power Consumption: 3.5 VA (AC) / 2.0 W (DC)
Userinterface: HMI Touchscreen / Software Interface
Humidityrange: 5% To 95% Non-condensing
Inputvoltage: 24V DC / 110V AC / 220V AC
Numberofinputs: 16 To 64
Application: Manufacturing And Process Control
Output Points: 16DO
Highlight:

YASKAWA SGM7F servo motor 2N·m

,

Σ-7 Series hollow shaft servo motor

,

direct drive servo motor with warranty
Basic Infomation
Place of Origin: Japan
Brand Name: YASKAWA
Certification: CO
Model Number: SGM7F-02A7A41
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 20PCS 1-2weeks
Product Description
Electrical Specifications
Rated input voltage (V) Three-phase 200V AC
Rated power (kW) 0.063kW
Rated torque (N·m) 2N·m
Instantaneous maximum torque (N·m) 6N·m
Rated current (A) 1.2A
Instantaneous maximum current (A) 3.6A
Rated speed (rpm) 300rpm
Maximum speed (rpm) 600rpm
Mechanical Specifications
Moment of inertia (kg·m²) 0.00015kg·m²
Allowable radial load (N) 100N
Allowable axial load (N) 50N
Shaft configuration Hollow shaft, inner diameter 20mm
Mounting method Flange-mounted (100mm outer diameter)
Encoder type 24-bit multi-turn absolute encoder
Brake No built-in brake (brake version available on request)
Performance Specifications
Speed control range 1:1000
Speed control accuracy ±0.02%
Positioning accuracy ±5 arc seconds
Response frequency 1.5kHz
Overload capacity 300% rated torque for 3 seconds
Environmental Specifications
Operating temperature 0 to +40 degrees Celsius
Storage temperature -20 to +70 degrees Celsius
Operating humidity 20% to 80% RH (non-condensing)
Altitude Below 1000 meters, no derating required
Protection level IP44
Insulation class Class A
Safety standards CE, UL, cUL, RoHS
Cooling method Natural air cooling
Dimensions (D*H) 100mm * 65mm
Weight Approximately 2.5kg
