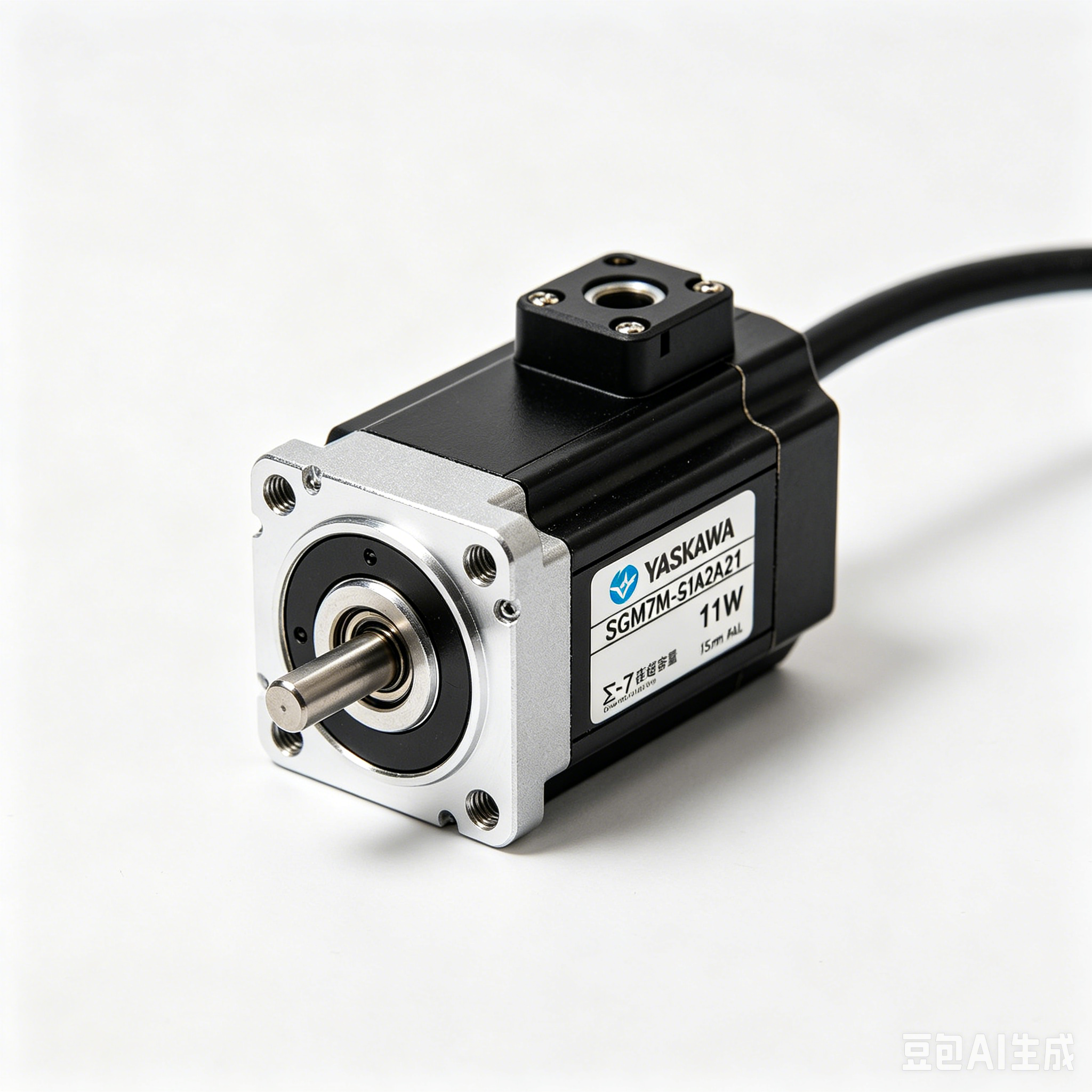

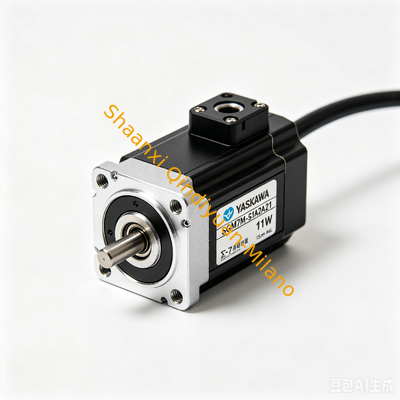

YASKAWA SGM7M-A1A2A21 11W Σ-7 Series Ultra-small Capacity Rotary Servo Motor

1pcs
MOQ
400-470$
Price
YASKAWA SGM7M-A1A2A21 11W Σ-7 Series Ultra-small Capacity Rotary Servo Motor
Features Gallery Product Description Chat Now
Features
Specifications
Inputvoltage: 24V DC / 110-240V AC
Industry: Manufacturing
Mounting: DIN Rail / Panel Mount
Integration: SCADA, MES Systems
Part No: 200-595-072-122 VM600 CPUM
Width: 22.5 Mm
Humidityrange: 5% To 95% Non-condensing
Inputtype: Digital, Analog
Safetystandards: IEC 61508, ISO 13849
Output Points: 20
Material: Industrial-grade Plastic And Metal
Ethernet Ports: 8 To 24 Ports
Communicationprotocol: Modbus, Profibus, Ethernet/IP
Output Type: Digital And Analog Outputs
Power Supply Voltage: 100 – 240VAC.
Highlight:

YASKAWA SGM7M rotary servo motor

,

Σ-7 Series servo motor with warranty

,

ultra-small capacity industrial servo motor
Basic Infomation
Place of Origin: Japan
Brand Name: YASKAWA
Certification: CO
Model Number: SGM7M-A1A2A21
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 96PCS 1-2weeks
Product Description
Electrical Specifications
Rated input voltage (V) Three-phase 200V AC
Rated power (kW) 0.011kW (11W)
Rated torque (N·m) 0.035N·m
Instantaneous maximum torque (N·m) 0.123N·m
Rated current (A) 0.22A
Instantaneous maximum current (A) 0.77A
Rated speed (rpm) 3000rpm
Maximum speed (rpm) 6000rpm
Mechanical Specifications
Moment of inertia (kg·m²) 0.0003*10⁻⁴kg·m²
Allowable radial load (N) 10N
Allowable axial load (N) 3N
Shaft configuration Straight shaft without key
Mounting method Flange-mounted (15mm square flange)
Encoder type 24-bit incremental encoder (16,777,216 pulses/rev)
Brake No built-in brake
Performance Specifications
Speed control range 1:5000
Speed control accuracy ±0.01%
Positioning accuracy ±1 pulse
Response frequency 2.0kHz
Overload capacity 350% rated torque for 3 seconds
Environmental Specifications
Operating temperature -10 to +40 degrees Celsius
Storage temperature -20 to +85 degrees Celsius
Operating humidity 20% to 80% RH (non-condensing)
Altitude Below 1000 meters, no derating required
Protection level IP65 (shaft seal included)
Insulation class UL Class B, CE Class B
Safety standards CE, UL, cUL, RoHS
Cooling method Natural air cooling
Dimensions (W*H*D) 15mm * 15mm * 55mm
Weight Approximately 0.12kg
