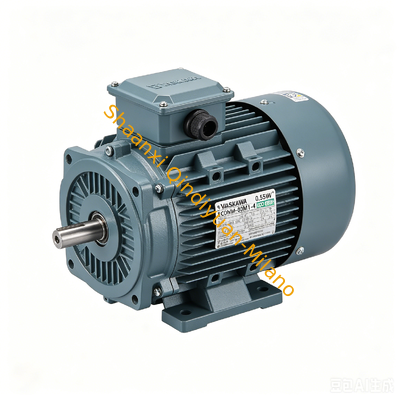

YASKAWA ECOhIM-80M1-4 0.55kW ECO Series IE3 High-efficiency Industrial Motor

1pcs
MOQ
210-260$
Price
YASKAWA ECOhIM-80M1-4 0.55kW ECO Series IE3 High-efficiency Industrial Motor
Features Gallery Product Description Chat Now
Features
Specifications
Control Type: Programmable Logic Controller (PLC)
Shockresistance: 30g, 11ms
Communicationprotocol: Modbus, Profibus, Ethernet/IP
Power: 2
Color: Normal
Operatingvoltage: Up To 36 KV
Output Points: 16DO
Softwarecompatibility: Supports SCADA And HMI Software
Installationtype: Panel Mount / DIN Rail Mount
Inputvoltagerange: 100-240V AC
Numberofoutputchannels: 16
Mounting: DIN Rail Or Panel Mount
Display: 7
Supply Voltage: 24 V DC
Output Typt: Relay
Basic Infomation
Place of Origin: Japan
Brand Name: YASKAWA
Certification: CO
Model Number: ECOhIM-80M1-4
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 98PCS 1-2weeks
Product Description
Electrical Specifications
Rated input voltage (V)
Three-phase 380V (-15%) to 480V (+10%)
Rated power (kW)
0.55kW
Rated current (A)
1.4A
Rated frequency (Hz)
50Hz
Rated speed (rpm)
1430rpm
Number of poles
4 poles
Service factor
1.1
Efficiency
85.6% (IE3)
Power factor
0.82
Mechanical Specifications
Frame size
80M
Mounting method
B3 (foot-mounted), B5 (flange-mounted), B35 (foot+flange)
Shaft diameter
19mm
Shaft length
40mm
Mounting hole spacing
125mm * 100mm
Center height
80mm
Insulation class
F class (155°C)
Temperature rise
B class (80K)
Performance Specifications
Starting torque
2.4*rated torque
Maximum torque
2.8*rated torque
Overload capacity
150% rated current for 1 minute
Environmental Specifications
Operating temperature
-15 to +40 degrees Celsius
Storage temperature
-20 to +55 degrees Celsius
Operating humidity
90% RH maximum (non-condensing)
Altitude
Below 1000 meters, no derating required
Protection level
IP55 (dust-proof, water spray-proof)
Cooling method
IC411 (self-ventilated)
Dimensions (L*W*H)
295mm * 150mm * 160mm
Weight
Approximately 10kg
