Home /Products/Industrial Control Automation/YASKAWA YVP2-80M1-4 0.55kW Variable Frequency Dedicated Three-phase Asynchronous Motor

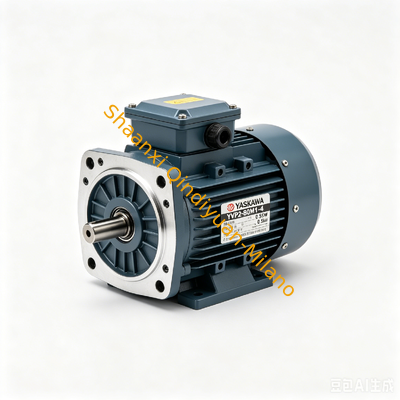

YASKAWA YVP2-80M1-4 0.55kW Variable Frequency Dedicated Three-phase Asynchronous Motor

1pcs
MOQ
180-210$
Price
YASKAWA YVP2-80M1-4 0.55kW Variable Frequency Dedicated Three-phase Asynchronous Motor
Features Gallery Product Description Chat Now
Features
Specifications
Display: 7
Manufacturer: Siemens
Softwarecompatibility: Supports SCADA And HMI Software
Power Consumption: 3.5 VA (AC) / 2.0 W (DC)
Productname: Industrial Control Automation
Inputtypes: Digital Input, Analog Input
Responsetime: 1 Ms To 10 Ms
Numberofinputs: 16 Digital Inputs
Compatibility: SCADA Systems, HMI Panels
Numberofoutputchannels: 16
Integrationcapability: SCADA, HMI, MES Systems
Userinterface: HMI Touchscreen / Remote Monitoring
Model: S7-1200
Shockresistance: 30g, 11ms
Communication Protocol: Modbus, Ethernet/IP, Profibus
Basic Infomation
Place of Origin: Japan
Brand Name: YASKAWA
Certification: CO
Model Number: YVP2-80M1-4
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 96PCS 1-2weeks
Product Description
Electrical Specifications
Rated input voltage (V)
Three-phase 380V (-15%) to 480V (+10%)
Rated power (kW)
0.55kW
Rated current (A)
1.5A
Rated frequency (Hz)
50Hz
Rated speed (rpm)
1420rpm
Number of poles
4 poles
Service factor
1.0
Efficiency
82.5% (IE2)
Power factor
0.78
Mechanical Specifications
Frame size
80M
Mounting method
B3 (foot-mounted), B5 (flange-mounted), B35 (foot+flange)
Shaft diameter
19mm
Shaft length
40mm
Mounting hole spacing
125mm * 100mm
Center height
80mm
Insulation class
F class (155°C)
Temperature rise
B class (80K)
Performance Specifications
Speed regulation range
5~100Hz (constant torque: 5~50Hz; constant power: 50~100Hz)
Starting torque
2.2*rated torque
Maximum torque
2.5*rated torque
Overload capacity
150% rated current for 1 minute
Environmental Specifications
Operating temperature
-15 to +40 degrees Celsius
Storage temperature
-20 to +55 degrees Celsius
Operating humidity
90% RH maximum (non-condensing)
Altitude
Below 1000 meters, no derating required
Protection level
IP55 (dust-proof, water spray-proof)
Cooling method
IC416 (independent axial fan cooling)
Dimensions (L*W*H)
305mm * 150mm * 160mm
Weight
Approximately 11kg
