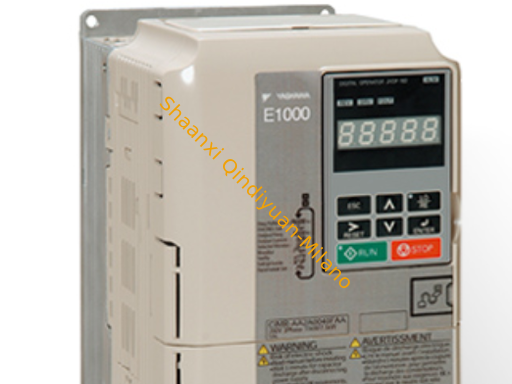

YASKAWA CIMR-EB4A0004FAA 1.5kW E1000 Series Fan and Pump Special-purpose Frequency Converter

1pcs
MOQ
450-520$
Price
YASKAWA CIMR-EB4A0004FAA 1.5kW E1000 Series Fan and Pump Special-purpose Frequency Converter
Features Gallery Product Description Chat Now
Features
Specifications
Installationtype: Panel Mounted, Rack Mounted
Control Type: Programmable Logic Controller (PLC)
Numberofoutputchannels: 16
Warranty: 1 To 3 Years
Power: 2
Operatingvoltage: Up To 36 KV
Inputvoltagerange: 100-240V AC
Actual Value: Negotiabled Price
Powerconsumption: Less Than 50W
Protectionrating: IP65
Mounting Type: DIN Rail / Panel Mount
Mountingtype: DIN Rail / Panel Mount
Inputvoltage: 24V DC / 110V AC / 220V AC
Userinterface: HMI Touchscreen, Web-based Interface
Industry: Manufacturing
Highlight:

YASKAWA E1000 frequency converter

,

1.5kW fan pump inverter

,

industrial automation frequency converter
Basic Infomation
Place of Origin: Japan
Brand Name: YASKAWA
Certification: CO
Model Number: CIMR-EB4A0004FAA
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 96PCS 1-2weeks
Product Description
Power input
Rated input voltage (V) Three-phase 380V (-15%) to 480V (+10%)
Rated input current (A) 3.4A
Rated frequency (Hz) 50Hz or 60Hz, within the allowable range of 47 to 63Hz
Power output
Rated motor capacity (kW) 1.5kW (Variable Torque)
Rated output (kVA) 2.6kVA
Rated Current (A) 3.4A
Rated output voltage (V) 0 - Input Voltage, with an error less than 5%
Output frequency (Hz) 0~400Hz
Technical control performance
Control method V/F control mode, without PG sensorless vector control (SLVC) mode
Motor type Asynchronous motor only
Speed control range 1:50 (V/F), 1:100 (SLVC)
Speed control accuracy ±0.5% (without PG vector control)
Speed fluctuation ±0.3% (without PG vector control)
Torque response <100ms (without PG vector control)
Torque control accuracy ±15%
Starting torque 1Hz 120% (without PG vector control)
Overload capacity 120% rated current for 1 minute, allowed once every 10 minutes (Variable Torque mode)
Operating control characteristics
Frequency setting method Keyboard number setting, analog quantity setting, pulse frequency setting, multi-stage speed running setting, simple PLC setting, PID setting, MODBUS RTU/Profibus communication setting, etc. Realize the combination of settings and the switching of setting channels.
Automatic voltage regulation function When the grid voltage changes, it can automatically maintain the output voltage constant.
Fault protection function Provide comprehensive fault protection functions: overcurrent, overvoltage, undervoltage, overheating, phase loss, overload, ground fault, motor stall, etc.
Speed tracking restart function Realize the smooth and impact-free startup of a rotating motor
Simulated input 2 channels, AI1: 0(2) to 10V / 0(4) to 20mA, AI2: 0 to 10V / 0(4) to 20mA
Simulation output 1 channel, AO1: 0 to 10V / 0(4) to 20mA
Digital input 6-channel opto-isolated general input, PNP/NPN selectable, maximum frequency 1kHz
Digital output 2-channel open collector output, maximum frequency 1kHz
Relay output 2-channel programmable relay outputs, contact capacity: 3A/AC250V, 1A/DC30V
Others
DC reactor Not equipped as standard, external optional
Installation method Wall-mounted installation, side-by-side installation
Brake unit No built-in brake unit, external brake unit and resistor required for braking applications
EMC filter No built-in EMC filter as standard; external C2/C3 filters available as options
Optional filters: IEC61800-3 C2, IEC61800-3 C3
Operating environment temperature -10 to 40 degrees Celsius. For use above 40 degrees Celsius, the performance will be reduced by 1% per degree up to 50°C.
Altitude Below 1000 meters, no derating required. Above 1000 meters, the rated current decreases by 1% for every 100 meters increase in altitude.
Protection level IP20
Safety regulations Meet the requirements of CE, UL, cUL, RoHS certification
Cooling method Forced air cooling
Dimensions (W*H*D) 80mm * 160mm * 120mm
Weight Approximately 1.4kg

Note: The frequency converter should be installed in a metal distribution box that meets IP20 standards.
