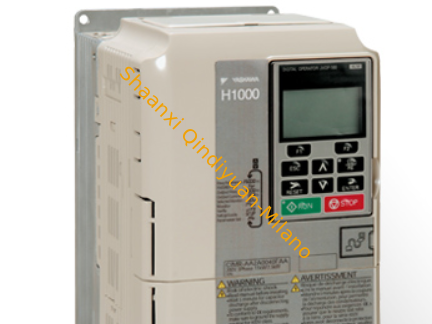

YASKAWA CIMR-HB4A0005FBC 0.75kW H1000 Series Heavy-duty High-performance Vector Inverter

1pcs
MOQ
770-900$
Price
YASKAWA CIMR-HB4A0005FBC 0.75kW H1000 Series Heavy-duty High-performance Vector Inverter
Features Gallery Product Description Chat Now
Features
Specifications
Protection: I
Output Typt: Relay
Output Type: Digital And Analog Outputs
Controltype: Programmable Logic Controller (PLC)
Color: Normal
Communicationprotocol: Modbus, Ethernet/IP, Profibus
Compatibility: SCADA Systems, HMI Panels
Power: 2
Industry: Manufacturing
Material: Industrial Grade Plastic And Metal
Numberofoutputchannels: 16
Actual Value: Negotiabled Price
Inputvoltage: 24V DC
Numberofoutputs: 16 Digital Outputs
Power Supply Voltage: 100 – 240VAC.
Highlight:

YASKAWA H1000 vector inverter

,

heavy-duty industrial inverter 0.75kW

,

high-performance vector inverter with warranty
Basic Infomation
Place of Origin: Japan
Brand Name: YASKAWA
Certification: CO
Model Number: CIMR-HB4A0005FBC
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 96PCS 1-2weeks
Product Description
Power input
Rated input voltage (V) Three-phase 380V (-15%) to 480V (+10%)
Rated input current (A) 4.8A (SHD), 3.4A (HD)
Rated frequency (Hz) 50Hz or 60Hz, within the allowable range of 47 to 63Hz
Power output
Rated motor capacity (kW) Super Heavy Duty (SHD): 0.75kW
Heavy Duty (HD): 1.5kW
Rated output (kVA) 2.6kVA
Rated Current (A) 4.8A (SHD), 3.4A (HD)
Rated output voltage (V) 0 - Input Voltage, with an error less than 5%
Output frequency (Hz) 0~400Hz
Technical control performance
Control method V/F control mode, without PG sensorless vector control (SLVC) mode, closed-loop vector control (with PG) mode, torque control mode
Motor type Asynchronous motor, permanent magnet synchronous motor
Speed control range 1:50 (V/F), 1:200 (SLVC), 1:1500 (with PG)
Speed control accuracy ±0.2% (without PG vector control), ±0.01% (with PG vector control)
Speed fluctuation ±0.1% (without PG vector control)
Torque response <10ms (without PG vector control)
Torque control accuracy ±5%
Starting torque 0.3Hz 200% (without PG vector control)
Overload capacity 200% rated current for 3 seconds, 150% rated current for 1 minute, allowed once every 5 minutes (Super Heavy Duty mode)
150% rated current for 1 minute, allowed once every 5 minutes (Heavy Duty mode)
Operating control characteristics
Frequency setting method Keyboard number setting, analog quantity setting, pulse frequency setting, multi-stage speed running setting, simple PLC setting, PID setting, MODBUS RTU/Profibus/PROFINET communication setting, etc. Realize the combination of settings and the switching of setting channels.
Automatic voltage regulation function When the grid voltage changes, it can automatically maintain the output voltage constant.
Fault protection function Provide comprehensive fault protection functions: overcurrent, overvoltage, undervoltage, overheating, phase loss, overload, ground fault, motor stall, short circuit, etc.
Speed tracking restart function Realize the smooth and impact-free startup of a rotating motor
Simulated input 3 channels, AI1/AI2: 0(2) to 10V / 0(4) to 20mA, AI3: -10 to 10V
Simulation output 2 channels, AO1/AO2: 0 to 10V / 0(4) to 20mA
Digital input 8-channel opto-isolated general input, PNP/NPN selectable, maximum frequency 1kHz
Digital output 3-channel open collector output, maximum frequency 1kHz
Relay output 3-channel programmable relay outputs, contact capacity: 3A/AC250V, 1A/DC30V
Others
DC reactor Not equipped as standard, external optional
Installation method Wall-mounted installation, push-through installation
Brake unit Built-in brake unit as standard
EMC filter No built-in EMC filter as standard; external C2/C3 filters available as options
Optional filters: IEC61800-3 C2, IEC61800-3 C3
Operating environment temperature -10 to 40 degrees Celsius. For use above 40 degrees Celsius, the performance will be reduced by 1% per degree up to 50°C.
Altitude Below 1000 meters, no derating required. Above 1000 meters, the rated current decreases by 1% for every 100 meters increase in altitude.
Protection level IP20
Note The frequency converter should be installed in a metal distribution box that meets IP20 standards.
Safety regulations Meet the requirements of CE, UL, cUL, RoHS certification, integrated STO (Safe Torque Off) SIL3/PLe
Cooling method Forced air cooling
Dimensions (W*H*D) 100mm * 180mm * 140mm
Weight Approximately 2.4kg
