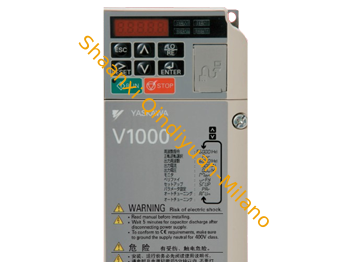

YASKAWA CIMR-VB4A0002BAA 0.4kW V1000 Series Compact High-performance Vector Inverter

Three-phase 380V (-15%) to 480V (+10%)

1.8A (HD), 2.1A (ND)

50Hz or 60Hz, within the allowable range of 47 to 63Hz

Heavy Duty (HD): 0.4kW
Normal Duty (ND): 0.75kW

0.6kVA (HD), 0.9kVA (ND)

1.8A (HD), 2.1A (ND)

0 - Input Voltage, with an error less than 5%

0~400Hz

V/F control mode, without PG sensorless vector control (SLVC) mode, closed-loop vector control (with PG) mode

Asynchronous motor, permanent magnet synchronous motor

1:50 (V/F), 1:200 (SLVC), 1:1000 (with PG)

±0.2% (without PG vector control), ±0.02% (with PG vector control)

±0.2% (without PG vector control)

<20ms (without PG vector control)

±10%

0.5Hz 200% (without PG vector control)

150% rated current for 1 minute, allowed once every 5 minutes (Heavy Duty mode)
110% rated current for 1 minute, allowed once every 5 minutes (Normal Duty mode)

Keyboard number setting, analog quantity setting, pulse frequency setting, multi-stage speed running setting, simple PLC setting, PID setting, MODBUS RTU/Profibus communication setting, etc. Realize the combination of settings and the switching of setting channels.

When the grid voltage changes, it can automatically maintain the output voltage constant.

Provide comprehensive fault protection functions: overcurrent, overvoltage, undervoltage, overheating, phase loss, overload, ground fault, motor stall, etc.

Realize the smooth and impact-free startup of a rotating motor

2 channels, AI1: 0(2) to 10V / 0(4) to 20mA, AI2: -10 to 10V

2 channels, AO1/AO2: 0 to 10V / 0(4) to 20mA

6-channel opto-isolated general input, PNP/NPN selectable, maximum frequency 1kHz

2-channel open collector output, maximum frequency 1kHz

2-channel programmable relay outputs, contact capacity: 3A/AC250V, 1A/DC30V

Not equipped as standard, external optional

Wall-mounted installation, side-by-side installation

Built-in brake unit as standard

No built-in EMC filter as standard; external C2/C3 filters available as options
Optional filters: IEC61800-3 C2, IEC61800-3 C3

-10 to 40 degrees Celsius. For use above 40 degrees Celsius, the performance will be reduced by 1% per degree up to 50°C.

Below 1000 meters, no derating required. Above 1000 meters, the rated current decreases by 1% for every 100 meters increase in altitude.

IP20

The frequency converter should be installed in a metal distribution box that meets IP20 standards.

Meet the requirements of CE, UL, cUL, RoHS certification, integrated STO (Safe Torque Off) SIL2/PLd

Forced air cooling

80mm * 160mm * 120mm

Approximately 1.5kg
