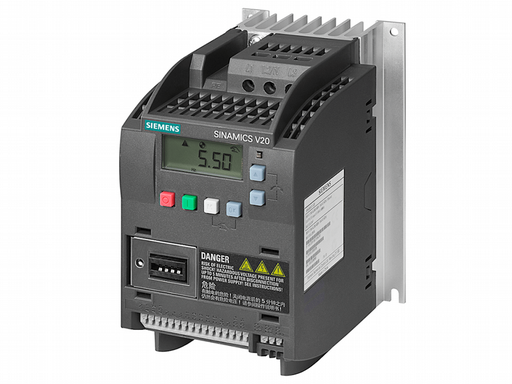

SIEMENS SINAMICS V20 6SL3210-5BE31-5UV0 15kW Compact General Purpose Frequency Converter

1
MOQ
1500-1700$
Price
SIEMENS SINAMICS V20 6SL3210-5BE31-5UV0 15kW Compact General Purpose Frequency Converter
Features Gallery Product Description Chat Now
Features
Specifications
Mounting Type: DIN Rail / Panel Mount
Programminglanguage: Ladder Logic, Structured Text
Numberofoutputs: 16 Digital Outputs
Actual Value: Negotiabled Price
Operating Voltage: 24 V AC/DC
Ip Rating: IP30 To IP67
Outputtypes: Digital Output, Analog Output
Category: Automation Equipment
Protectionrating: IP20 To IP65
Integration: SCADA, MES Systems
Power: 2
Warrantyperiod: 1 To 3 Years
Safetystandards: IEC 61508, ISO 13849
Dimensions: Varies By Model, Typically 200mm X 150mm X 100mm
Warranty: 1 To 3 Years
Highlight:

SIEMENS V20 frequency converter 15kW

,

general purpose drive with warranty

,

compact industrial automation converter
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Certification: CO
Model Number: 6SL3210-5BE31-5UV0
Payment & Shipping Terms
Packaging Details: cardboard box
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 99PCS 1-2weeks
Product Description
Power input
Rated input voltage (V) Three-phase 380V (-15%) to 480V (+10%)
Rated input current (A) 31A
Rated frequency (Hz) 50Hz or 60Hz, within the allowable range of 47 to 63Hz
Power output
Rated motor capacity (kW) 15kW
Rated output (kVA) 25kVA
Rated Current (A) 31A
Rated output voltage (V) 0 - Input Voltage, with an error less than 5%
Output frequency (Hz) 0~550Hz
Technical control performance
Control method V/F control mode, without PG sensorless vector control (SLVC) mode
Motor type Asynchronous motor only
Speed control range 1:50 (V/F), 1:100 (SLVC)
Speed control accuracy ±0.5% (without PG vector control)
Speed fluctuation ±0.3% (without PG vector control)
Torque response <100ms (without PG vector control)
Torque control accuracy ±15%
Starting torque 1Hz 150% (without PG vector control)
Overload capacity 150% rated current for 1 minute, allowed once every 5 minutes (High Overload mode)
110% rated current for 1 minute, allowed once every 5 minutes (Low Overload mode)
Operating control characteristics
Frequency setting method Keyboard number setting, analog quantity setting, pulse frequency setting, multi-stage speed running setting, simple PLC setting, PID setting, MODBUS RTU/USS communication setting, etc. Realize the combination of settings and the switching of setting channels.
Automatic voltage regulation function When the grid voltage changes, it can automatically maintain the output voltage constant.
Fault protection function Provide comprehensive fault protection functions: overcurrent, overvoltage, undervoltage, overheating, phase loss, overload, ground fault, motor stall, etc.
Speed tracking restart function Realize the smooth and impact-free startup of a rotating motor
Simulated input 2 channels, AI1: 0(2) to 10V / 0(4) to 20mA, AI2: 0 to 10V / 0(4) to 20mA (can be configured as digital input)
Simulation output 1 channel (AO1): 0(4) to 20mA
Digital input 4-channel opto-isolated general input, PNP/NPN selectable, maximum frequency 1kHz
Digital output 2-channel open collector output, maximum frequency 1kHz
Relay output None
Others
DC reactor Not equipped as standard, external optional
Installation method Wall-mounted installation, push-through installation, side-by-side installation
Brake unit Built-in brake unit as standard
EMC filter No built-in EMC filter as standard; external C2/C3 filters available as options
Optional filters: IEC61800-3 C2, IEC61800-3 C3
Operating environment temperature -10 to 40 degrees Celsius. For use above 40 degrees Celsius, the performance will be reduced by 1% per degree up to 60°C.
Altitude Below 1000 meters, no derating required. Above 1000 meters, the rated current decreases by 1% for every 100 meters increase in altitude.
Protection level IP20
Note The frequency converter should be installed in a metal distribution box that meets IP20 standards, and the top of the box should meet IP3X standards for use.
Safety regulations Meet the requirements of CE, UL, cUL certification
Cooling method Forced air cooling
Dimensions (W*H*D) 240mm * 207mm * 173mm
Weight Approximately 4.0kg
