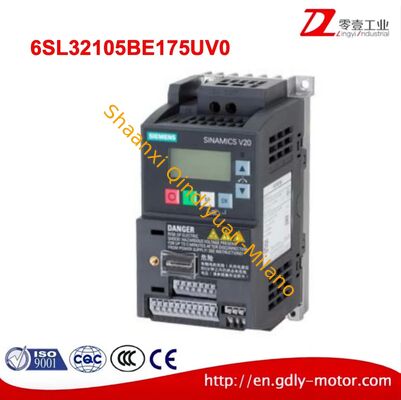

Siemens 6SL3210-5BE17-5UV0 0.75KW 380V SINAMICS V20 Series Compact General Purpose Economical AC Motor Inverter

0 - Input Voltage

2.2A (rated output current)

0.75kW

0~550Hz

V/F control mode, without PG sensorless vector control (SLVC) mode

Asynchronous motor only

Asynchronous machine 1:50 (V/F), 1:100 (SLVC)

±0.5% (without PG vector control)

±0.3% (without PG vector control)

<100ms (without PG vector control)

±15% (without PG vector control)

150% rated current for 1 minute. Allowed overload once every 5 minutes (High Overload mode)
110% rated current for 1 minute. Allowed overload once every 5 minutes (Low Overload mode)

Digital settings, analog quantity settings, pulse frequency settings, multi-stage speed running settings, simple PLC settings, PID settings, communication settings, etc. It can achieve the switching of the set combinations and set channels.

When the grid voltage changes, it can automatically maintain the output voltage constant.

Provide multiple fault protection functions: overcurrent, overvoltage, undervoltage, overtemperature, phase loss, overload, ground fault, etc.

Realize the smooth and impact-free startup of a rotating motor

12-bit (≤5mV)

No more than 1 millisecond

2 channels, AI1: 0(2) to 10V / 0(4) to 20mA, AI2: 0 to 10V / 0(4) to 20mA (can be used as digital input)

1 channel, AO1: 0(4) to 20mA

4-channel general input, opto-isolated PNP/NPN selectable, maximum frequency 1kHz

2-channel open collector output, maximum frequency 1kHz

None

None (no expansion slots available)

Support wall-mounted installation only

-10 to 40 degrees Celsius. For use above 40 degrees Celsius, the performance will be reduced (1% per degree up to 60°C)

IP20

Level 2

Naturally air-cooled

90mm * 150mm * 145.5mm

Approximately 0.93kg
