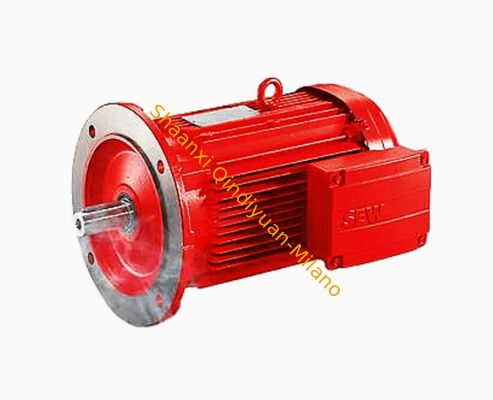

German SEW gearbox DRN132S4BE11HF SEW DRN132S4BE11HF 5.5kW IE3 Brake Motor | 400V 4‑Pole AC Motor

Core Specifications

• Power: 5.5 kW (7.5 HP)
• Voltage: 400 VAC (50 Hz) / 230/460 VAC (60 Hz)
• Pole: 4‑pole
• Speed: ~1464 rpm (50 Hz)
• Frame: 132S (short length)
• Efficiency Class: IE3 (premium high efficiency)
• Brake: BE11 spring‑loaded brake with manual release
• Protection: IP55 (enclosure)
• Weight: approx. 28.8 kg
• Mounting: Foot / C‑face flange
• Features: Thermal sensor (TF), reinforced insulation, corrosion‑resistant coating

Typical Applications

• Conveyors, roller tables, packaging machinery
• Material handling, mixing, pumping systems
• General industrial drive requiring stable braking
• • 5.5kW (7.5HP) IE3 High Efficiency: Low energy consumption, cost‑saving operation
  • Integrated BE11 Brake: Fast, safe stopping with manual release
  • 4‑pole 1464rpm: Stable speed for constant‑load applications
  • IP55 Protection: Dust‑tight and water‑resistant for harsh environments
  • Thermal Sensor (TF): Prevents overheating and extends service life
  • 132S Frame: Compact, short‑body design for easy installation
  • 400V 50Hz / 230/460V 60Hz: Global voltage compatibility


  Technical Specifications


  • Power: 5.5 kW
  • Voltage: 400V (50Hz)
  • Frame: 132S
  • Poles: 4
  • Speed: 1464 rpm
  • Brake: BE11 spring‑loaded
  • Enclosure: IP55
  • Efficiency: IE3
  • Weight: 28.8 kg
  • Mount: Foot / C‑face
